Buy Suzuki GT Parts Online


COVER (GT380A

GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

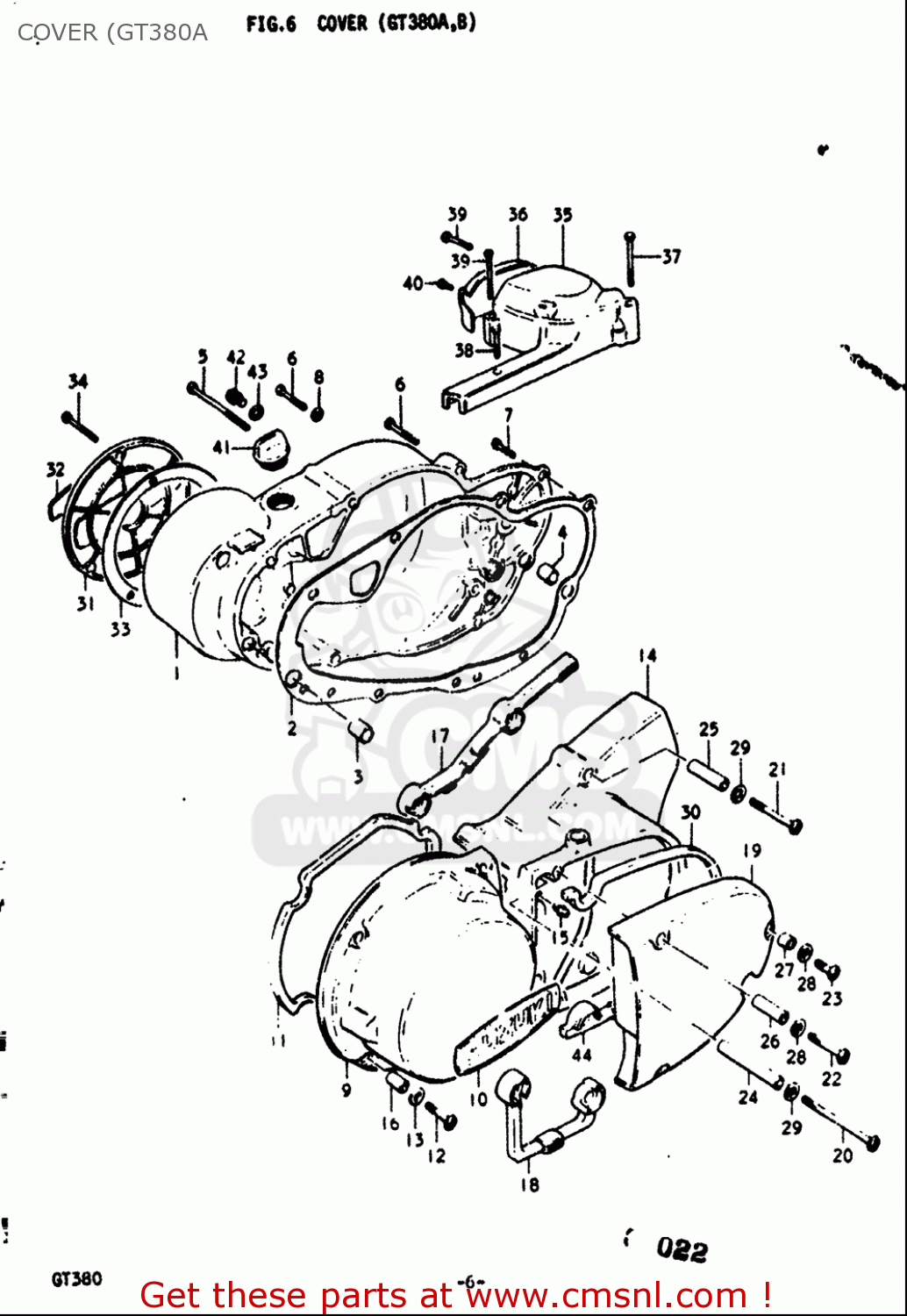

Cover (gt380a diagram GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

COVER (GT380A GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
COVER (GT380A GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
COVER (GT380A GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
1148233001
ref: 2
GASKET,CLUTCH COVER (NAS)
1148233001
€ 17.00
3
0920613004
ref: 3
PIN(10.4X13X22)
0920613004
€ 3.00
4
0421113189
ref: 4
PIN
0421113189
€ 2.50
5
0211206807
ref: 5
SCREW
0211206807
€ 3.00
6
0211206357
ref: 6
SCREW
0211206357
€ 2.50
7
0211206207
ref: 7
SCREW
0211206207
€ 2.00
8
0916006121
ref: 8
WASHER(6.5X18X2)
0916006121
€ 10.50
10
6823333000
ref: 10
EMBLEM,GENERATOR COVER
6823333000
€ 10.50
11
1148333001
ref: 11
GASKET,MAGNETO COVER (NAS)
1148333001
€ 4.00
12-1
0912506055
ref: 12-1
SCREW(6X25)
0912506055
€ 3.00
12-2
0211206257
ref: 12-2
SCREW
0211206257
€ 2.00
13
0832201067
ref: 13
WASHER
0832201067
€ 2.00
15
0835111009
ref: 15
NIPPLE
0835111009
€ 32.00
16
0918006268
ref: 16
SPACER(6.5X9X13.5)
0918006268
€ 2.00
18
1148533000
ref: 18
CUSHION,ENGINE SPROCKET
1148533000
€ 5.50
20-1
0214106858
ref: 20-1
SCREW
€ 0.00
20-2
0211206857
ref: 20-2
SCREW
0211206857
€ 2.50
21-1
0214206457
ref: 21-1
SCREW
0214206457
€ 2.00
21-2
0211206457
ref: 21-2
SCREW
0211206457
€ 2.00
22-1
0214205357
ref: 22-1
SCREW
€ 1.00
22-2
0211205357
ref: 22-2
SCREW
0211205357
€ 1.50
23-1
0214205167
ref: 23-1
SCREW
0214205167
€ 1.50
23-2
0211205167
ref: 23-2
SCREW
0211205167
€ 2.50
24
0918006063
ref: 24
SPACER
€ 0.00
25
0918006064
ref: 25
SPACER (6.4X9X33)
€ 2.50
27
0918005047
ref: 27
SPACER(5.5X8X7.5)
0918005047
€ 2.50
28
0832201057
ref: 28
WASHER
0832201057
€ 2.50
29
0832201067
ref: 29
WASHER
0832201067
€ 2.00
32
6823334000
ref: 32
EMBLEM,CONTACT BREAKER CAP
6823334000
€ 19.50
33
1149133000
ref: 33
GASKET,CONTACT BREAKER CAP (NAS)
1149133000
€ 4.50
34
0211205457
ref: 34
SCREW
0211205457
€ 1.50
37
0110705458
ref: 37
BOLT 5X45
€ 2.00
38
0150005253
ref: 38
BOLT
0150005253
€ 2.00
39
0211205357
ref: 39
SCREW
0211205357
€ 1.50
40
0211205167
ref: 40
SCREW
0211205167
€ 2.50
41-1
0925919001
ref: 41-1
PLUG
0925919001
€ 6.00
41-2
0920020810
ref: 41-2
PLUG SET
0920020810
€ 8.00
42
0912806044
ref: 42
SCREW(6X10)
0912806044
€ 1.50
43
0916806001
ref: 43
GASKET(6.2X11X1) (NAS)
0916806001
€ 1.50
