CRANKCASE
GV1200GLF2 MADURA 1986 (G) USA (E03)

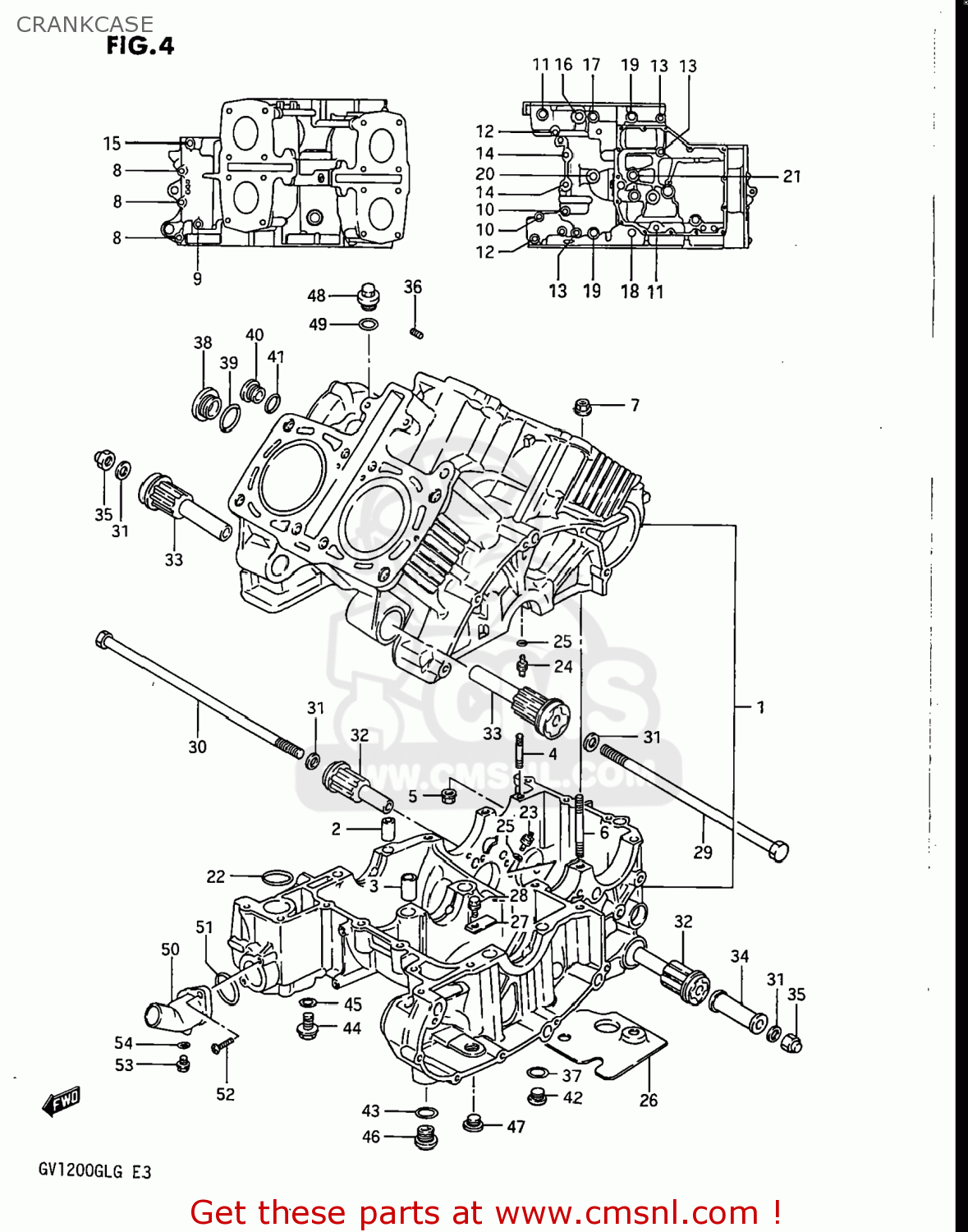

Crankcase diagram GV1200GLF2 MADURA 1986 (G) USA (E03)
CRANKCASE GV1200GLF2 MADURA 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130005860
ref: 1-1
11300-05870
CRANKCASE SET
€ 991.50
1-2
1130005862
ref: 1-2
11300-05870
CRANKCASE SET
€ 991.50
1-3
1130005870
ref: 1-3
CRANKCASE SET
€ 991.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920616002
ref: 3
PIN
€ 0.00
4
0142106508
ref: 4
STUD 6X50
€ 2.00
5
0831931068
ref: 5
08319-31067
NUT
€ 2.50
6
0142108655
ref: 6
STUD BOLT
€ 3.50
7
0831616085
ref: 7
08316-1008B
NUT 8MM
€ 3.00
8
0151706354
ref: 8
01550-0635A
BOLT 6X35
€ 2.50
9
0151706655
ref: 9
BOLT
€ 2.50
10
0151706905
ref: 10
01550-0690B
BOLT (6X90)
€ 3.50
11
0711006308
ref: 11
07130-06307
BOLT
€ 3.00
12
0910306060
ref: 12
BOLT(6X100)
€ 2.50
13
0910308094
ref: 13
09103-08182
BOLT
€ 4.50
14
0151708455
ref: 14
01550-0845A
BOLT
€ 3.00
15
0151708605
ref: 15
01550-0860A
BOLT 8X60
€ 3.50
16
0711008355
ref: 16
07130-0835B
BOLT 8X35
€ 4.00
17
0910310077
ref: 17
BOLT L:140
€ 7.50
18
0910310078
ref: 18
BOLT(10X150)
€ 8.50
19
0910310089
ref: 19
09103-10141
BOLT
€ 6.00
20
0910312010
ref: 20
BOLT
€ 0.00
21
0910312011
ref: 21
BOLT
€ 0.00
22
0928027003
ref: 22
O-RING (D:3 ID:27)
€ 3.00
23
0949320014
ref: 23
JET,OIL GALLERY
€ 8.00
24
0949332006
ref: 24
JET,OIL GALLERY(16)
€ 8.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
€ 2.00
26
1152105A00
ref: 26
PLATE,OIL SEPARATOR
€ 2.50
27
1139305A00
ref: 27
11393-20E00
MAGNET, DUST CATCH
€ 11.50
28
0151706128
ref: 28
01550-06127
BOLT
€ 2.50
29
0910410023
ref: 29
BOLT
€ 0.00
30
0910410024
ref: 30
BOLT 10X305
€ 8.00
31
0832211105
ref: 31
08322-0110A
WASHER
€ 2.50
32
1165005A00
ref: 32
BUSHING,ENGINE MOUNTING,REAR
€ 17.00
33
1166005A00
ref: 33
BUSHING,ENGINE MOUNT
€ 18.00
34
1161045410
ref: 34
SPACER,ENGINE MOUNT(L:65)
€ 11.50
35
0915910039
ref: 35
09159-10064
NUT
€ 8.50
36
0924605001
ref: 36
09246-04001
PLUG
€ 3.50
37
0916816002
ref: 37
GASKET(16X22X2) (NAS)
€ 2.00
38
0925926002
ref: 38
09259-26002-XC0
PLUG
€ 17.00
39
0928022012
ref: 39
09280-22008
O-RING
€ 1.50
40
0925920010
ref: 40
PLUG
€ 6.50
41
0928017003
ref: 41
O RING(D:3.1,ID:16.8)
€ 2.00
42
0924816008
ref: 42
PLUG
€ 4.00
43
0916814004
ref: 43
GASKET(14X19.2X2) (NAS)
€ 2.50
44
0712010165
ref: 44
BOLT
€ 0.00
45
0916810007
ref: 45
GASKET(10.1X16X1) (NAS)
€ 2.00
46
0924814004
ref: 46
09248-14010
PLUG
€ 5.00
47
0924816004
ref: 47
PLUG
€ 4.00
48
0925920011
ref: 48
PLUG
€ 0.00
49
0928017003
ref: 49
O RING(D:3.1,ID:16.8)
€ 2.00
50
1742105A00
ref: 50
CONNECTOR,WATER INLET
€ 36.00
51
0928032006
ref: 51
O RING(D:2.4,ID:31.7)
€ 2.50
52
0211206205
ref: 52
02112-0620A
SCREW
€ 2.00
53
1741514300
ref: 53
BOLT,DRAIN
€ 2.00
54
0916808008
ref: 54
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
