RIGHT HANDLE SWITCH

GV1200GLF2 MADURA 1986 (G) USA (E03)

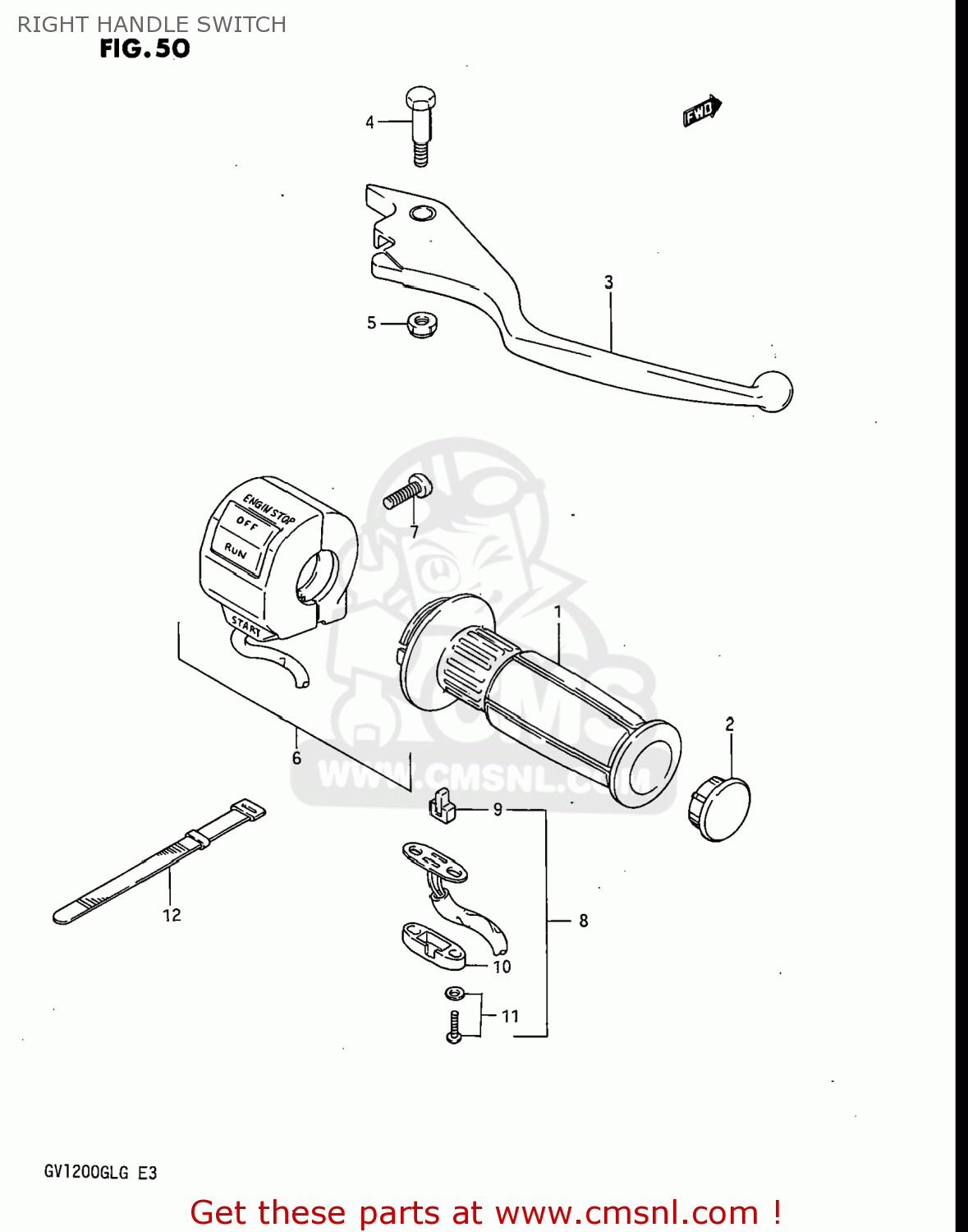

Right handle switch diagram GV1200GLF2 MADURA 1986 (G) USA (E03)

RIGHT HANDLE SWITCH GV1200GLF2 MADURA 1986 (G) USA (E03)

RIGHT HANDLE SWITCH GV1200GLF2 MADURA 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711005A00
ref: 1

GRIP,THROTTLE

€ 28.50

2

5721605A00
ref: 2

CAP,GRIP END

€ 5.00

3

5742005A10
ref: 3
57420-38B00

LEVER,BRAKE

€ 16.50

4

5743105A00
ref: 4

BOLT,LEVER

€ 8.50

5

0831921065
ref: 5
08319-2106B

NUT

€ 2.50

6

3720005A62
ref: 6

SWITCH ASSY,HANDLE RH

€ 0.00

7

0211205205
ref: 7
02112-0520B

SCREW 5X20

€ 2.50

8

5746049300
ref: 8
57460-45500

SWITCH ASSEMBLY

€ 40.00

9

5746518601
ref: 9

CONTACT,SWITCH

€ 4.50

10

5748133010
ref: 10

COVER,FR BK TERMINAL BASE

€ 19.50

11

0912503105
ref: 11
09125-03105-XC0

SCREW

€ 2.50

12

0940712402
ref: 12

CLAMP(L:120)

€ 3.00
