PILLION RIDER HANDLE

GV1200GLF2 MADURA 1986 (G) USA (E03)

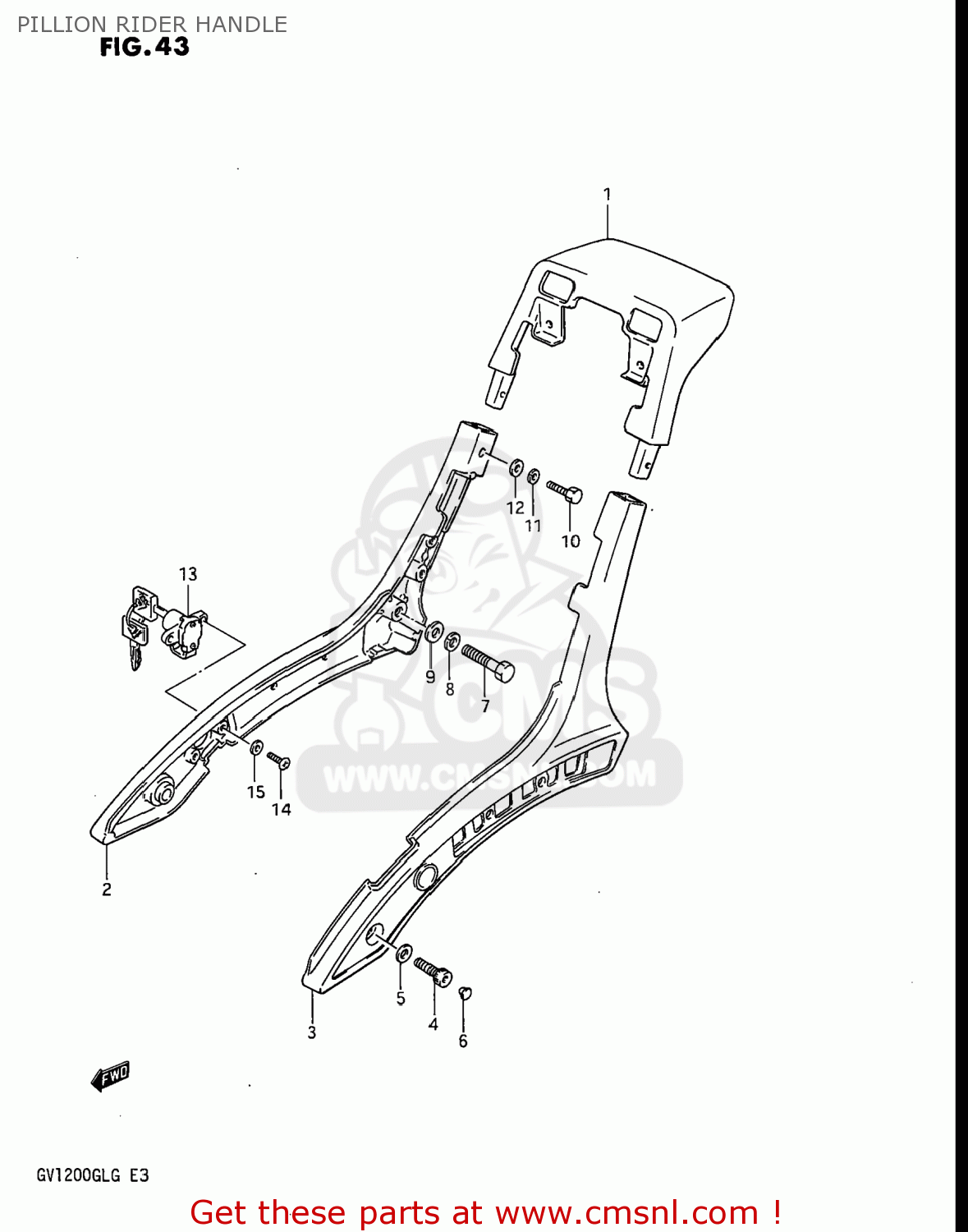

Pillion rider handle diagram GV1200GLF2 MADURA 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

4621105A00
ref: 1

HANDLE,PILLION RIDER U

€ 82.50

4621205A00
ref: 2

HANDLE,PILLION RIDER,RIGHT

€ 0.00

4621305A00
ref: 3

HANDLE,PILLION RIDER,LEFT

€ 64.00

0711008205
ref: 4
07130-0820B

BOLT

€ 3.00

0832211084
ref: 5
08322-0108A

WASHER

€ 1.50

0925006004
ref: 6

CAP(OD:14.5)

€ 1.50

0110710456
ref: 7
01500-1045A

BOLT

€ 2.00

0832121106
ref: 8
08321-0110A

LOCK WASHER

€ 3.00

0832221106
ref: 9
08322-0110A

WASHER

€ 2.50

0110706206
ref: 10
01500-0620A

BOLT,M6X1X20

€ 2.00

0832121066
ref: 11
08321-0106A

WASHER,LOCK

€ 2.00

0832221066
ref: 12
08322-0106B

WASHER, LOWER

€ 2.00

9570005A00KEY
ref: 13

LOCK SET,TAIL COVER

€ 33.00

0211206126
ref: 14
02112-0612A

SCREW

€ 1.50

0832121066
ref: 15
08321-0106A

WASHER,LOCK

€ 2.00

PILLION RIDER HANDLE

all assemblies
