STARTING MOTOR

GV1200GLF2 MADURA 1986 (G) USA (E03)

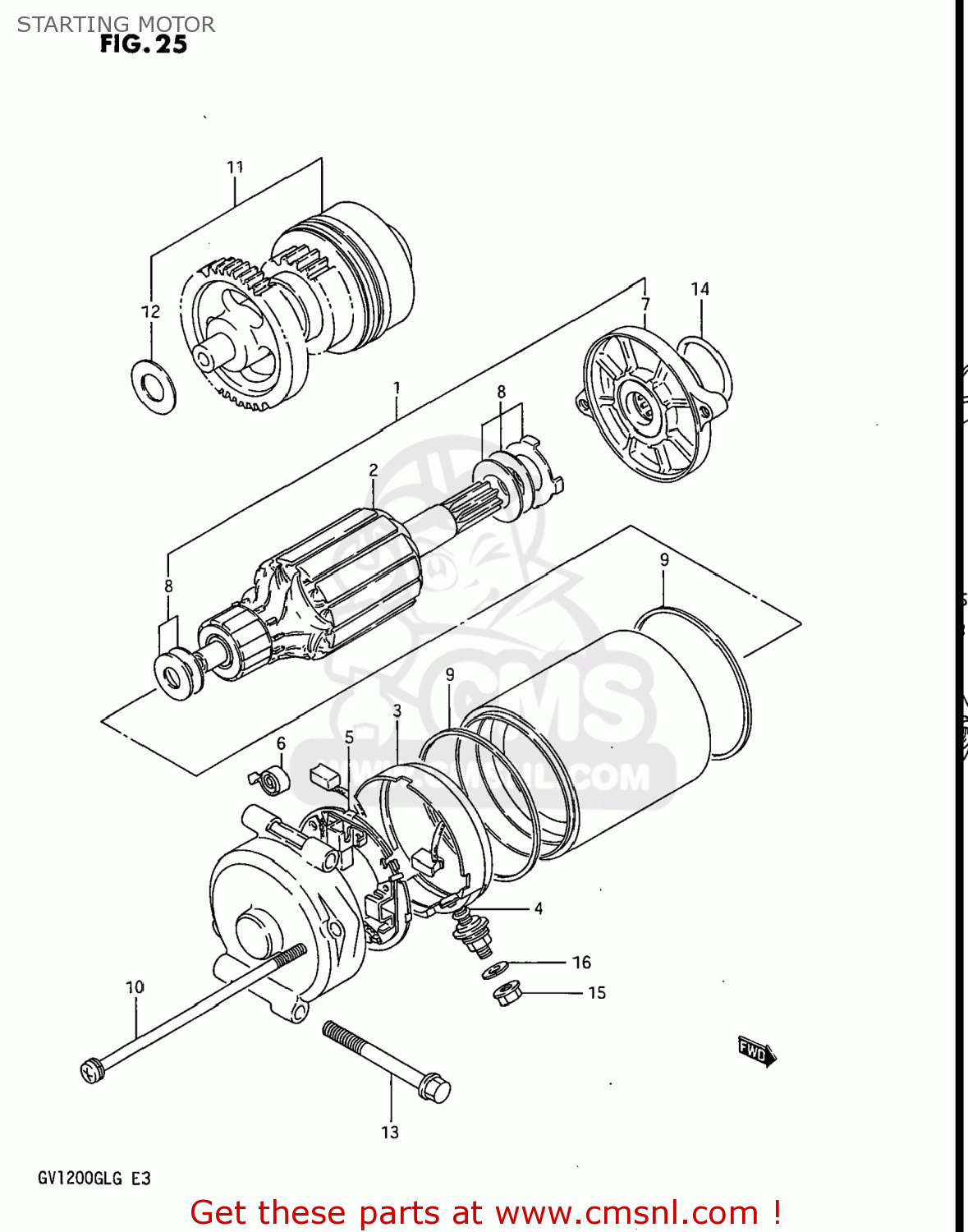

Starting motor diagram GV1200GLF2 MADURA 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110005A00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 583.50

3131105A00
ref: 2

ARMATURE

€ 112.00

3113005A00
ref: 3
31130-06B00

BRUSH TERMINAL SET

€ 54.00

3114349040
ref: 4

O RING

€ 3.00

3113205A00
ref: 5
31132-06B00

HOLDER,BRUSH

€ 35.50

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

3115005A00
ref: 7

BRACKET SET,STARTING MOTOR

€ 70.00

3136005A00
ref: 8

SHIM SET,STARTING MOTOR

€ 6.50

3126449040
ref: 9

SEAL,RING

€ 7.50

3128005A00
ref: 10
31280-06B00

BOLT

€ 10.50

3137005A00
ref: 11

PINION ASSEMBLY,STARTING MOTOR

€ 110.50

3137115510
ref: 12
08211-12241

SHIM

€ 2.00

0154706605
ref: 13
01547-0660B

BOLT (6X60)

€ 3.50

0928024003
ref: 14

O RING(D:3,ID:24.5)

€ 2.00

0831011066
ref: 15
08310-0006A

NUT

€ 2.00

0832121066
ref: 16
08321-0106A

WASHER,LOCK

€ 2.00
