FRONT BRAKE HOSE
GV1200GLF2 MADURA 1986 (G) USA (E03)

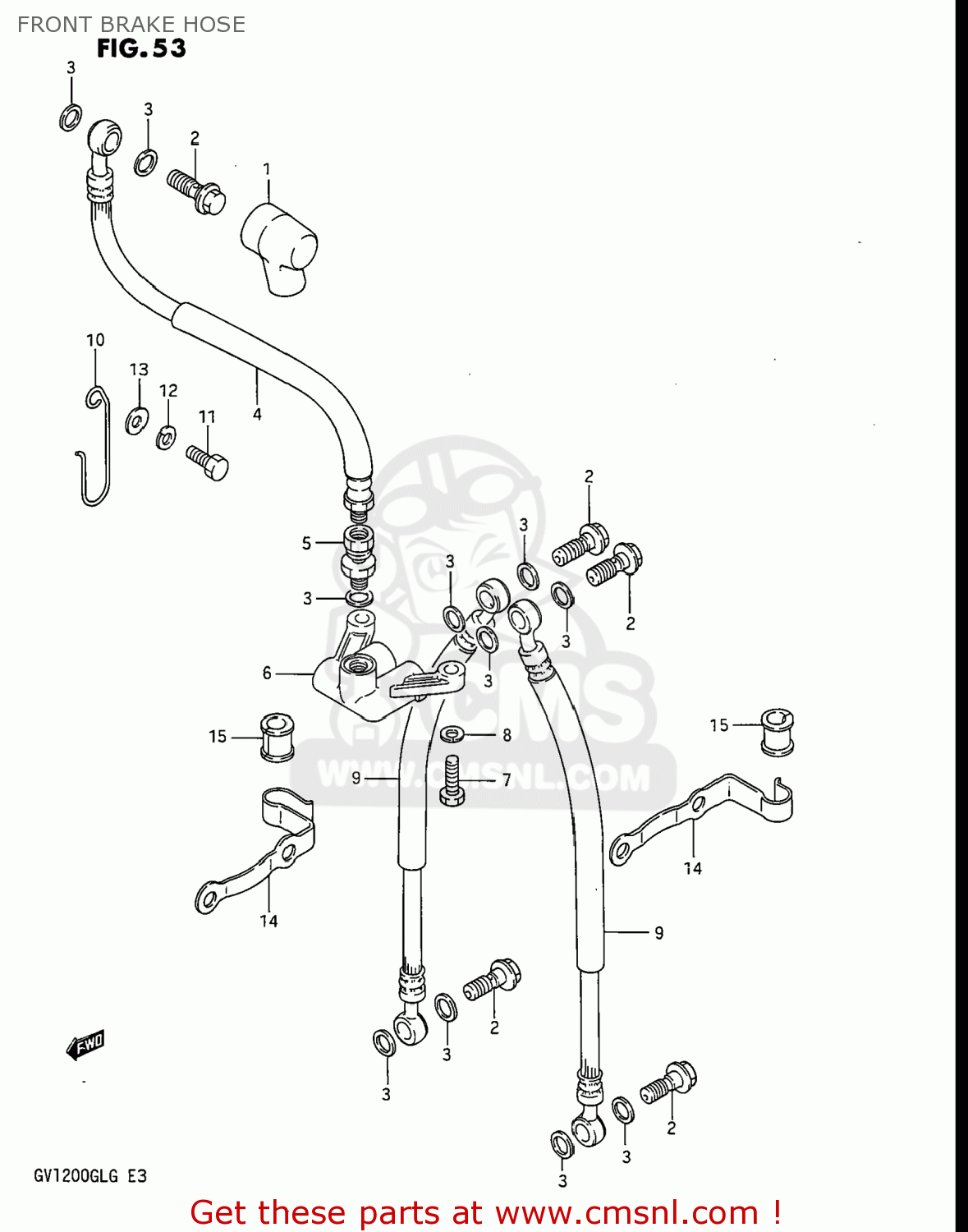

Front brake hose diagram GV1200GLF2 MADURA 1986 (G) USA (E03)
FRONT BRAKE HOSE GV1200GLF2 MADURA 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5971118400
ref: 1
59711-49001
BOOT,MASTER CYLINDER
€ 8.50
2
0936010017
ref: 2
BOLT UNION
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
€ 2.00
4
5948005A01
ref: 4
HOSE,FRONT BRAKE NO.1
€ 23.50
5
5929043500
ref: 5
ADAPTER,BRAKE HOSE
€ 34.50
6
5949005A00
ref: 6
JOINT,BRAKE HOSE
€ 24.00
7
0110706205
ref: 7
01500-0620A
BOLT
€ 2.00
8
0832121064
ref: 8
08321-0106A
WASHER,LOCK
€ 2.00
9
5924005A01
ref: 9
HOSE,FRONT BRAKE NO.2
€ 61.50
10
5954105A01
ref: 10
GUIDE,CLUTCH HOSE
€ 0.00
11
0110706127
ref: 11
01500-06127
BOLT
€ 2.00
12
0832121067
ref: 12
08321-01067
WASHER,LOCK
€ 2.50
13
0832221067
ref: 13
08322-01067
WASHER
€ 2.00
14
5926849001
ref: 14
GUIDE,BRAKE HOSE NO.2
€ 7.00
15
5924449000
ref: 15
BUSH,BRAKE HOSE GUIDE,NO.2
€ 4.50
