CAM CHAIN

GV1200GLG MADURA 1985 (F) USA (E03)

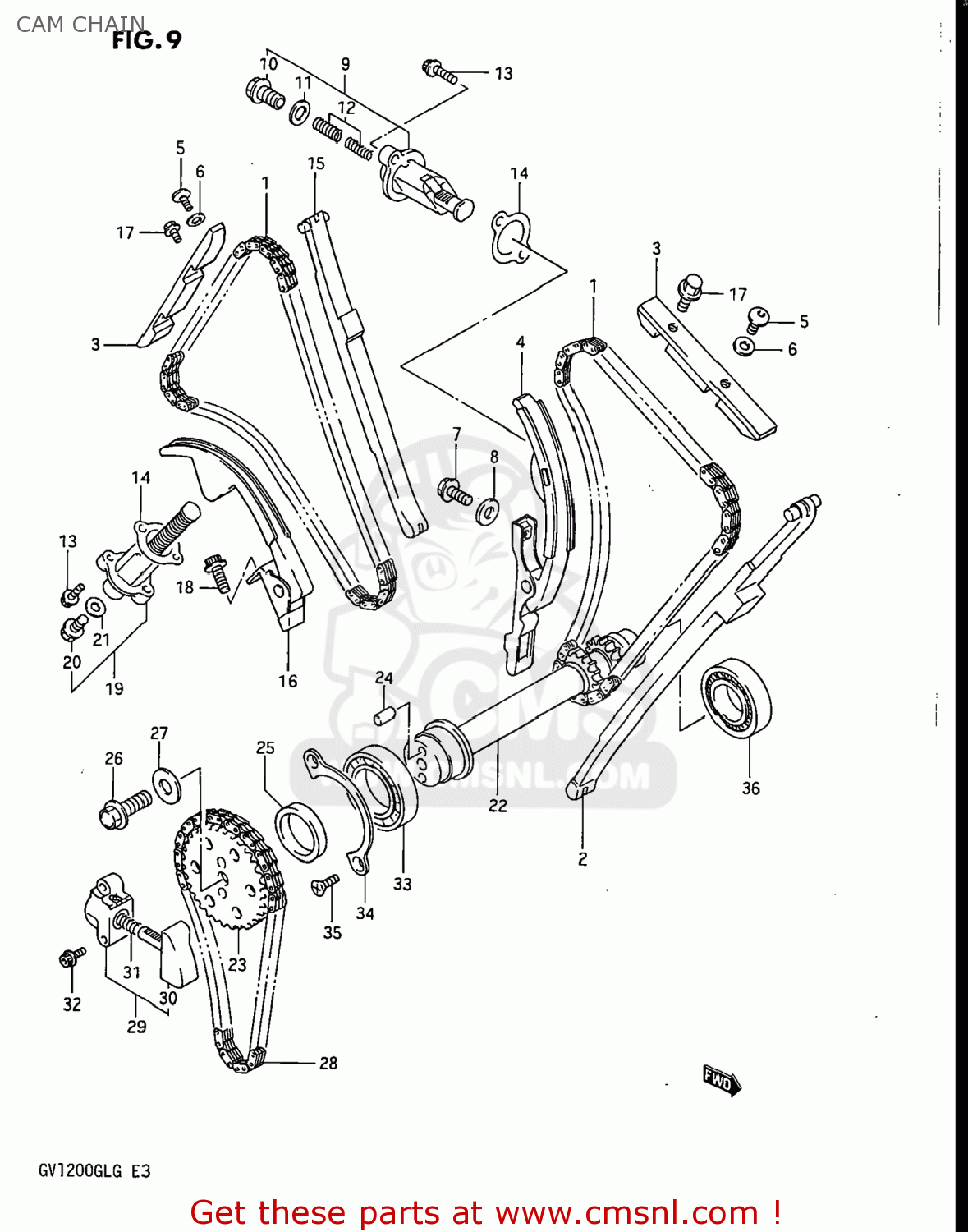

Cam chain diagram GV1200GLG MADURA 1985 (F) USA (E03)

CAM CHAIN GV1200GLG MADURA 1985 (F) USA (E03)
CAM CHAIN GV1200GLG MADURA 1985 (F) USA (E03)
CAM CHAIN GV1200GLG MADURA 1985 (F) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1276005A00
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 104.50
2
1277105A00
ref: 2
GUIDE,FRONT CAM CHAIN NO
€ 32.50
3
1278205A01
ref: 3
GUIDE,RR CAM CHAIN NO.1
1278205A01
€ 28.00
4
1281005A00
ref: 4
TENSIONER,CAM CHAIN
€ 33.50
5-1
0913906031
ref: 5-1
09139-06078
SCREW
0913906031
€ 3.00
5-2
0913906031
ref: 5-2
09139-06078
SCREW
0913906031
€ 3.00
6-1
0916806015
ref: 6-1
09168-06023
WASHER
0916806015
€ 2.00
6-2
0916806015
ref: 6-2
09168-06023
WASHER
0916806015
€ 2.00
7
0151708205
ref: 7
01550-0820A
BOLT
€ 3.00
8
0916808014
ref: 8
09168-08021
GASKET (NAS)
0916808014
€ 2.00
9
1283105A00
ref: 9
ADJUSTER,FRONT TENSIONER
€ 98.50
10
1283305A00
ref: 10
PLUG,FR TENSIONER ADJ
1283305A00
€ 9.00
11
1283705A00
ref: 11
09168-12018
GASKET,TENSIONER ADJUSTER (NAS)
1283705A00
€ 2.00
12
1283805A00
ref: 12
SPRING SET,FRONT TENSIONER
€ 6.00
13
0711006255
ref: 13
07130-0625B
BOLT
0711006255
€ 3.00
14
1283738200
ref: 14
12837-24A10
GASKET,TENSIONER ADJUSTER (MCA)
1283738200
€ 3.50
15
1277205A00
ref: 15
GUIDE,CAM CHAIN NO.1
€ 20.50
16
1281505A01
ref: 16
TENSIONER,REAR CAM CHAIN
€ 44.00
17-1
0151706108
ref: 17-1
01550-06107
BOLT
0151706108
€ 2.50
17-2
0151706108
ref: 17-2
01550-06107
BOLT
0151706108
€ 2.50
18
0712008208
ref: 18
07120-0820A
BOLT
€ 3.00
19
1283205A00
ref: 19
12832-24A01
ADJUSTER ASSEMBLY,TENSIONER
€ 134.50
20-1
1283405A00
ref: 20-1
PLUG
€ 13.50
20-2
1283405A01
ref: 20-2
PLUG
€ 0.00
21
1283705A00
ref: 21
09168-12018
GASKET,TENSIONER ADJUSTER (NAS)
1283705A00
€ 2.00
22-1
1271505A00
ref: 22-1
12715-05A01
SHAFT, IDLER
€ 131.00
22-2
1271505A01
ref: 22-2
SHAFT, IDLER
€ 131.00
23
1274505A00
ref: 23
SPROCKET,IDLER SHAFT
€ 43.50
24
0926106001
ref: 24
PIN(6X14)
€ 0.00
25
0918032004
ref: 25
SPACER
€ 0.00
26-1
0910310108
ref: 26-1
BOLT
€ 0.00
26-2
0910310112
ref: 26-2
BOLT(10X24)
0910310112
€ 4.00
27
0916010076
ref: 27
WASHER
€ 0.00
28
1276105A00
ref: 28
CHAIN,IDLER SHAFT,DRIVE
€ 75.00
29
1283505A00
ref: 29
ADJUSTER,IDLE CHAIN
€ 58.50
30
1283605A00
ref: 30
BOLT,ADJUST OIL HOSE UNION
€ 0.00
31
1283905A00
ref: 31
PLUG,ADJUSTER
€ 0.00
32
0711006358
ref: 32
07130-06357
BOLT
€ 3.50
33
0926232005
ref: 33
BALL BEARING 32X58X13
0926232005
€ 16.00
34
1274605A00
ref: 34
WASHER
€ 5.00
35
0212206168
ref: 35
02122-06167
SCREW
0212206168
€ 2.00
36
0926420004
ref: 36
ROLLER BEARING (20X47X
€ 106.50
