HEADLAMP HOUSING - FRONT FENDER

GV1200GLG MADURA 1985 (F) USA (E03)

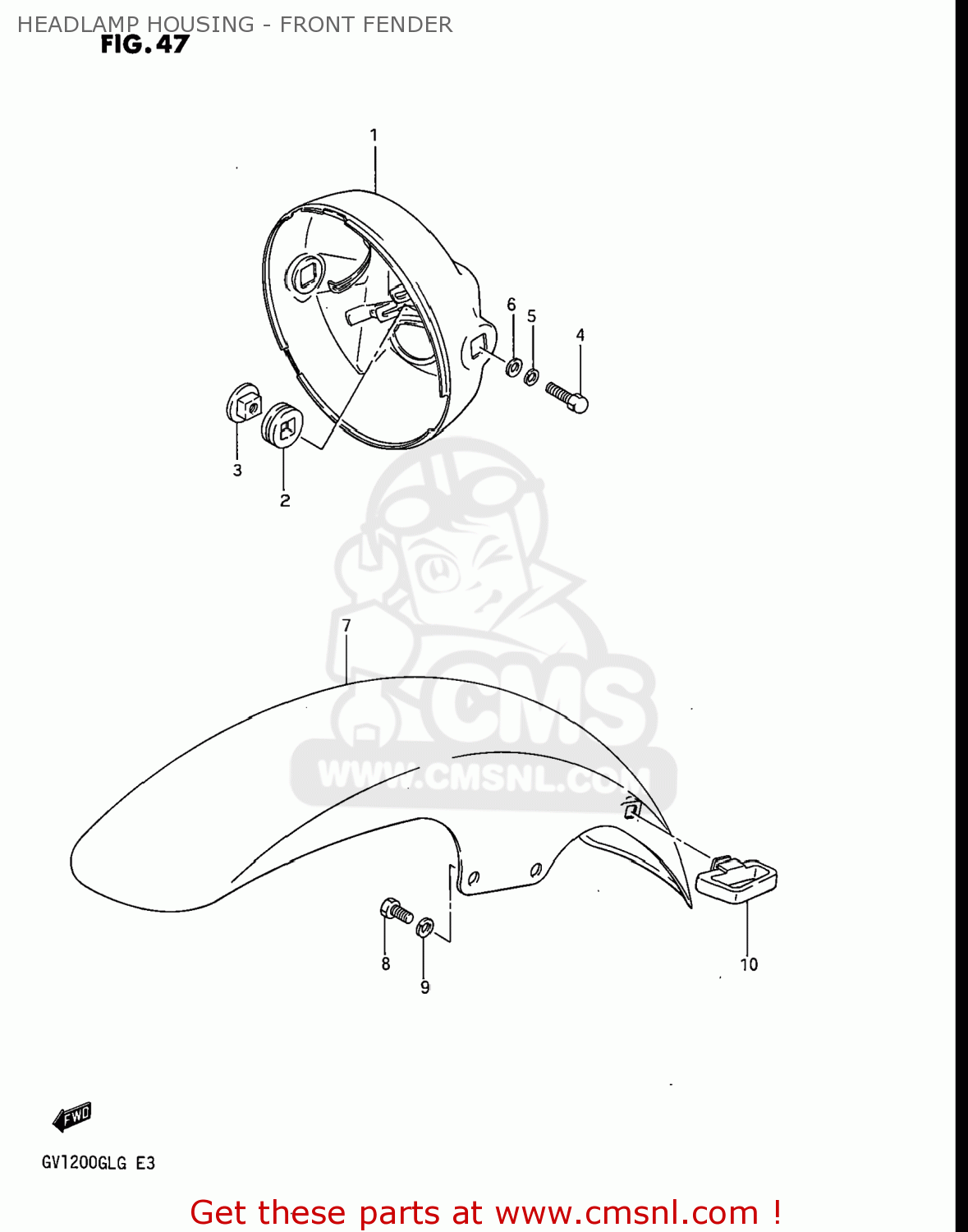

Headlamp housing - front fender diagram GV1200GLG MADURA 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

5180015510
ref: 1

HOUSING,HEADLAMP (COWLING)

€ 81.50

5182727302
ref: 2

CUSHION,HEADLAMP HOUSING

€ 3.00

5182136200
ref: 3

SPACER,HEADLAMP HOUSING

€ 7.50

0120408207
ref: 4

BOLT

€ 3.00

0832121088
ref: 5
08321-01087

LOCK WASHER

€ 2.00

0832211088
ref: 6
08322-01087

WASHER

€ 2.00

5311005A30
ref: 7

FENDER,FR

€ 111.50

0110708167
ref: 8
01500-0816B

BOLT,8X16

€ 2.00

0832121088
ref: 9
08321-01087

LOCK WASHER

€ 2.00

5862105A00
ref: 10

GUIDE,CABLE

€ 5.00
