LEFT HANDLE SWITCH

GV1200GLG MADURA 1985 (F) USA (E03)

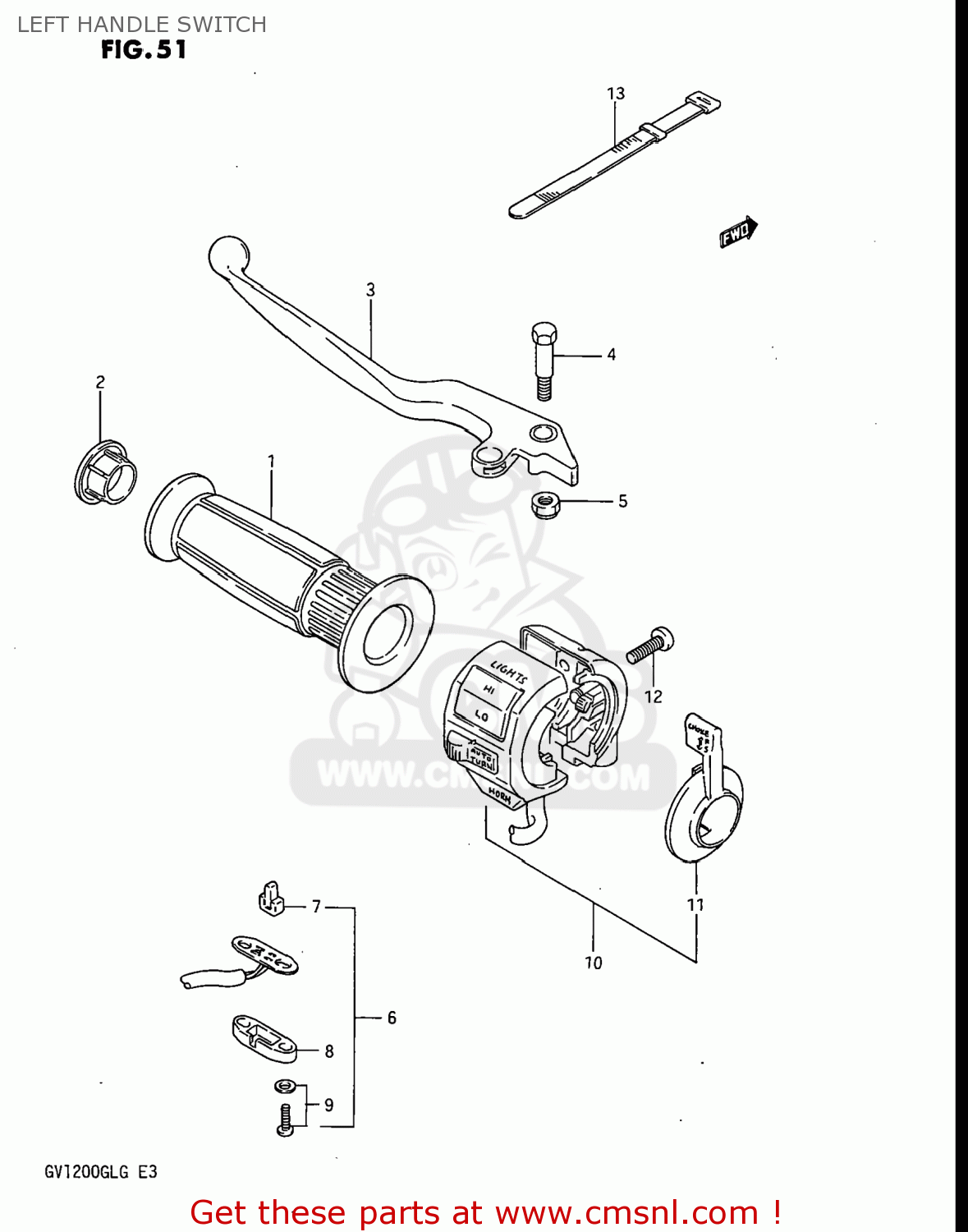

Left handle switch diagram GV1200GLG MADURA 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

5721105A00
ref: 1

GRIP,LEFT

€ 13.00

5721605A00
ref: 2

CAP,GRIP END

€ 5.00

5750008A00
ref: 3
57621-38A02

LEVER,CLUTCH (BLACK)

€ 31.50

5743105A00
ref: 4

BOLT,LEVER

€ 8.50

0831921065
ref: 5
08319-2106B

NUT

€ 2.50

5756008A00
ref: 6
57560-18D10

SWITCH ASSEMBLY,CLUTCH

€ 20.50

5746518601
ref: 7

CONTACT,SWITCH

€ 4.50

5748133010
ref: 8

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 9
09125-03105-XC0

SCREW

€ 2.50

10-1

3740005A71
ref: 10-1
37400-05A72

SWITCH ASSEMBLY,HANDLE,LEFT

€ 103.50

10-2

3740005A72
ref: 10-2

SWITCH ASSEMBLY,HANDLE,LEFT

€ 103.50

11-1

3757105A00
ref: 11-1
37571-05A71

LEVER,CHOKE

€ 10.50

11-2

3757105A71
ref: 11-2

LEVER,CHOKE

€ 10.50

0211205205
ref: 12
02112-0520B

SCREW 5X20

€ 2.50

0940712402
ref: 13

CLAMP(L:120)

€ 3.00

LEFT HANDLE SWITCH
