REAR COMBINATION LAMP

GV1200GLG MADURA 1985 (F) USA (E03)

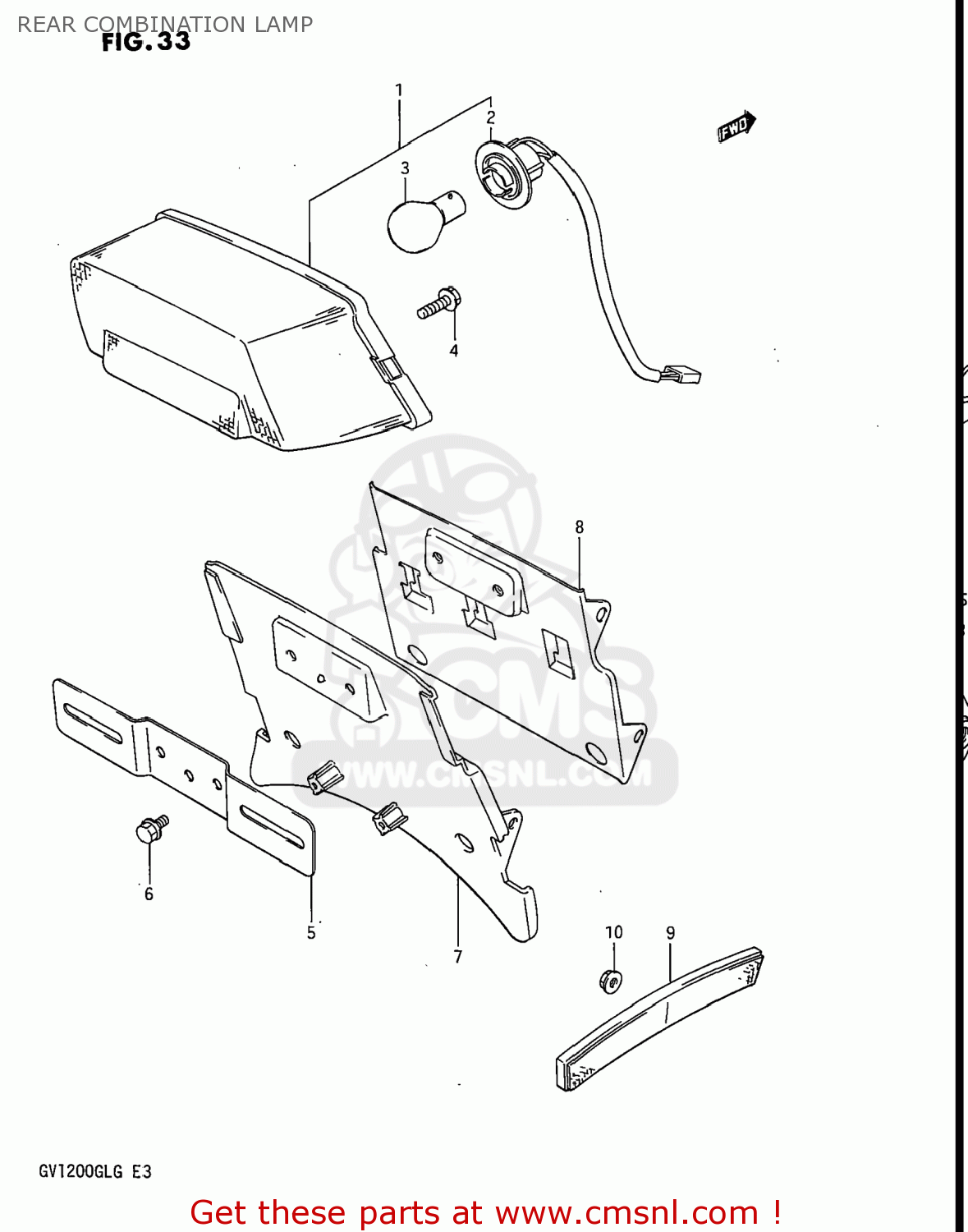

Rear combination lamp diagram GV1200GLG MADURA 1985 (F) USA (E03)

REAR COMBINATION LAMP GV1200GLG MADURA 1985 (F) USA (E03)

REAR COMBINATION LAMP GV1200GLG MADURA 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571005A30
ref: 1

LAMP ASSY,RR COMBINATION

€ 163.00

2

3571805A30
ref: 2
35718-48B20

SOCKET & CORD ASSEMBLY

€ 25.00

3

0947112084
ref: 3

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

4

0151406203
ref: 4
01550-0620A

BOLT

€ 1.50

5

3592744110
ref: 5

PLATE,RR LICENSE

€ 22.50

6

0151706125
ref: 6
01550-0612A

BOLT 6X12

€ 2.50

7

3577105A31
ref: 7

COVER,LICENSE PLATE

€ 12.50

8

3577605A30
ref: 8

REINFORCEMENT,REAR COVER

€ 9.00

9

3597005A30
ref: 9

REFLECTOR,REFLEX

€ 18.50

10

0831616056
ref: 10
08316-1005A

NUT

€ 2.50
