HEADLAMP
GV1200GLG MADURA 1986 (G) USA (E03)

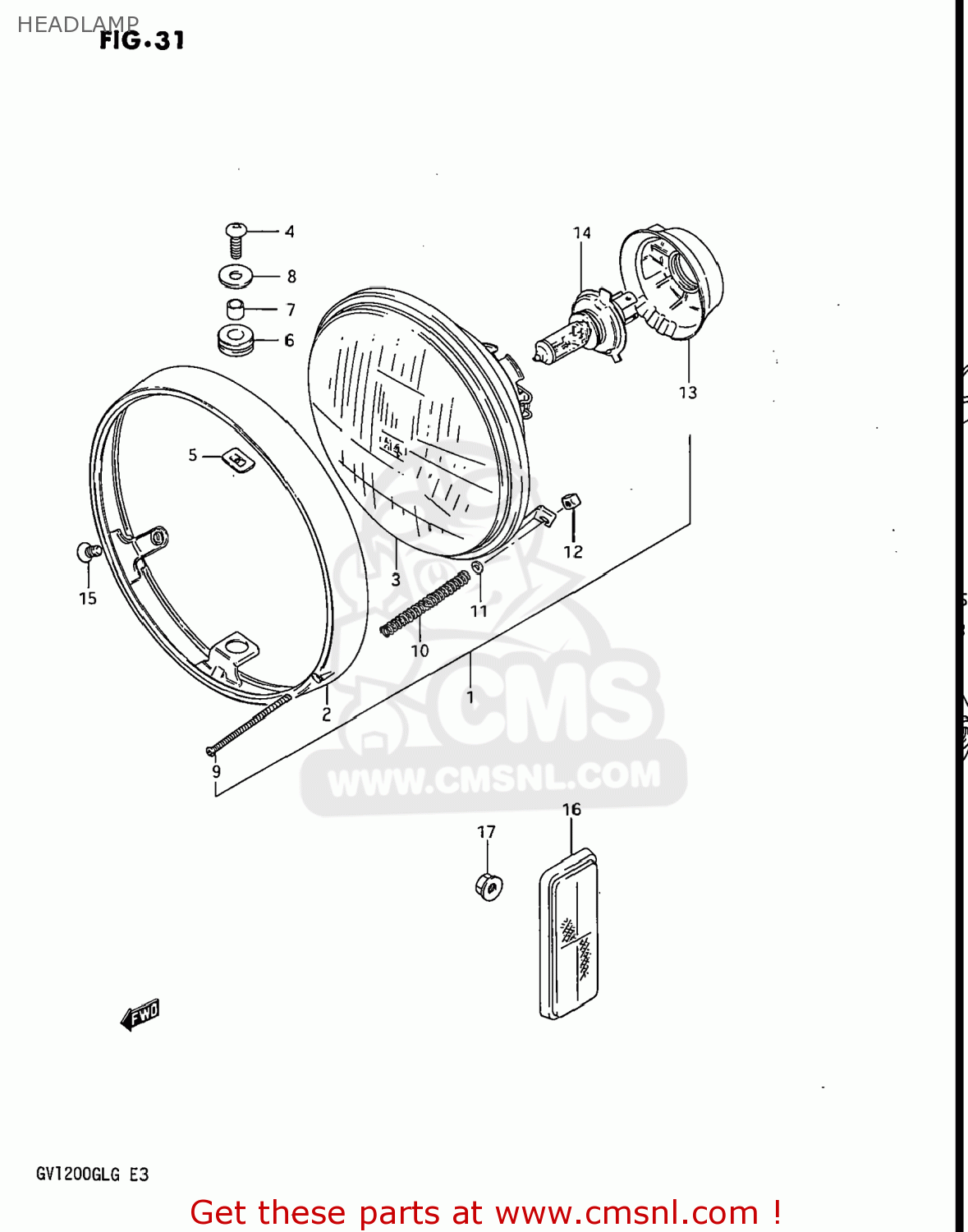

Headlamp diagram GV1200GLG MADURA 1986 (G) USA (E03)
HEADLAMP GV1200GLG MADURA 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510005A30999
ref: 1
HEADLAMP ASSY
€ 237.00
2
3511115530
ref: 2
RIM,HEAD LAMP
€ 56.50
3
3512105A30
ref: 3
LAMP UNIT
€ 205.50
4
0912505102
ref: 4
SCREW(5X14)
€ 2.50
5
3515548510
ref: 5
NUT
€ 2.00
6
3513945230
ref: 6
CUSHION
€ 1.50
7
3513345230
ref: 7
SPACER
€ 2.00
8
3513845230
ref: 8
09160-05045
WASHER
€ 2.00
9
3515115510
ref: 9
09125-04020
SCREW,HEADLAMP ADJUST
€ 3.00
10
3515427630
ref: 10
SPRING,HEADLAMP ADJUST
€ 3.50
11
3515727630
ref: 11
WASHER
€ 2.50
12
3513545600
ref: 12
NUT
€ 3.00
13
3517345200
ref: 13
COVER,SOCKET
€ 14.00
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15
0912705013
ref: 15
SCREW(5X12)
€ 2.50
16
3595043431
ref: 16
REFLEX REFLECTOR,FR SIDE
€ 12.00
17
0831616056
ref: 17
08316-1005A
NUT
€ 2.50
