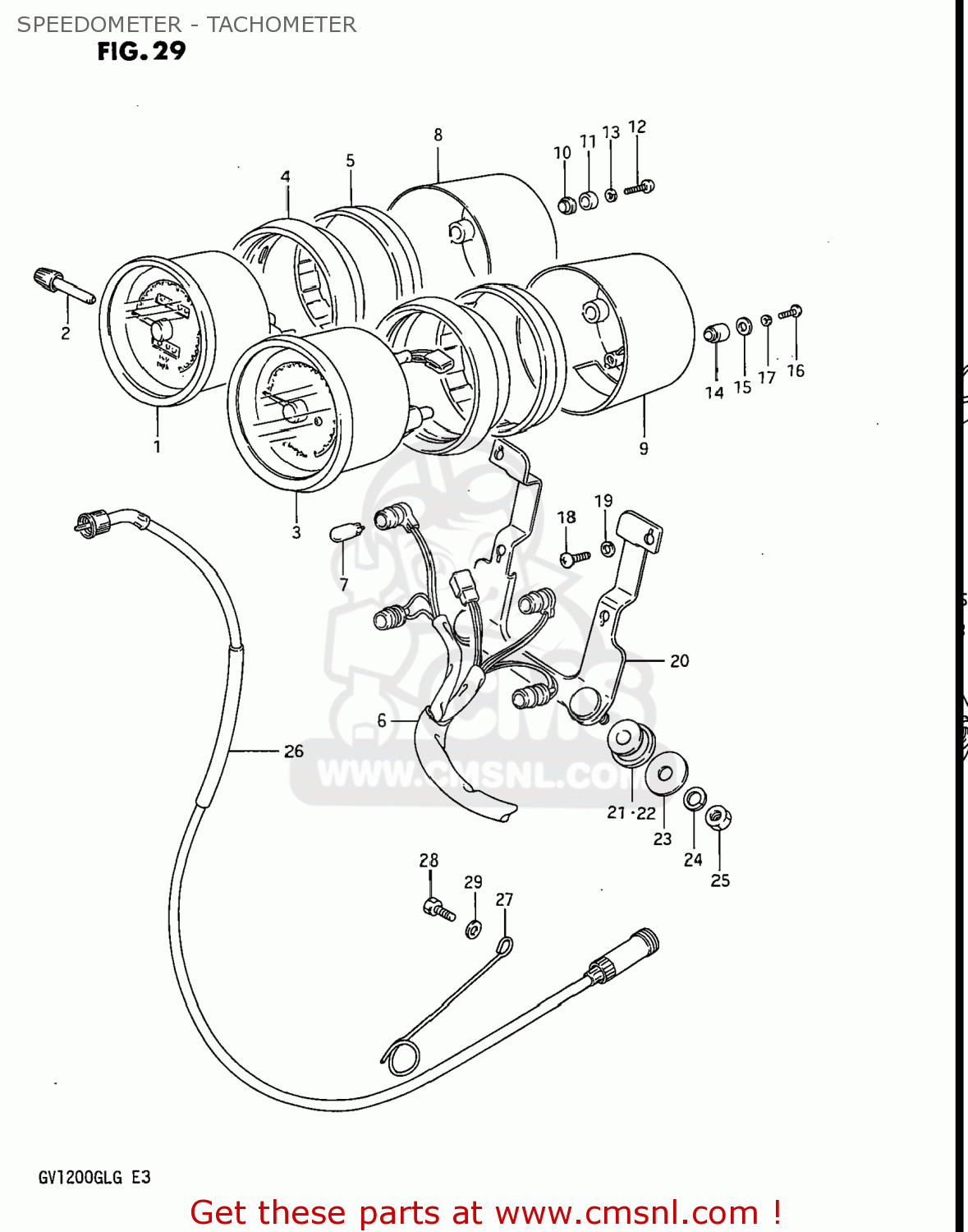

SPEEDOMETER - TACHOMETER - GV1200GLG MADURA 1986 (G) USA (E03)

ref

part #

description

quantity

1

3411005A30
ref: 1

METER,SPEEDOMETER (KM/MPH)

€ 309.00

2

3498045020
ref: 2

KNOB

€ 4.50

3

3421005A30
ref: 3

TACHOMETER

€ 439.50

4

3415005A30
ref: 4

COVER,METER

€ 16.50

5

3428805A30
ref: 5

CUSHION,TACHOMETER

€ 9.50

6

3417305A30
ref: 6

SOCKET,METER

€ 36.50

7

0947112028
ref: 7

BULB(12V3.4W,T10)

€ 3.50

8

3419305A30
ref: 8

COVER,METER UNDER

€ 65.00

9

3429305A30
ref: 9

COVER,TACHOMETER UNDER

€ 61.00

10

3418905A30
ref: 10

CUSHION,METER

€ 4.50

11

3418705A30
ref: 11

SPACER

€ 2.00

12

0211204168
ref: 12
02112-0416A

SCREW

€ 1.00

13

0832121048
ref: 13
08321-0104A

LOCK WASHER

€ 2.00

14

3428905A30
ref: 14

CUSHION,TACHOMETER

€ 3.50

15

0832221048
ref: 15
08322-01047

WASHER

€ 2.00

16

0211204108
ref: 16
02112-04107

SCREW 4X10

€ 2.00

17

0832121048
ref: 17
08321-0104A

LOCK WASHER

€ 2.00

18

0211205106
ref: 18
02112-0510A

SCREW 5X10

€ 2.00

19

0832121056
ref: 19
08321-0105A

LOCK WASHER

€ 3.00

20

3495005A30
ref: 20

BRACKET,METER

€ 49.50

21

3495605A00
ref: 21

CUSHION,METER

€ 0.00

22

3495631001
ref: 22

CUSHION,METER BRACKET

€ 4.50

23

0916008057
ref: 23
09160-08135

WASHER (8.5X20X1.6)

€ 2.00

24

0832121084
ref: 24
08321-0108A

WASHER,LOCK,8.

€ 2.50

25

0831011085
ref: 25
08310-0008A

NUT

€ 1.50

26

3491005A00
ref: 26

CABLE ASSY,SPEEDOMETER

€ 25.00

27

3493845100
ref: 27

CLAMP,SPEEDOMETER CABLE

€ 14.50

28

0110706167
ref: 28
01500-06167

BOLT

€ 3.00

29

0832221067
ref: 29
08322-01067

WASHER

€ 2.00
