TRANSMISSION (MODEL G)

GV1200GLG MADURA 1986 (G) USA (E03)

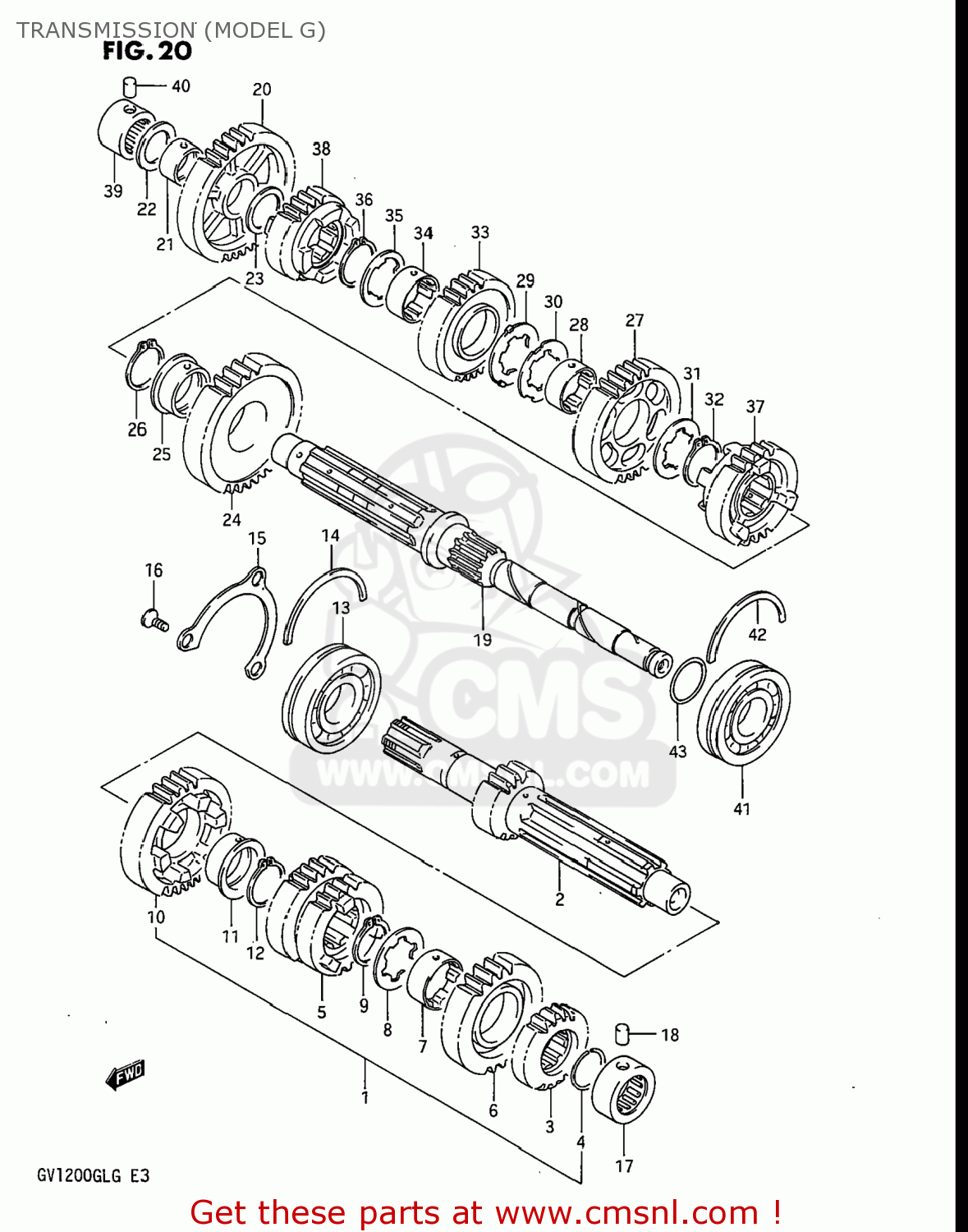

Transmission (model g) diagram GV1200GLG MADURA 1986 (G) USA (E03)

TRANSMISSION (MODEL G) GV1200GLG MADURA 1986 (G) USA (E03)
TRANSMISSION (MODEL G) GV1200GLG MADURA 1986 (G) USA (E03)
TRANSMISSION (MODEL G) GV1200GLG MADURA 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2412005A00
ref: 1
24120-05A01
SHAFT,COUNTER
€ 253.50
2
2410005851
ref: 2
COUNTER SHAFT
€ 91.50
3
2422105A00
ref: 3
GEAR,SECOND DRIVE
€ 61.50
4
0938028005
ref: 4
CIRCLIP
€ 1.00
5
2423105A01
ref: 5
GEAR,THIRD/FOURTH DRIVE
€ 62.50
6
2425105A01
ref: 6
GEAR,FIFTH DRIVE
€ 57.00
7
2433249000
ref: 7
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
8
0916728001
ref: 8
WASHER,LOCK
0916728001
€ 3.00
9
0833111289
ref: 9
08331-3128A
CIRCLIP
€ 2.50
10
2426105A00
ref: 10
GEAR,SIXTH DRIVE
€ 55.50
11
0930128001
ref: 11
BUSH(28X32X2)
0930128001
€ 19.50
12
0833111289
ref: 12
08331-3128A
CIRCLIP
€ 2.50
13
0926225051
ref: 13
09262-25105
BEARING(25X62X17)
0926225051
€ 59.50
14
0939062006
ref: 14
09390-62012
C-RING
0939062006
€ 5.00
15
2474105A00
ref: 15
PLATE,COUNTERSHAFT BEARING
€ 6.00
16
0212206167
ref: 16
SCREW
0212206167
€ 2.00
17
0926320054
ref: 17
ROLLER BEARING (20X36X1
€ 36.50
18
0422107209
ref: 18
PIN
0422107209
€ 1.50
19
2413105A10
ref: 19
SHAFT,DRIVE
€ 104.00
20
2431105A00
ref: 20
GEAR,FIRST DRIVEN
€ 62.50
21
0930022005
ref: 21
24312-02F00
BUSHING
€ 19.50
22
0821120343
ref: 22
WASHER
€ 2.50
23
0821122321
ref: 23
WASHER
0821122321
€ 3.00
24
2432105A00
ref: 24
GEAR,SECOND DRIVEN
€ 108.50
25
0930128001
ref: 25
BUSH(28X32X2)
0930128001
€ 19.50
26
0833111289
ref: 26
08331-3128A
CIRCLIP
€ 2.50
27
2433105A00
ref: 27
GEAR,THIRD DRIVEN
€ 63.00
28
2433249000
ref: 28
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
29
0916928001
ref: 29
WASHER
0916928001
€ 3.00
30
0916728002
ref: 30
WASHER,LOCK
0916728002
€ 3.00
31
0916728001
ref: 31
WASHER,LOCK
0916728001
€ 3.00
32
0833111289
ref: 32
08331-3128A
CIRCLIP
€ 2.50
33
2434105A01
ref: 33
GEAR,FOURTH DRIVEN
€ 104.00
34
2433249000
ref: 34
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
35
0916728001
ref: 35
WASHER,LOCK
0916728001
€ 3.00
36
0833111289
ref: 36
08331-3128A
CIRCLIP
€ 2.50
37
2435105A03
ref: 37
GEAR,FIFTH DRIVEN
€ 58.50
38
2436105A04
ref: 38
GEAR,SIXTH DRIVEN
€ 54.00
39
0926320040
ref: 39
BEARING(20X34X20)
0926320040
€ 42.50
40
0422107209
ref: 40
PIN
0422107209
€ 1.50
41
0926225065
ref: 41
09262-25105
BALL BEARING 25X62X17
0926225065
€ 59.50
42
0939062006
ref: 42
09390-62012
C-RING
0939062006
€ 5.00
43
0928025001
ref: 43
O RING(D:1,ID:24.5)
0928025001
€ 2.50
