OIL PUMP - FUEL PUMP
GV1200GLG MADURA 1986 (G) USA (E03)

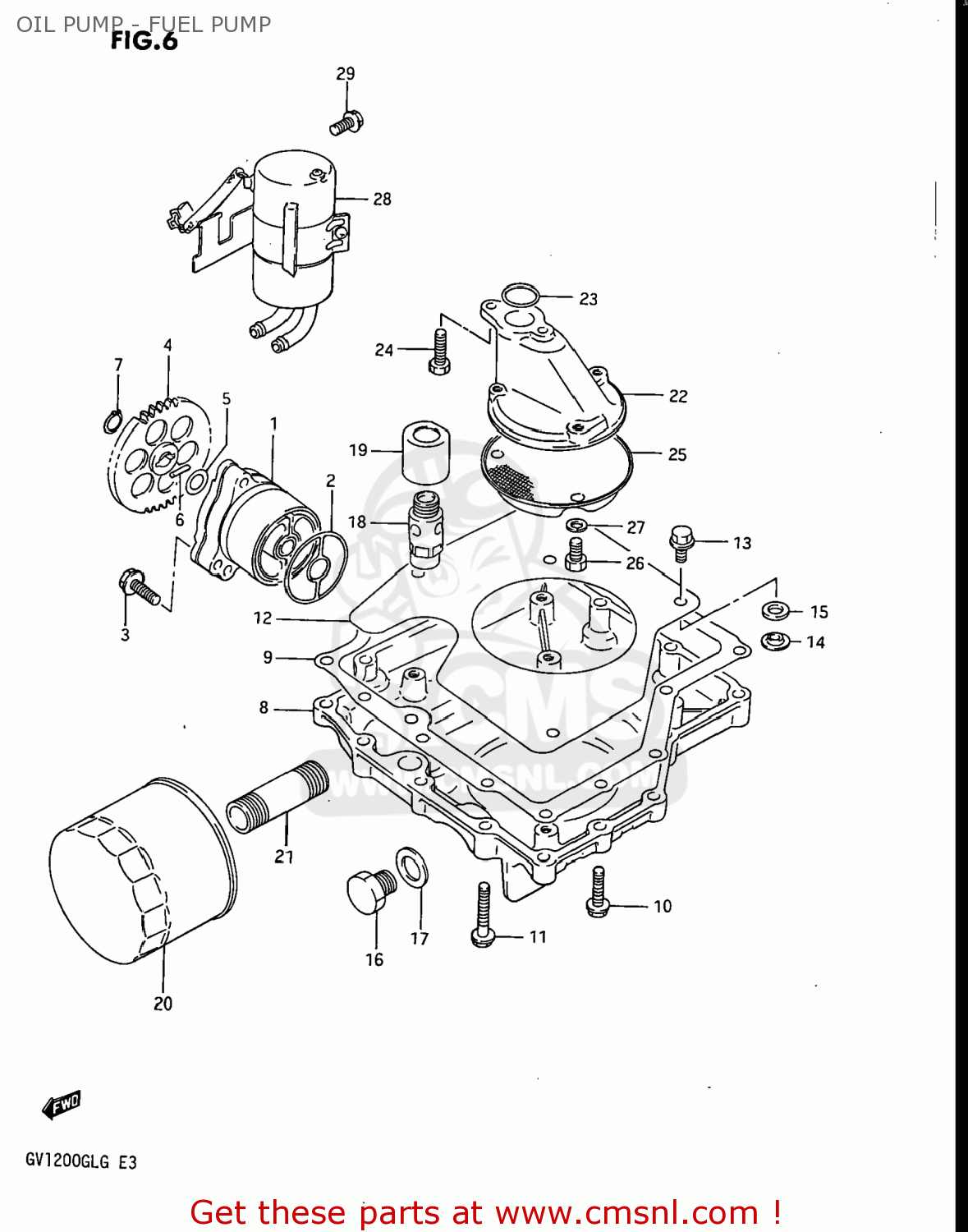

Oil pump - fuel pump diagram GV1200GLG MADURA 1986 (G) USA (E03)
OIL PUMP - FUEL PUMP GV1200GLG MADURA 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640005A00
ref: 1
PUMP ASSEMBLY,ENGINE OIL
€ 119.50
2
1649131300
ref: 2
O RING,OIL PUMP
€ 12.50
3
0151706308
ref: 3
01550-06307
BOLT
€ 2.00
4
1633105A00
ref: 4
16331-05A01
GEAR,OIL PUMP DRIVEN
€ 38.00
5
0822110185
ref: 5
SHIM
€ 2.00
6
0926104009
ref: 6
PIN(4X15.8)
€ 1.50
7
0833131109
ref: 7
CIRCLIP
€ 2.00
8-1
1151105A02
ref: 8-1
11511-24A01
PAN,OIL
€ 91.50
8-2
1151124A01
ref: 8-2
PAN,OIL
€ 91.50
9
1148905A00
ref: 9
11489-05A01
GASKET,OIL PAN (MCA)
€ 13.50
10
0151706258
ref: 10
01550-06257
BOLT
€ 2.50
11
0151706308
ref: 11
01550-06307
BOLT
€ 2.00
12
1152305A03
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.50
13
0151706128
ref: 13
01550-06127
BOLT
€ 2.50
14
1152405A00
ref: 14
CUSHION
€ 0.00
15
0916906028
ref: 15
09169-06041
WASHER
€ 2.00
16
0924714001
ref: 16
09247-14002
PLUG
€ 5.00
17
0916814004
ref: 17
GASKET(14X19.2X2) (NAS)
€ 2.50
18
1644015500
ref: 18
16440-11D00
REGULATOR ASSEMBLY,ENGINE
€ 37.00
19
1644905A00
ref: 19
GUIDE,OIL RV
€ 2.50
20
1651005A00
ref: 20
FILTER ASSY,ENGINE OIL
€ 8.50
21
1659105A00
ref: 21
UNION,OIL STAND
€ 6.50
22
1652509301
ref: 22
PROTECTOR,OIL STRAINER
€ 16.00
23
0928018008
ref: 23
09280-18009
O RING(D:3.2,ID:17.8)
€ 8.00
24
0151706208
ref: 24
01550-06207
BOLT,REAR
€ 2.50
25
1652005A00
ref: 25
STRAINER,ENGINE OIL
€ 11.50
26
0110706128
ref: 26
01500-06127
BOLT
€ 2.00
27
0832121068
ref: 27
08321-01067
LOCK WASHER
€ 2.50
28
1510005A10
ref: 28
PUMP ASSY,FUEL
€ 251.00
29
0151706126
ref: 29
01550-0612A
BOLT
€ 2.50
