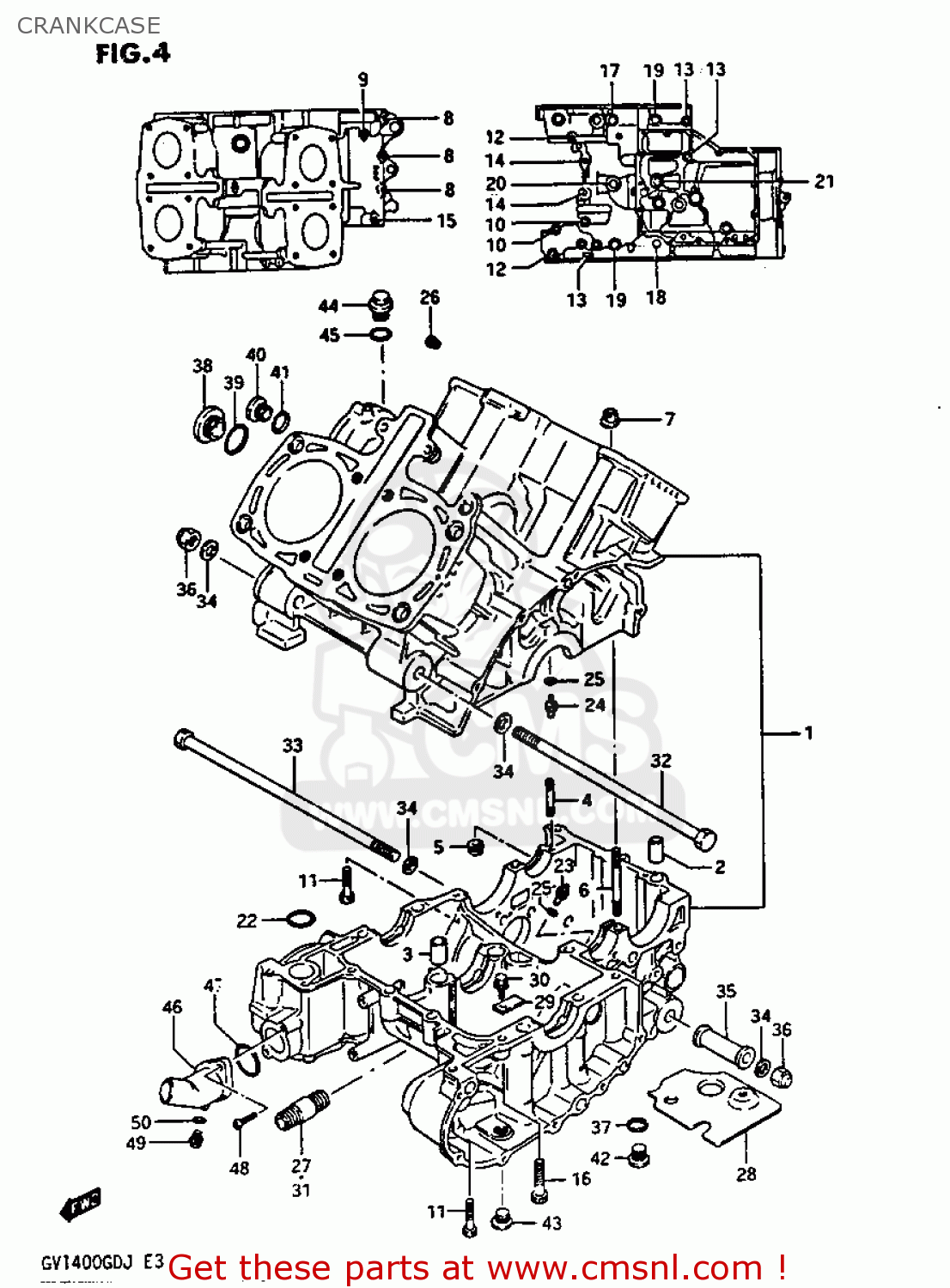

CRANKCASE

ref

part #

description

quantity

1-1

1130024872
ref: 1-1
GV1400GDG/GTG

CRANKCASE SET

€ 1,221.00

1-2

1130024872
ref: 1-2
GV1400GDH/GDJ

CRANKCASE SET

€ 1,221.00

1-3

1130124822
ref: 1-3
GV1400GCG

CRANKCASE SET

€ 2,731.50

1-4

1130124822
ref: 1-4
GV1400GCH

CRANKCASE SET

€ 2,731.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920616002
ref: 3

PIN

€ 0.00

4

0142106508
ref: 4

STUD 6X50

€ 2.00

5

0831931067
ref: 5

NUT

€ 2.50

6

0142108655
ref: 6

STUD BOLT

€ 3.50

7

0831616085
ref: 7

NUT 8MM

€ 3.00

8

0151706354
ref: 8

BOLT 6X35

€ 2.50

9

0151706655
ref: 9

BOLT

€ 2.50

10

0151706905
ref: 10

BOLT (6X90)

€ 3.50

11

0711006307
ref: 11

BOLT

€ 3.00

12

0910306060
ref: 12

BOLT(6X100)

€ 2.50

13

0910308182
ref: 13

BOLT(8X125)

€ 4.50

14

0151708455
ref: 14

BOLT

€ 3.00

15

0151708605
ref: 15

BOLT 8X60

€ 3.50

16

0711008355
ref: 16

BOLT 8X35

€ 4.00

17

0910310135
ref: 17

BOLT 10X145

€ 6.00

18

0910310078
ref: 18

BOLT(10X150)

€ 8.50

19

0910310141
ref: 19

BOLT(10X125)

€ 6.00

20

0910312010
ref: 20

BOLT

€ 0.00

21

0910312011
ref: 21

BOLT

€ 0.00

22

0928027003
ref: 22

O-RING (D:3 ID:27)

€ 3.00

23

0949320014
ref: 23

JET,OIL GALLERY

€ 8.00

24

0949332006
ref: 24

JET,OIL GALLERY(16)

€ 8.00

25

0928004004
ref: 25

O RING(D:1.2,ID:4)

€ 2.00

26

0924604001
ref: 26

PLUG OIL GALLER

€ 5.50

27

1659105A00
ref: 27
GV1400GDG/GTG/GCG

UNION,OIL STAND

€ 6.50

28

1152105A00
ref: 28

PLATE,OIL SEPARATOR

€ 2.50

29

1139305A00
ref: 29

MAGNET, DUST CATCH

€ 11.50

30

0151706127
ref: 30

BOLT 6X12

€ 2.50

31

1659106B00
ref: 31
GV1400GDH/GCH/GDJ

UNION,OIL STAND

€ 6.00

32

0910410032
ref: 32

BOLT

€ 0.00

33

0910410030
ref: 33

BOLT

€ 0.00

34

0832211104
ref: 34

WASHER 10MM

€ 2.50

35

1161014A00
ref: 35

SPACER,ENG MTG(L:55)

€ 9.00

36

0915910052
ref: 36

NUT

€ 8.50

37

0916816002
ref: 37

GASKET(16X22X2) (NAS)

€ 2.00

38

0925926002
ref: 38

PLUG

€ 17.00

39

0928022012
ref: 39

O-RING

€ 1.50

40

0925920010
ref: 40

PLUG

€ 6.50

41

0928017003
ref: 41

O RING(D:3.1,ID:16.8)

€ 2.00

42

0924816008
ref: 42

PLUG

€ 4.00

43

0924816004
ref: 43

PLUG

€ 4.00

44

0925920011
ref: 44

PLUG

€ 0.00

45

0928017003
ref: 45

O RING(D:3.1,ID:16.8)

€ 2.00

46

1742105A00
ref: 46

CONNECTOR,WATER INLET

€ 36.00

47

0928032006
ref: 47

O RING(D:2.4,ID:31.7)

€ 2.50

48

0211206205
ref: 48

SCREW

€ 2.00

49

1741514300
ref: 49

BOLT,DRAIN

€ 2.00

50

0916808008
ref: 50

GASKET 8.2X14X1 (NAS)

€ 1.00
