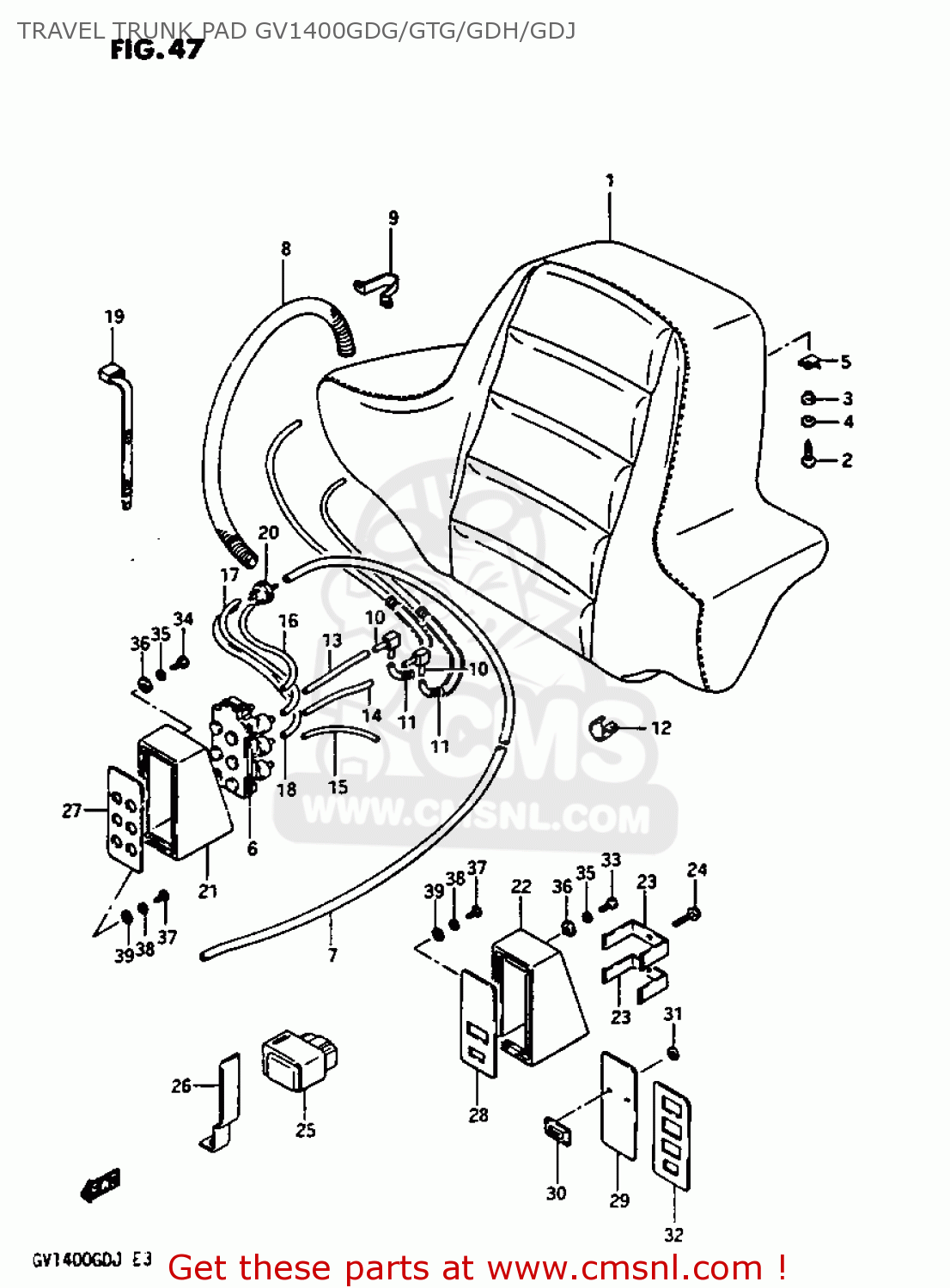

TRAVEL TRUNK PAD GV1400GDG/GTG/GDH/GDJ

ref

part #

description

quantity

1-1

4535024A034FT
ref: 1-1
GV1400GDC,FOR 7UM GV

PAD ASSEMBLY,TRAVEL TRUNK

€ 377.50

1-2

4535024A037VD
ref: 1-2
GV1400GDG,FOR 7UN

PAD ASSEMBLY

€ 377.50

1-3

4535024A134FT
ref: 1-3
GV1400GTG

PAD ASSEMBLY

€ 101.00

1-4

4535024A034FT
ref: 1-4
GV1400GDH/GV1400GDJ

PAD ASSEMBLY,TRAVEL TRUNK

€ 377.50

2

0314105205
ref: 2

SCREW

€ 1.50

3

4535824A10
ref: 3

SEAL,PAD ASSEMBLY,RIGHT

€ 0.00

4

0916006069
ref: 4

WASHER

€ 2.00

5

0914805019
ref: 5

NUT

€ 2.00

6-1

4540024A01
ref: 6-1
MODEL G

VALVE ASSEMBLY,SEAT

€ 617.50

6-2

4540024A01
ref: 6-2
MODEL H/J

VALVE ASSEMBLY,SEAT

€ 617.50

7

4542024A00
ref: 7

MOLDING,SEAT,LEFT

€ 0.00

8-1

4542724A01
ref: 8-1
MODEL G

PROTECTOR PAD ASSY

€ 0.00

8-2

4542724A02
ref: 8-2
MODEL H/J

PROTECTOR, TRUNK HOSE

€ 0.00

9

4542824A00
ref: 9

HOLDER, TRUNK HOSE

€ 0.00

10

0936704005
ref: 10

UNION

€ 4.00

11

0944007052
ref: 11

SPRING

€ 0.00

12

0940320301
ref: 12

CLAMP

€ 2.00

13

4542224A10
ref: 13

HOSE, OUTLET NO.1

€ 0.00

14

4542224A20
ref: 14

HOSE, OUTLET NO.2

€ 0.00

15

4542224A30
ref: 15

HOSE, OUTLET NO.3

€ 0.00

16

4542324A10
ref: 16

HOSE, INLET NO.1

€ 0.00

17

4542324A20
ref: 17

HOSE, INLET NO.2

€ 0.00

18

4542324A30
ref: 18

HOSE, INLET NO.3

€ 0.00

19

0940718402
ref: 19

CLAMP(L:165)

€ 2.50

20

0936704004
ref: 20

4-WAY

€ 11.50

21-1

4544024A014FT
ref: 21-1
GV14000GDG/GTG FOR 7

PAD ASSEMBLY,TRAVEL TRUNK

€ 63.00

21-2

4545024A014FS
ref: 21-2
GV1400GDG/GTG FOR 7U

PAD ASSEMBLY,TRAVEL TRUNK

€ 66.50

21-3

4544024A014FT
ref: 21-3
GV1400GDH/GV1400GDJ

PAD ASSEMBLY,TRAVEL TRUNK

€ 63.00

22-1

4545024A014FT
ref: 22-1
GV1400GDG/GTG FOR 7U

PAD ASSEMBLY,TRAVEL TRUNK

€ 60.00

22-2

4545024A014FS
ref: 22-2
GV1400GDG/GTG FOR 7U

PAD ASSEMBLY,TRAVEL TRUNK

€ 66.50

22-3

4545024A014FT
ref: 22-3
GV1400GDH/GV1400GDJ

PAD ASSEMBLY,TRAVEL TRUNK

€ 60.00

23

4544424A00
ref: 23
GV1400GTC

PAD ASSEMBLY,TRAVEL TRUNK

€ 0.00

24

0912504017
ref: 24
GV1400GTG

SCREW

€ 2.50

25

4547024A00
ref: 25

RELAY ASSEMBLY,SEAT

€ 47.00

26

4543024A00
ref: 26

BRACKET, SEAT RELAY

€ 0.00

27

4548024A00
ref: 27

PANEL COMP,VALVE ASSEMBLY

€ 37.00

28

4548024A10
ref: 28

PANEL COMP,TUNER ASSEMBLY

€ 35.00

29

4548024A20
ref: 29
GV1400GTG

PANEL COMP,PAD ASSEMBLY

€ 0.00

30

6822124A00
ref: 30

EMBLEM

€ 11.50

31

0914803002
ref: 31

NUT

€ 3.00

32

4548024A90
ref: 32
OPT

PANEL,TUNER ASSEMBLY NO

€ 0.00

33

0110405165
ref: 33

BOLT, PAD

€ 1.50

34

0110405125
ref: 34

BOLT, PAD UPPER LH

€ 1.50

35

0832121055
ref: 35

WASHER,LOCK

€ 3.00

36

0916905010
ref: 36

WASHER

€ 3.00

37

0211204128
ref: 37

SCREW

€ 1.50

38

0832121047
ref: 38

WASHER,LOCK 4M

€ 2.00

39

0832221047
ref: 39

WASHER 4MM

€ 2.00
