TRAVEL TRUNK GV1400GCG

GV1400GC 1987 (H) (E01)

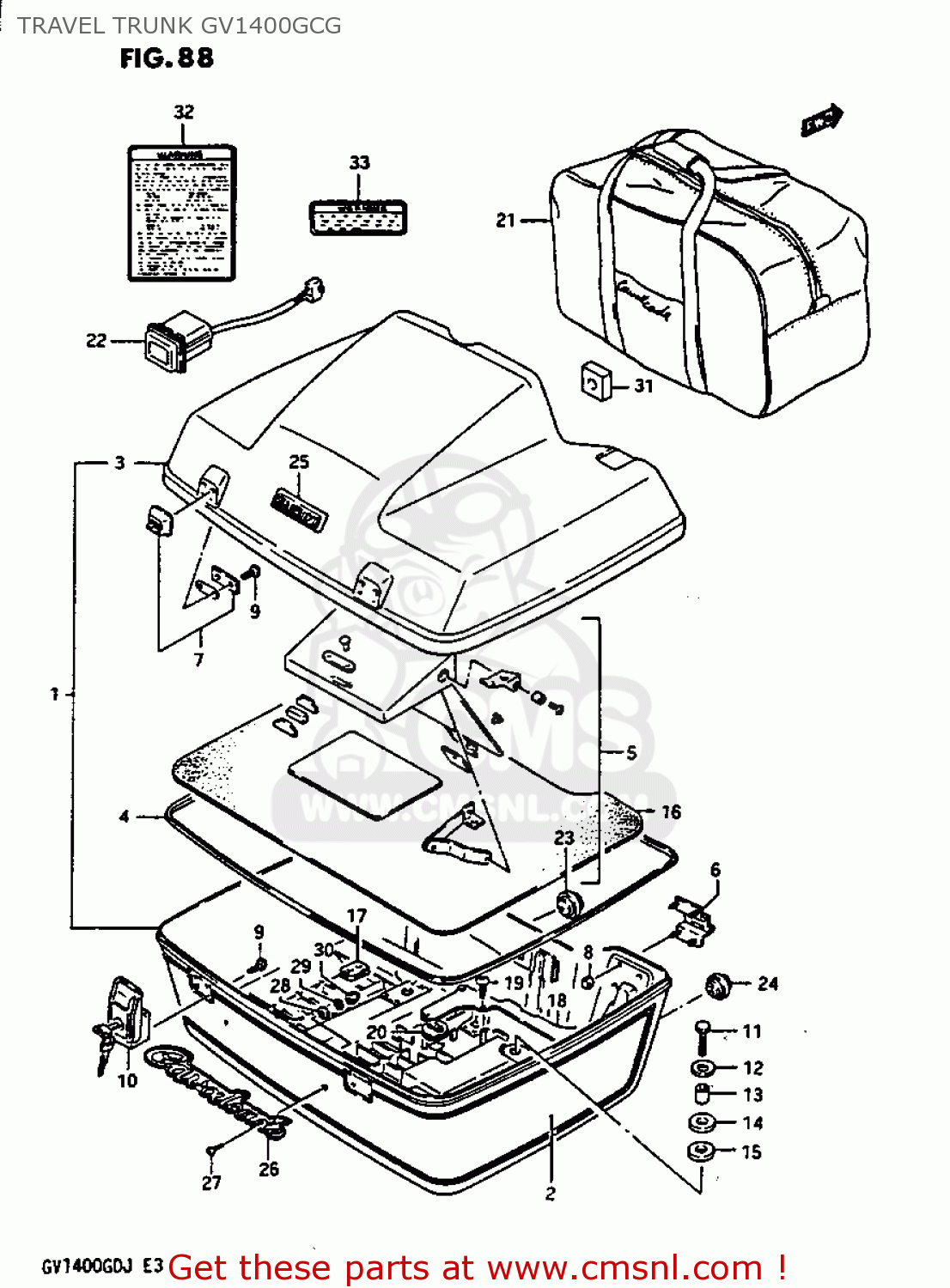

Travel trunk gv1400gcg diagram GV1400GC 1987 (H) (E01)

TRAVEL TRUNK GV1400GCG GV1400GC 1987 (H) (E01)

TRAVEL TRUNK GV1400GCG GV1400GC 1987 (H) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

9310024A008RB
ref: 1-1

TRUNK ASSY, TRAVEL

€ 1,300.00

1-2

9310024A408VA
ref: 1-2

TRUNK ASSEMBLY,TRAVEL

€ 1,574.50

2-1

6879024A208JB
ref: 2-1
FOR 8RB

TAPE SET,TRAVEL TRUNK

€ 0.00

2-2

6879024A208UZ
ref: 2-2
FOR 8VA

TAPE SET,TRAVEL TRUNK

€ 0.00

3-1

9312024A1027U
ref: 3-1
FOR 8RB

LID,TRAVEL TRUNK

€ 518.00

3-2

9312024A1024V
ref: 3-2
FOR 8VA

LID,TRAVEL TRUNK

€ 518.00

4

9311524A00
ref: 4

SEAL,TRAVEL TRUNK LID

€ 18.50

5

9314024A01
ref: 5

MIRROR,TRAVEL TRUNK

€ 110.00

6

9313024A01
ref: 6

HINGE,TRAVEL TRUNK

€ 19.50

7

9331624A02
ref: 7

PLATE,TRUNK LID LOCK

€ 15.00

8

0831311045
ref: 8

NUT

€ 0.00

9

0214205084
ref: 9

SCREW

€ 2.00

10

9330024820
ref: 10

LOCK SET,SIDE BAG

€ 96.50

11

0150006257
ref: 11

BOLT

€ 2.00

12

0916006105
ref: 12

WASHER

€ 0.00

13

0918006055
ref: 13

SPACER(6.3X9.3X16.5)

€ 4.00

14

0932009030
ref: 14

CUSHION

€ 0.00

15

0932009030
ref: 15

CUSHION

€ 0.00

16

9541524A00
ref: 16

SEAT,TRAVEL TRUNK BODY

€ 20.00

17

0930920003
ref: 17

GROMMET

€ 0.00

18

9311624A00
ref: 18

COVER, AIR HOSE

€ 9.50

19

0354104105
ref: 19

SCREW

€ 1.50

20

0930924001
ref: 20

GROMMET

€ 0.00

21

9341024A01
ref: 21

LUGGAGE BAG,TRAVEL TRUNK

€ 115.00

22

6268024A00
ref: 22
OPT

SWITCH ASSEMBLY,AIR AUXILIARY

€ 37.50

23

4542524A00
ref: 23

GROMMET

€ 0.00

24

4542624A90
ref: 24

GROMMET, WIRE

€ 0.00

25

6828524A00
ref: 25

EMBLEM,TRAVEL TRUNK,UPPER

€ 21.00

26

6828624A00
ref: 26

EMBLEM,TRAVEL TRUNK,LOWER

€ 45.50

27

0213203165
ref: 27

SCREW

€ 1.50

28

0832221035
ref: 28

WASHER

€ 1.50

29

0916203002
ref: 29

WASHER

€ 1.50

30

0831311035
ref: 30

NUT

€ 0.00

31

4542924A00
ref: 31

SEAL

€ 0.00

32

6861324A20
ref: 32

LABEL (WARNING TRAVEL T

€ 0.00

33

6861924A00
ref: 33

LABEL, WARNING

€ 0.00
