FRONT CALIPERS

GV1400GC 1987 (H) (E01)

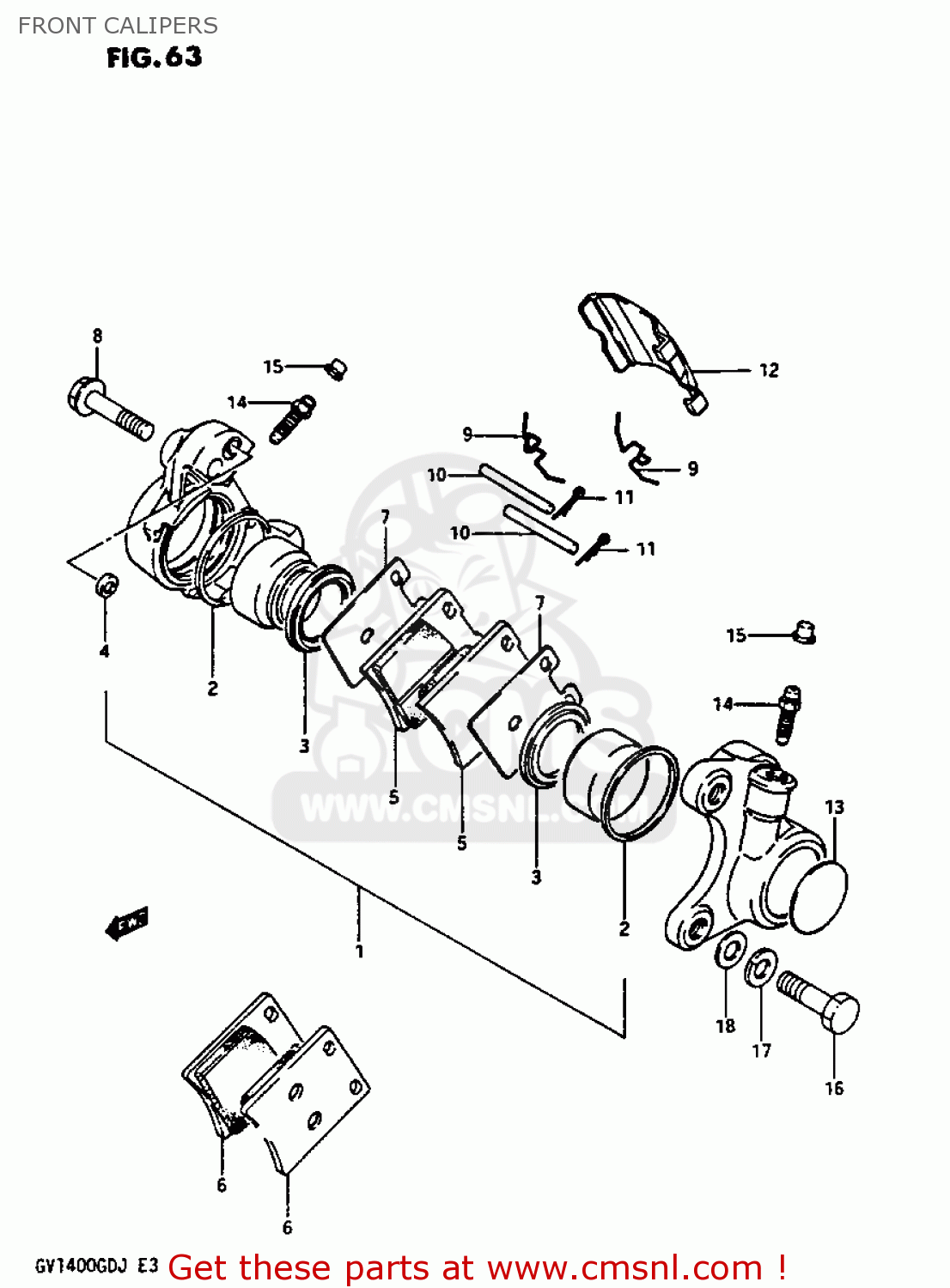

Front calipers diagram GV1400GC 1987 (H) (E01)

FRONT CALIPERS GV1400GC 1987 (H) (E01)

FRONT CALIPERS GV1400GC 1987 (H) (E01)

prices are in EUR

ref

part #

description

quantity

1

5910024A00
ref: 1
GVU400GDG~-F.NO.1037

CALIPER ASSEMBLY,RIGHT (ASB)

€ 595.50

1

5930024A00
ref: 1
GV1400GDG ~F.NO.1037

CALIPER ASSEMBLY,LEFT (ASB)

€ 439.00

1

5910024A10
ref: 1
GV1400GDG F.NO.10376

CALIPER ASSEMBLY,RIGHT (ASB)

€ 228.00

1

5930024A10
ref: 1
GV1400GDG F.NO.10376

CALIPER ASSEMBLY,LEFT (ASB)

€ 206.50

1-1

6910024821
ref: 1-1
GV1400GDG ~F.NO.1037

PISTON SET

€ 102.00

1-2

5910024821
ref: 1-2
GV1400GDG F.NO.10376

PISTON SET

€ 168.00

2

5513666310
ref: 2

SEAL,FR CALIPE

€ 8.50

3

6910845000
ref: 3

BOOT,PISTON

€ 10.00

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

5913038B10
ref: 5
GV1400GDG ~F.NO.1037

PAD

€ 41.50

6

5913024A10
ref: 6
GV1400GDG F.NO.10376

PAD

€ 32.00

7

5937133410
ref: 7
GV1400GDG ~F.NO.1037

SHIM,PAD

€ 15.00

8

5914516700
ref: 8

BOLT,HOUSING

€ 8.00

9

5914316700
ref: 9

SPRING

€ 7.50

10

6914145000
ref: 10

PIN,PAD

€ 6.50

11

6914245000
ref: 11

CLIP,PAD PIN

€ 4.50

12

5915124A00
ref: 12

COVER

€ 18.00

13

5915224A00
ref: 13

CAP,CALIPER

€ 23.50

14

5912118410
ref: 14

BLEEDER

€ 8.00

15

5912218410
ref: 15

CAP,BREATHER

€ 6.00

16

0910410029
ref: 16

BOLT(10X38)

€ 3.50

17

0832121107
ref: 17

WASHER,LOCK,10

€ 2.00

18

0832221108
ref: 18

WASHER

€ 2.50
