Buy Suzuki GV Parts Online


FRAME UPPER COVER MODEL G

GV1400GC 1987 (H) (E01)

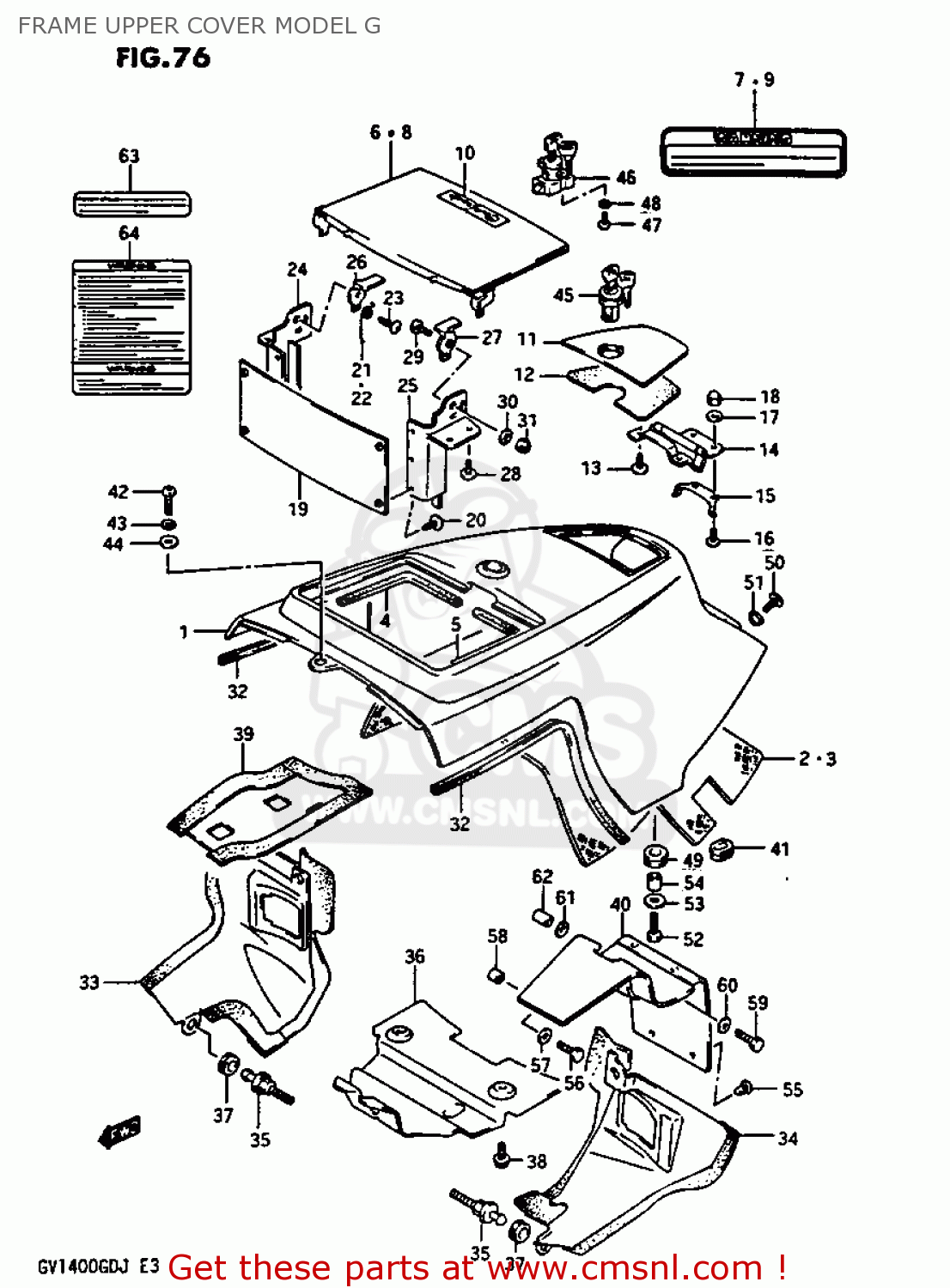

Frame upper cover model g diagram GV1400GC 1987 (H) (E01)

FRAME UPPER COVER MODEL G GV1400GC 1987 (H) (E01)
FRAME UPPER COVER MODEL G GV1400GC 1987 (H) (E01)
FRAME UPPER COVER MODEL G GV1400GC 1987 (H) (E01)
prices are in EUR
ref
part #
description
quantity
1-1
4730024A0024G
ref: 1-1
GV1409GDG
COVER ASSEMBLY,FRAME,UPPER
€ 940.00
1-2
4730024A0024H
ref: 1-2
GV1409GDG
COVER ASSEMBLY,FRAME,UPPER
€ 940.00
1-3
4730024A0012S
ref: 1-3
GV1409GTG
COVER ASSEMBLY,FRAME,UPPER
€ 940.00
1-4
4730024A0024K
ref: 1-4
GV1409GTG
COVER ASSEMBLY,FRAME,UPPER
€ 0.00
1-5
4730024A0027U
ref: 1-5
GV1400GCG
COVER ASSEMBLY,FRAME,UPPER
€ 0.00
1-6
4730024A0024V
ref: 1-6
GV1400GCG
COVER ASSEMBLY,FRAME,UPPER
€ 940.00
2
4731524A02
ref: 2
CUSHION,FRAME COVER,UPPER
€ 46.00
3
4731624A02
ref: 3
CUSHION,FRAME COVER,UPPER
€ 46.00
4
4739124A01
ref: 4
CUSHION,AUDIO LID SIDE
€ 0.00
5
4739224A01
ref: 5
CUSHION,AUDIO LID SIDE
€ 0.00
6-1
473002482024G
ref: 6-1
GV1409GDG
LID SET,AUDIO
€ 77.50
6-2
473002482024H
ref: 6-2
GV1400GDG
LID SET,AUDIO
€ 230.50
6-3
473002484027U
ref: 6-3
GV1400GCG
COVER ASSEMBLY,FRAME,UPPER
€ 230.50
6-4
473002484024V
ref: 6-4
GC1400GCG
COVER ASSEMBLY,FRAME,UPPER
€ 230.50
7-1
6861724A00
ref: 7-1
GV1400GDG
LABEL (WARNING AUDIO LI
€ 0.00
7-2
6861824A00
ref: 7-2
GV1400GCG
LABEL (WARNING COVER CO
€ 0.00
8-1
473002483012S
ref: 8-1
GV1409GTG
LID SET,AUDIO
€ 83.50
8-2
473002483024K
ref: 8-2
GV1400GTG
LID SET,AUDIO
€ 91.50
9
6861124A00
ref: 9
LABEL
€ 0.00
10
6828224A007ZW
ref: 10
EMBLEM,AUDIO LID
6828224A007ZW
€ 9.00
11-1
4738024A0024G
ref: 11-1
GV1400GDG
LID,FUEL
€ 28.00
11-2
4738024A0024H
ref: 11-2
GV1400GDG
LID,FUEL
€ 28.00
11-3
4738024A0012S
ref: 11-3
GV1400GTG
LID,FUEL
€ 28.00
11-4
4738024A0024K
ref: 11-4
GV1400GTG
LID,FUEL
€ 28.00
11-5
4738024A0027U
ref: 11-5
GV1409GCF
LID,FUEL
€ 28.00
11-6
4738024A0024V
ref: 11-6
GV1400GCG
LID,FUEL
€ 28.00
12
4738524A01
ref: 12
CUSHION,FUEL LID (NA)
€ 0.00
13
0354105083
ref: 13
SCREW 5X8
0354105083
€ 2.00
14
4738224A01
ref: 14
HINGE,FUEL LID
€ 16.00
15
4738824A00
ref: 15
SPRING,FUEL LID HINGE
€ 6.00
16
0214204105
ref: 16
SCREW
0214204105
€ 1.50
17
0832221045
ref: 17
WASHER
€ 5.00
18
0831311045
ref: 18
NUT
€ 0.00
19
4763524A01
ref: 19
HOLDER,AUDIO LID
€ 15.00
20
0354105125
ref: 20
SCREW
0354105125
€ 2.00
21
0944407001
ref: 21
SPRING
€ 0.00
22
0944407002
ref: 22
SPRING
0944407002
€ 2.50
23
0354104125
ref: 23
SCREW
0354104125
€ 1.50
24
4763324A00
ref: 24
RAIL,RIGHT
€ 14.00
25
4763424A00
ref: 25
RAIL,LEFT
€ 13.50
26
4763124A01
ref: 26
RAIL PIECE,RIGHT
€ 8.50
27
4763224A01
ref: 27
RAIL PIECE,LEFT
€ 3.00
28
0354105108
ref: 28
SCREW, RAIL
€ 1.50
29
0211205164
ref: 29
SCREW
0211205164
€ 2.00
30
0821205161
ref: 30
WASHER
0821205161
€ 1.50
31
0831921055
ref: 31
NUT 8MM
0831921055
€ 1.50
32
4738924A01
ref: 32
MOLDING,COVER FRAME,UPPER
€ 8.00
33-1
4781024A01
ref: 33-1
GV1400GDG/GTG
COVER,INNER,RIGHT
€ 43.00
33-2
4781024A01
ref: 33-2
GV1400GCG
COVER,INNER,RIGHT
€ 43.00
34-1
4782024A01
ref: 34-1
GV1409GDG/GTG
COVER,INNER,LEFT
€ 42.00
34-2
4782024A01
ref: 34-2
GV1400GCG
COVER,INNER,LEFT
€ 42.00
35
4725038A01
ref: 35
BOSS,FRAME COVER
4725038A01
€ 6.50
36
4785024A00
ref: 36
COVER COMP,INNER
€ 65.50
37
0932008013
ref: 37
CUSHION
0932008013
€ 4.00
38
0151706127
ref: 38
BOLT 6X12
€ 2.50
39
4783024A00
ref: 39
COVER COMP,UPPER,RIGHT
€ 20.00
40
4784024A00
ref: 40
COVER COMP,UPPER,LEFT
€ 29.50
41
0930805019
ref: 41
GROMMET
0930805019
€ 8.00
42
0211206203
ref: 42
SCREW, 6X20
0211206203
€ 2.00
43
0832121063
ref: 43
LOCK WASHER
€ 2.00
44
0916006039
ref: 44
WASHER (6.5X18X1.6)
0916006039
€ 2.00
45
9570024820
ref: 45
LOCK SET,TOOL HOLDER
9570024820
€ 61.50
46
9570024880
ref: 46
LOCK SET,AUDIO LID
€ 69.00
47
0211203068
ref: 47
SCREW
0211203068
€ 2.00
48
0916203001
ref: 48
WASHER,LOCK
0916203001
€ 1.50
49
0932008018
ref: 49
CUSHION
0932008018
€ 4.00
50
0214206164
ref: 50
SCREW
0214206164
€ 2.50
51
0916906034
ref: 51
WASHER
0916906034
€ 2.50
52
0110706256
ref: 52
BOLT
€ 2.50
53
0832211063
ref: 53
WASHER
0832211063
€ 2.00
54
0918006044
ref: 54
SPACER (6.1X8X9.5)
0918006044
€ 2.50
55
0922906004
ref: 55
RIVET
€ 0.00
56
0150006207
ref: 56
BOLT
0150006207
€ 2.00
57
0916006052
ref: 57
WASHER(6.5X16X1.2)
0916006052
€ 2.00
58
0918006141
ref: 58
SPACER (6.5X12X8)
€ 4.00
59
0110706255
ref: 59
GV1409GTG
BOLT
0110706255
€ 2.50
60
0832221064
ref: 60
GV1400GTG
WASHER
0832221064
€ 2.00
61
0916006031
ref: 61
GV1400GTG
WASHER (6.3X14X1.6)
€ 2.00
62
0918006031
ref: 62
GV1400GTG
SPACER (6.8X10X20)
0918006031
€ 2.00
63
6861424A01
ref: 63
LABEL (WARNING AUDIO BO
€ 0.00
64-1
6861624A02
ref: 64-1
GV1400GDG/GTG
LABEL (WARNING ACCESS &
€ 0.00
64-2
6861624A20
ref: 64-2
GV1400GCG
LABEL (WARNING)
€ 0.00
