AIR CLEANER

GV1400GD 1988 (J) (E01)

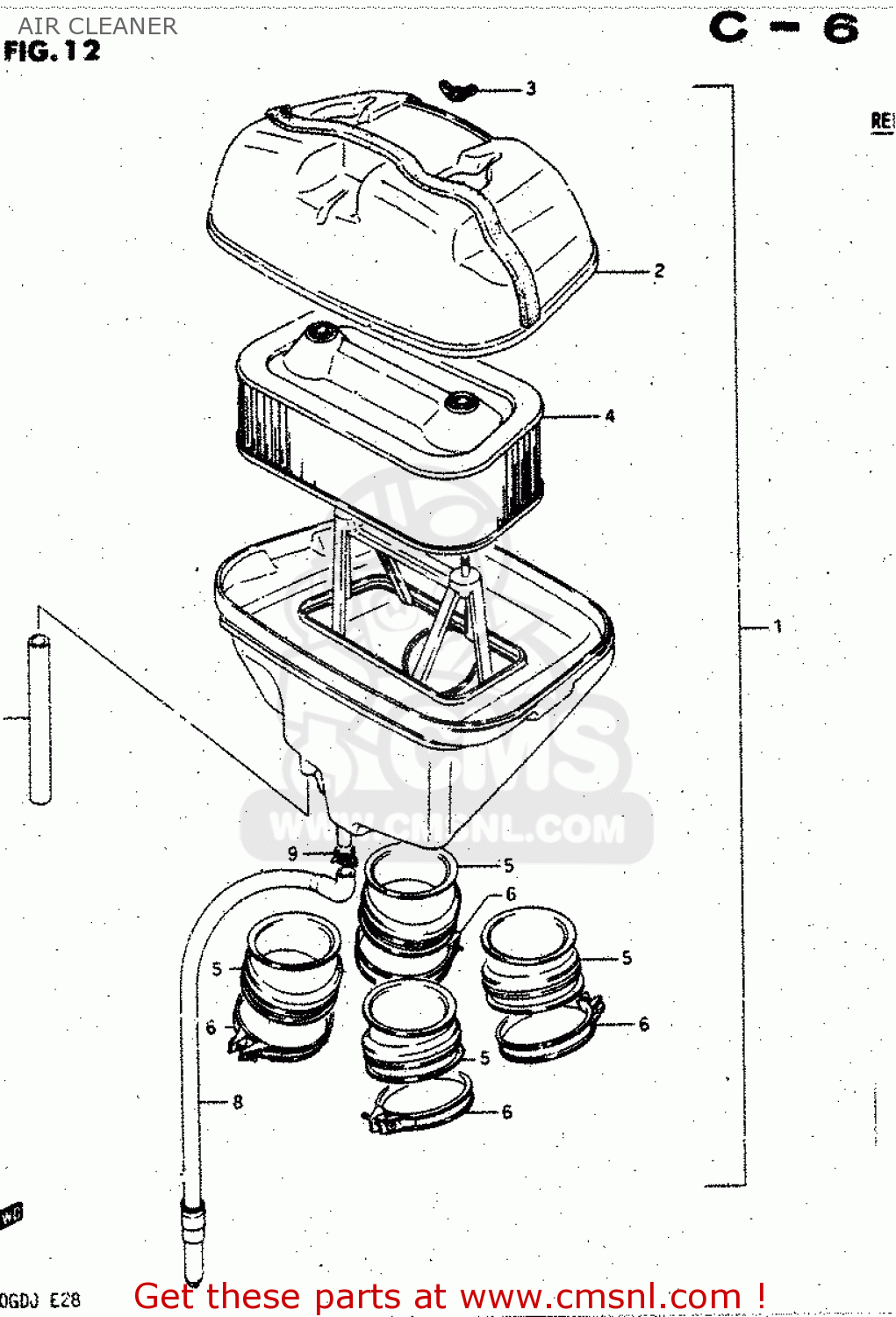

Air cleaner diagram GV1400GD 1988 (J) (E01)

AIR CLEANER GV1400GD 1988 (J) (E01)

AIR CLEANER GV1400GD 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

1

1370024A00
ref: 1

CLEANER ASSEMBLY,AIR

€ 0.00

2

1374024A00
ref: 2

CAP,AIR CLEANER

€ 51.50

3

0831712058
ref: 3

NUT, WING

€ 2.00

4

1378024A00
ref: 4

FILTER ASSY

€ 51.00

5

1388105A00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 13.50

6

0940258207
ref: 6

CLAMP

€ 5.50

7

1385100130
ref: 7

TUBE,BREATHER

€ 13.50

8

1387024A00
ref: 8

DRAIN TUBE

€ 23.50

9

1382543400
ref: 9

CLIP

€ 2.50
