RADIATOR

GV1400GD 1988 (J) (E01)

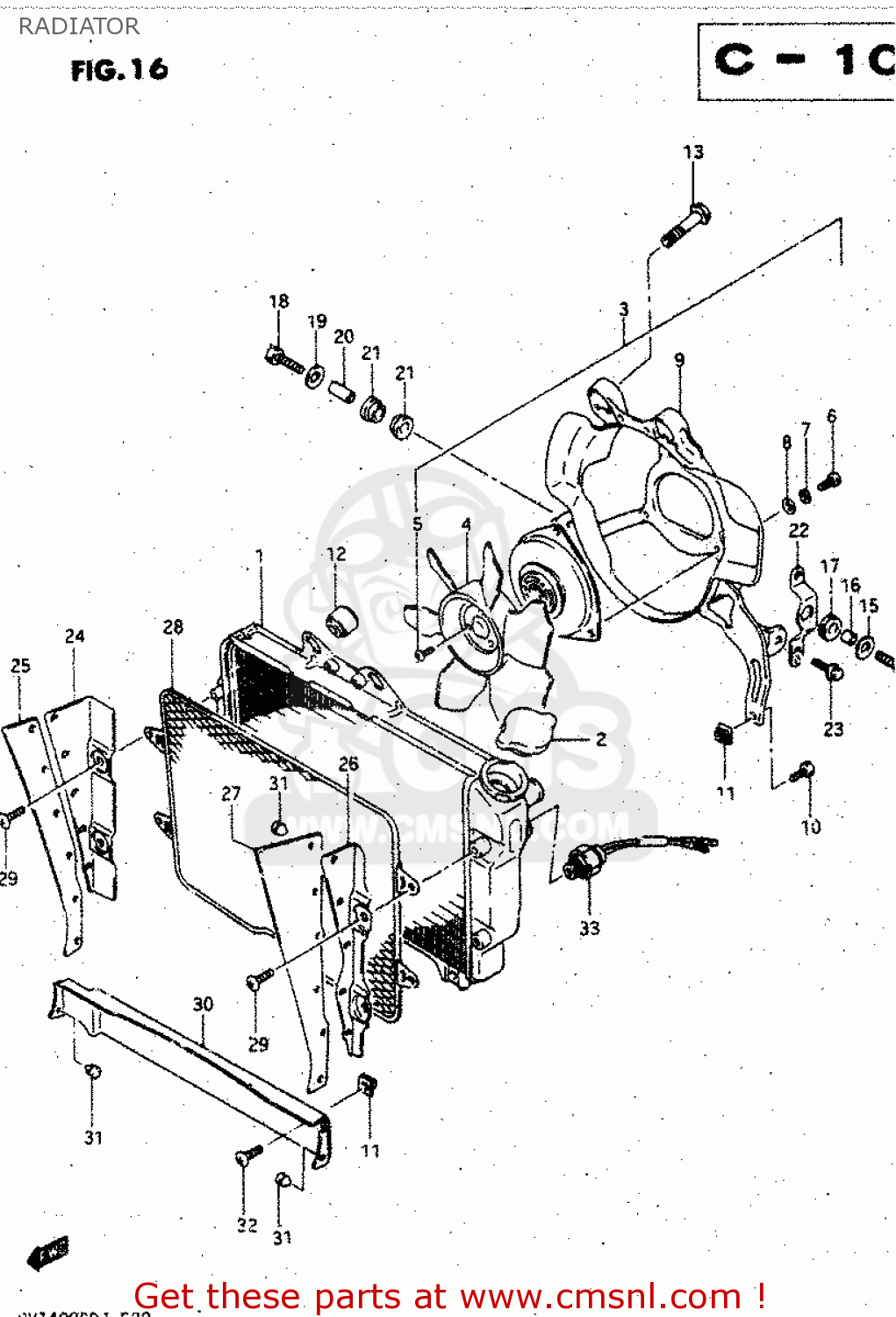

Radiator diagram GV1400GD 1988 (J) (E01)

RADIATOR GV1400GD 1988 (J) (E01)

RADIATOR GV1400GD 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

1

1771024A00
ref: 1

RADIATOR,WATER

€ 852.50

2

1773024A00
ref: 2

CAP,RADIATOR

€ 40.00

3

1780024A00
ref: 3

FAN ASSEMBLY,RADIATOR

€ 416.00

4

1782024A00
ref: 4

FAN

€ 55.50

5

1780105A00
ref: 5

BOLT

€ 2.00

6

0211205106
ref: 6

SCREW 5X10

€ 2.00

7

0832121056
ref: 7

LOCK WASHER

€ 3.00

8

0832221056
ref: 8

WASHER

€ 2.50

9

1777124A00
ref: 9

SHROUD

€ 124.00

10

1770105A00
ref: 10

BOLT,RADIATOR FAN

€ 2.00

11

1770205A00
ref: 11

NUT,RADIATOR

€ 2.50

12

1778005A00
ref: 12

CUSHION,RADIATOR NO.1

€ 7.50

13

0151708355
ref: 13

BOLT

€ 3.50

14

0110706166
ref: 14

BOLT

€ 2.00

15

0916006057
ref: 15

WASHER

€ 2.00

16

0918007005
ref: 16

SPACER (7X9X7)

€ 2.50

17

0932008032
ref: 17

CUSHION

€ 3.00

18

0910006033
ref: 18

BOLT(6X35)

€ 12.50

19

0916006012
ref: 19

WASHER(6,5X22X1.6)

€ 2.00

20

0918006107
ref: 20

SPACER (6.4X9X20)

€ 3.00

21

0932009013
ref: 21

CUSHION

€ 2.50

22

1774124A00
ref: 22

BRACKET COMP,RADIATOR

€ 0.00

23

0151706167
ref: 23

BOLT 6X16

€ 1.50

24

1775124A00
ref: 24

PLATE,RADIATOR,RIGHT

€ 7.50

25

1775224A01
ref: 25

SEAL,RADIATOR,RIGHT

€ 10.00

26

1776124A00
ref: 26

PLATE,RADIATOR,LEFT

€ 8.00

27

1776224A01
ref: 27

COVER,RADIATOR

€ 16.00

28

1779824A00
ref: 28

NET, RADIATOR

€ 0.00

29

0214206085
ref: 29

SCREW

€ 1.50

30

1776524A10
ref: 30

COVER,RADIATOR,LOWER

€ 9.50

31

0932106013
ref: 31

CUSHION

€ 2.50

32

0214206104
ref: 32

SCREW

€ 2.00

33

1768024A01
ref: 33

SWITCH

€ 106.50
