FRONT FORK (MODEL H/J)

GV1400GD 1988 (J) (E01)

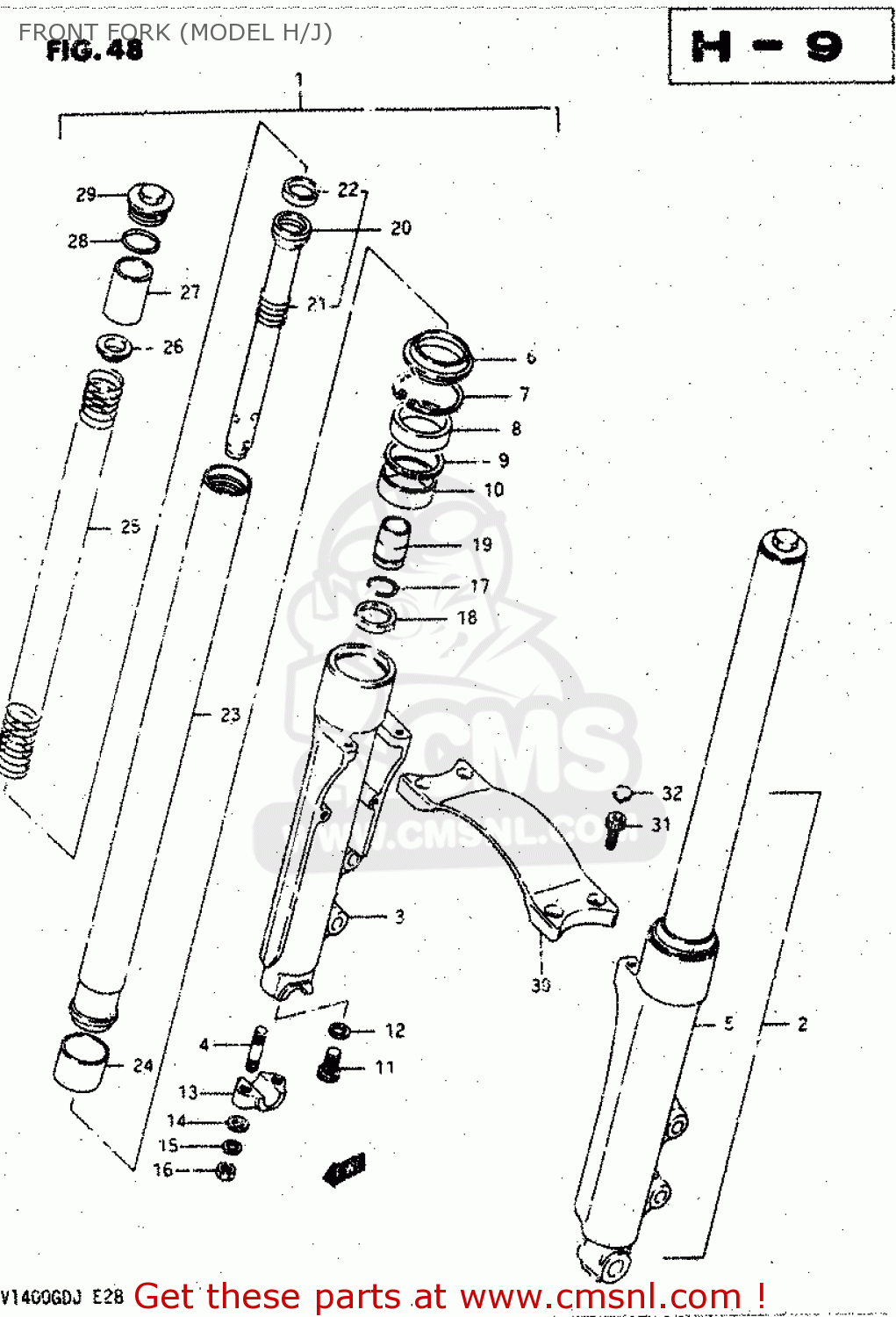

Front fork (model h/j) diagram GV1400GD 1988 (J) (E01)

FRONT FORK (MODEL H/J) GV1400GD 1988 (J) (E01)

FRONT FORK (MODEL H/J) GV1400GD 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

1

5110324A20
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 841.50

2

5110424A20
ref: 2

DAMPER ASSEMBLY,LEFT

€ 841.50

3

5113024A20
ref: 3

TUBE,OUTER,RIGHT

€ 433.50

4

0141108308
ref: 4

STUD 8X30

€ 2.00

5

5114024A20
ref: 5

TUBE,OUTER,LEFT

€ 433.50

6

5117305A00
ref: 6

DUST SEAL,FRONT FORK

€ 18.50

7

5115649440
ref: 7

RING,OIL SEAL STOPPER

€ 5.50

8

5115305A00
ref: 8

OIL SEAL,FRONT FORK

€ 22.00

9

5115805A00
ref: 9

WASHER,FORK OIL SEAL

€ 5.00

10

5116705A00
ref: 10

METAL,SLIDE

€ 20.50

11

5114740300
ref: 11

BOLT,CYLINDER

€ 5.50

12

5114840300
ref: 12

GASKET,CYLINDER (NAS)

€ 2.50

13

5113249440
ref: 13

HOLDER,AXLE

€ 28.00

14

0832211088
ref: 14

WASHER

€ 2.00

15

0832131086
ref: 15

WASHER,LOCK,8.

€ 2.50

16

0914008005
ref: 16

NUT (8MM)

€ 1.50

17

5119805A00
ref: 17

RING,SNAP

€ 0.00

18

5119324A00
ref: 18

VALVE

€ 12.50

19

5119524A00
ref: 19

PIECE,OIL LOCK

€ 0.00

20

5114624A00
ref: 20

CYLINDER

€ 84.00

21

5117724A00
ref: 21

SPRING,REBOUND

€ 5.50

22

5119605A00
ref: 22

RING,PISTON

€ 7.50

23

5111024A00
ref: 23

TUBE,INNER

€ 290.00

24

5112105A00
ref: 24

METAL,SLIDE FR FORK

€ 20.50

25

5117124A00
ref: 25

SPRING

€ 51.00

26

5117224A00
ref: 26

GUIDE,SPRING

€ 3.00

27

5117624A00
ref: 27

SPACER,SPRING

€ 6.50

28

5111740300
ref: 28

O RING

€ 2.50

29

5135124A00
ref: 29

BOLT,FORK

€ 35.50

30

5311524A20
ref: 30

BRACE,FORK

€ 68.50

31

0711008208
ref: 31

BOLT

€ 3.00

32

0925006009
ref: 32

CAP(OD:14.5)

€ 3.50
