GENERATOR

GV1400GD 1988 (J) (E01)

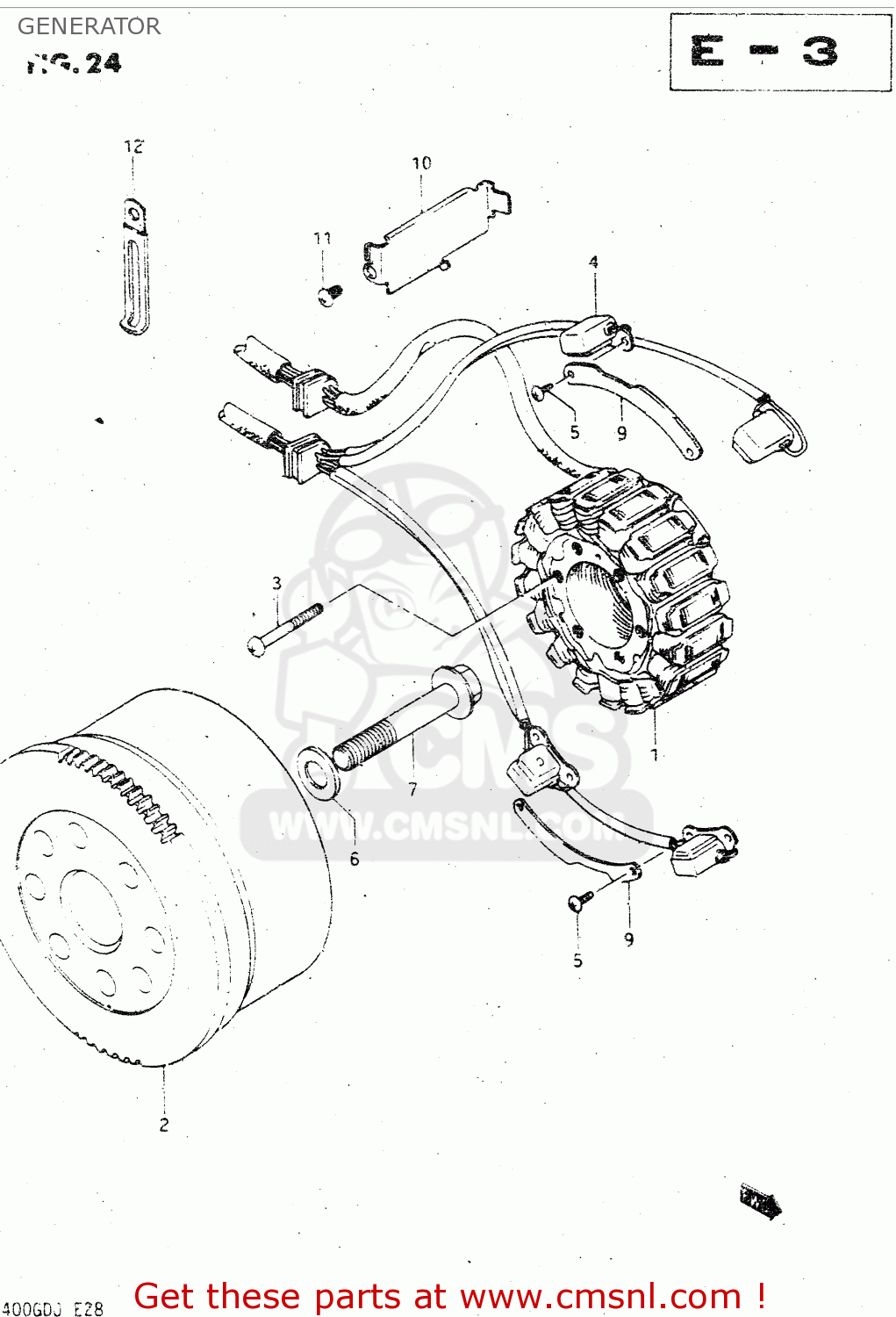

Generator diagram GV1400GD 1988 (J) (E01)

GENERATOR GV1400GD 1988 (J) (E01)

GENERATOR GV1400GD 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

1

3210124A00
ref: 1

STARTER ASSY

€ 830.00

2

3210224A00
ref: 2

ROTOR ASSEMBLY

€ 648.00

3

0211206457
ref: 3

SCREW

€ 2.00

4

3216024A00
ref: 4

SENSOR ASSEMBLY,TIMING

€ 256.00

5

0215204128
ref: 5

SCREW

€ 2.00

6

0916014037
ref: 6

WASHER

€ 0.00

7

0910314007
ref: 7

BOLT

€ 0.00

8

0834131059
ref: 8

KEY

€ 3.00

9

3237124A10
ref: 9

CLAMP,MAGNETO LEAD WIRE

€ 0.00

10

3237124A00
ref: 10

CLAMP,MAGNETO LEAD WIRE

€ 0.00

11

0211206108
ref: 11

SCREW

€ 1.50

12

0940408413
ref: 12

CLAMP

€ 3.50
