SIDE BAG (MODEL H)
GV1400GD 1988 (J) (E01)

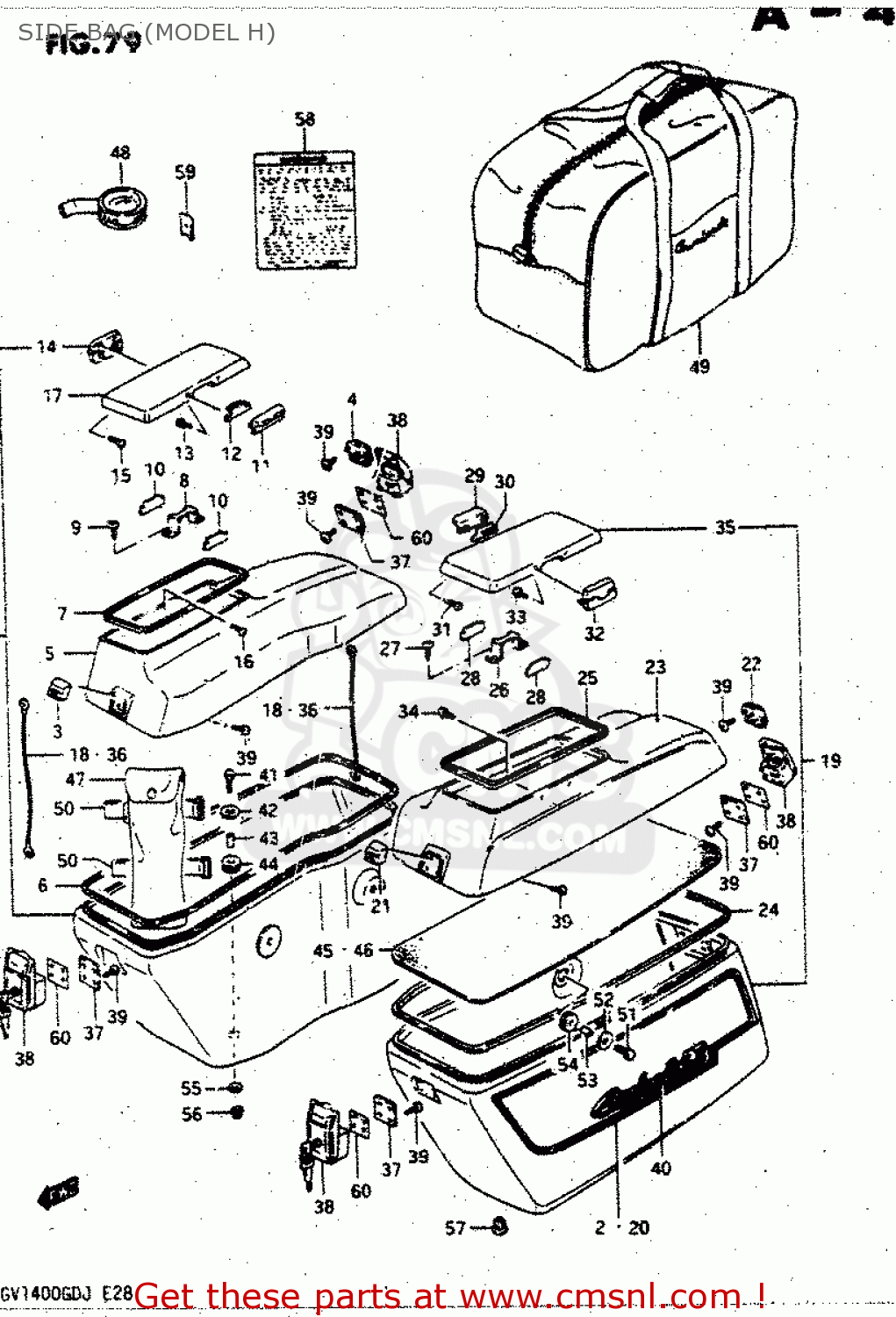

Side bag (model h) diagram GV1400GD 1988 (J) (E01)
SIDE BAG (MODEL H) GV1400GD 1988 (J) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
9540024A5120H
ref: 1-1
SIDE BAG ASSEMBLY,RIGHT
€ 1,457.50
1-2
9540024A5134B
ref: 1-2
SIDE BAG ASSEMBLY,RIGHT
€ 1,388.50
2-1
6826024A309EC
ref: 2-1
FOR 20H
TAPE SET,SIDE BAG STRIP
€ 0.00
2-2
6826024A309ED
ref: 2-2
FOR 34B
TAPE SET,SIDE BAG STRIP
€ 0.00
3
9331624A02
ref: 3
PLATE,TRUNK LID LOCK
€ 15.00
4
9331624A13
ref: 4
PLATE,SIDE BAG LID LOCK
€ 15.00
5-1
9544024A2020H
ref: 5-1
FOR 20H
LID,SIDE BAG,RIGHT
€ 433.50
5-2
9544024A2034B
ref: 5-2
FOR 34B
LID,SIDE BAG,RIGHT
€ 433.50
6
9542224A01
ref: 6
SEAL,SIDE BAG
€ 10.50
7
9544624A02
ref: 7
SEAL,SIDE BAG
€ 9.00
8
9551624A00
ref: 8
HOLDER,LID LOCK MAGNET
€ 4.00
9
0351103125
ref: 9
SCREW
€ 0.00
10
9542324A10
ref: 10
PLATE,LID LOCK
€ 4.00
11
9544724A00
ref: 11
LEVER,SIDE POCKET OPEN
€ 19.50
12
9542424A00
ref: 12
PLATE,LID LOCK NO.1
€ 4.50
13
0214204065
ref: 13
SCREW
€ 1.50
14
9544324A00
ref: 14
HINGE,LID SIDE BAG POCKET
€ 47.00
15
0214204065
ref: 15
SCREW
€ 1.50
16
0214204125
ref: 16
SCREW
€ 1.50
17
9544824A00
ref: 17
LID,SIDE BAG POCKET
€ 65.50
18
9319124A00
ref: 18
BAND,SIDE BAG LID
€ 8.00
19-1
9550024A5120H
ref: 19-1
SIDE BAG ASSEMBLY,LEFT
€ 1,388.50
19-2
9550024A5134B
ref: 19-2
SIDE BAG ASSEMBLY,LEFT
€ 1,388.50
20-1
6829024A309EC
ref: 20-1
FOR 20H
TAPE SET,SIDE BAG STRIP
€ 0.00
20-2
6829024A309ED
ref: 20-2
FOR 34B
TAPE SET,SIDE BAG STRIP
€ 0.00
21
9331624A02
ref: 21
PLATE,TRUNK LID LOCK
€ 15.00
22
9331624A13
ref: 22
PLATE,SIDE BAG LID LOCK
€ 15.00
23-1
9554024A2020H
ref: 23-1
FOR 20H
LID,SIDE BAG,LEFT
€ 389.50
23-2
9554024A2034B
ref: 23-2
FOR 34B
LID,SIDE BAG,LEFT
€ 389.50
24
9542224A01
ref: 24
SEAL,SIDE BAG
€ 10.50
25
9544624A02
ref: 25
SEAL,SIDE BAG
€ 9.00
26
9551624A00
ref: 26
HOLDER,LID LOCK MAGNET
€ 4.00
27
0351103125
ref: 27
SCREW
€ 0.00
28
9542324A10
ref: 28
PLATE,LID LOCK
€ 4.00
29
9544724A00
ref: 29
LEVER,SIDE POCKET OPEN
€ 19.50
30
9542424A00
ref: 30
PLATE,LID LOCK NO.1
€ 4.50
31
0214204065
ref: 31
SCREW
€ 1.50
32
9544324A00
ref: 32
HINGE,LID SIDE BAG POCKET
€ 47.00
33
0214204065
ref: 33
SCREW
€ 1.50
34
0214204125
ref: 34
SCREW
€ 1.50
35
9544824A00
ref: 35
LID,SIDE BAG POCKET
€ 65.50
36
9319124A00
ref: 36
BAND,SIDE BAG LID
€ 8.00
37
9312424A00
ref: 37
SET PLATE,LOCK SIDE BA
€ 5.00
38
9331024A01KEY
ref: 38
LOCK ASSY, SIDE BAG
€ 96.50
39
0214205085
ref: 39
SCREW
€ 2.00
40
6826124A10
ref: 40
EMBLEM,SIDE BAG,RIGHT
€ 29.00
41
0110706307
ref: 41
BOLT 6X30
€ 2.50
42
0916006030
ref: 42
WASHER (6.5X29X1.6)
€ 2.50
43
0918006055
ref: 43
SPACER(6.3X9.3X16.5)
€ 4.00
44
0932009017
ref: 44
CUSHION
€ 3.00
45
9541624A00
ref: 45
SEAT, BOTTOM RH
€ 13.50
46
9541724A00
ref: 46
SEAT, BOTTOM LH
€ 13.50
47
0980000293
ref: 47
TOOL ASSY
€ 448.50
48
9620041330
ref: 48
GAUGE ASSY,AIR PRESSURE
€ 77.50
49
9545024A01
ref: 49
LUGGAGE BAG,SIDE BAG
€ 131.50
50
0946200040
ref: 50
BAND
€ 4.50
51
0910406004
ref: 51
BOLT(6X30)
€ 3.00
52
0916006030
ref: 52
WASHER (6.5X29X1.6)
€ 2.50
53
0918006055
ref: 53
SPACER(6.3X9.3X16.5)
€ 4.00
54
0932009017
ref: 54
CUSHION
€ 3.00
55
0916006013
ref: 55
WASHER (6.5X18X2)
€ 10.50
56
0831931067
ref: 56
NUT
€ 2.50
57
0925008013
ref: 57
CAP(OD:12)
€ 2.00
58-1
6861324A20
ref: 58-1
LABEL (WARNING TRAVEL T
€ 0.00
58-2
6861324A30
ref: 58-2
LABEL, WARNING (FRENCH)
€ 0.00
59
0981300038
ref: 59
SPANNER
€ 0.00
60
9331424A00
ref: 60
PACKING SEAT
€ 3.50
