CANISTER (FOR CALIFORNIA)

GV1400GT CAVALCADE 1986 (G) USA (E03)

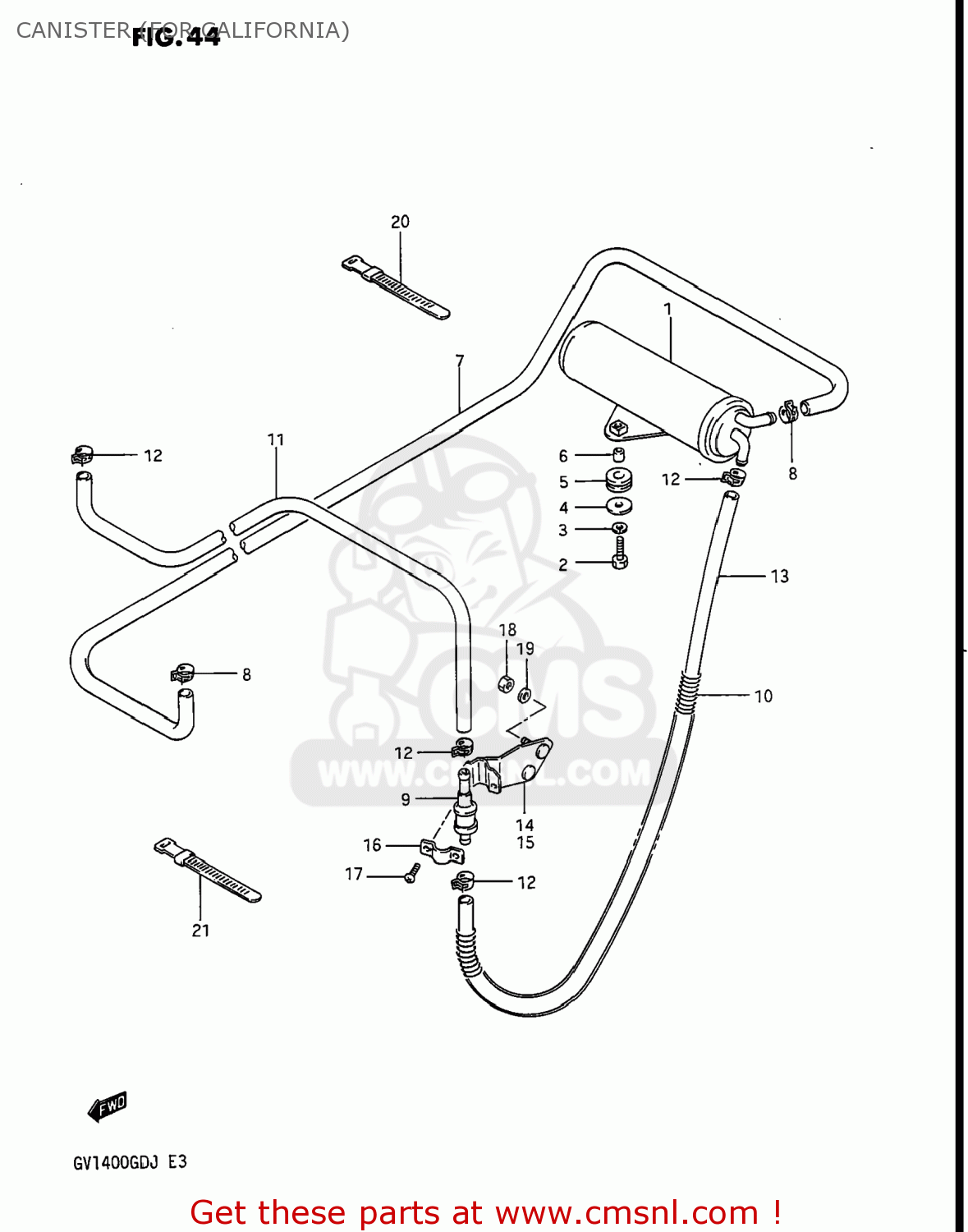

Canister (for california) diagram GV1400GT CAVALCADE 1986 (G) USA (E03)

CANISTER (FOR CALIFORNIA) GV1400GT CAVALCADE 1986 (G) USA (E03)

CANISTER (FOR CALIFORNIA) GV1400GT CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1721024A02
ref: 1

(CA) CANISTER ASSEMBLY,CHARCOAL

€ 0.00

2

0110706205
ref: 2
01500-0620A

BOLT

€ 2.00

3

0832121064
ref: 3
08321-0106A

WASHER,LOCK

€ 2.00

4

0916006039
ref: 4
09160-06109

WASHER (6.5X18X1.6)

€ 2.00

5

0932008007
ref: 5
09320-08021

CUSHION

€ 4.00

6

0918006038
ref: 6

SPACER(6.1X9X7.5)

€ 2.00

7

0934307186
ref: 7

(CA) HOSE

€ 19.50

8

0940112406
ref: 8
09401-11415

CLAMP

€ 2.50

9

4424038A00
ref: 9

VALVE,FUEL TANK BREATHER

€ 35.00

10

0944013020
ref: 10
09440-13051

SPRING

€ 14.50

11

0934305373
ref: 11

HOSE

€ 0.00

12

0940111410
ref: 12
09401-11413

(CA) CLIP

€ 2.50

13

0934305395
ref: 13

(CA) HOSE

€ 0.00

14-1

4489024A00
ref: 14-1
44890-24A01

PLATE,FUEL TANK BREATHER

€ 0.00

14-2

4489024A01
ref: 14-2

PLATE,TANK BREATHER VALVE

€ 0.00

15

4489424A00
ref: 15

CUSHION

€ 1.50

16

4489224A00
ref: 16

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

17

0214204103
ref: 17
02142-0410A

SCREW

€ 1.50

18

0831921068
ref: 18
08319-2106A

NUT 6MM

€ 2.00

19

0916006056
ref: 19

WASHER(6.5X18X1)

€ 2.00

20

0940712403
ref: 20
09407-12402

CLAMP

€ 3.00

21

0940718401
ref: 21

CLAMP(L:187)

€ 2.00
