REAR WHEEL (GV1400GDG/GTG ~F.NO.103764)

GV1400GT CAVALCADE 1986 (G) USA (E03)

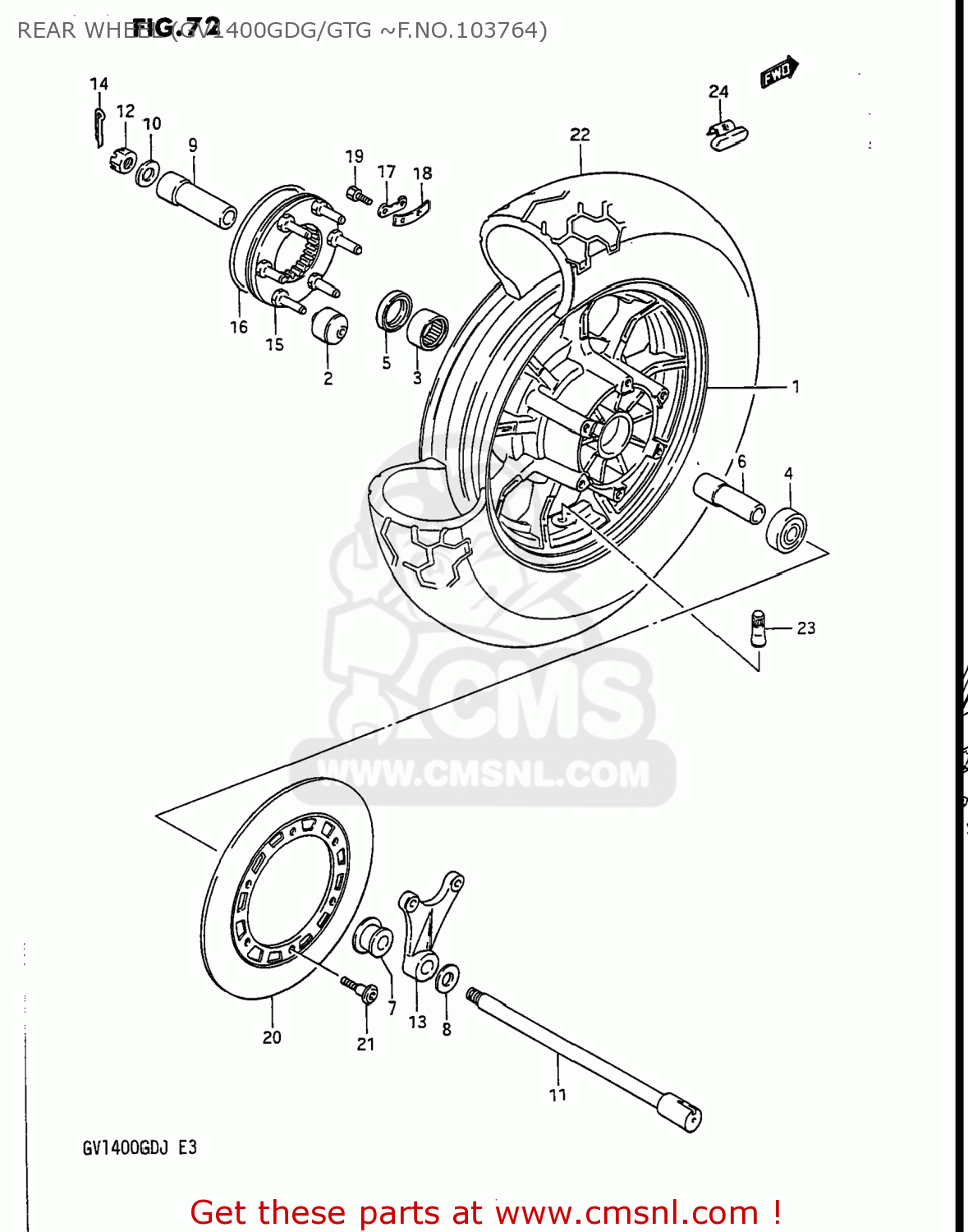

Rear wheel (gv1400gdg/gtg ~f.no.103764) diagram GV1400GT CAVALCADE 1986 (G) USA (E03)

REAR WHEEL (GV1400GDG/GTG ~F.NO.103764) GV1400GT CAVALCADE 1986 (G) USA (E03)

REAR WHEEL (GV1400GDG/GTG ~F.NO.103764) GV1400GT CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6410024820291
ref: 1

WHEEL SET,REAR (3.50-15)

€ 0.00

2

0931912019
ref: 2

BUSH

€ 10.50

3

0926330020
ref: 3

ROLLER BEARING (30X37X2

€ 19.50

4

0812363047
ref: 4

BEARING

€ 14.00

5

0928330023
ref: 5

SEAL,OIL(30X44X7)

€ 8.50

6

6473124A01
ref: 6

SPACER,REAR HUB BEARING

€ 27.00

7

6474024A01
ref: 7

SPACER COMP,REAR AXLE

€ 12.50

8

6474324A00
ref: 8

WASHER,REAR AXLE,RIGHT

€ 3.50

9

6477224A00
ref: 9

SPACER,REAR AXLE,LEFT

€ 19.00

10

0916018009
ref: 10
09160-18017

WASHER,HUB

€ 2.00

11

6471124A00
ref: 11

AXLE,REAR

€ 56.50

12

0831441188
ref: 12
08314-40187

NUT 18MM

€ 6.00

13

6972124A00
ref: 13

BRACKET,REAR CALIPER

€ 29.00

14

0411140308
ref: 14
04111-4030A

PIN,COTTER

€ 1.50

15

6468024A00
ref: 15

JOINT ASSY,RR HUB DRIVEN

€ 260.50

16

0928065003
ref: 16

O RING(D:2.1,ID:65)

€ 2.50

17

0916906030
ref: 17

WASHER

€ 2.00

18

6467745110
ref: 18

WASHER,THRUST(T:1.6)

€ 2.50

19

0911906049
ref: 19

BOLT(6X16)

€ 1.50

20

6921124A00
ref: 20

DISC,RR BRAKE

€ 321.00

21

0910608041
ref: 21
09106-08148

BOLT

€ 6.00

22-1

6510024A00
ref: 22-1
65100-24A51

TIRE

€ 125.50

22-2

6510024A10
ref: 22-2
65100-24A51

TIRE

€ 125.50

22-2

6510024A10
ref: 22-2
65100-24A51

TIRE

€ 125.50

23

4313024A00
ref: 23

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

24-1

5541100A00291
ref: 24-1
55411-00A00-10V

BALANCER,WHEEL

€ 6.50

24-2

5541200A00291
ref: 24-2
55412-17G00

BALANCER,WHEEL

€ 7.00

24-3

5541300A00291
ref: 24-3
55413-00A01

BALANCER,WHEEL

€ 4.00

24-3

5541300A00291
ref: 24-3
55413-00A01

BALANCER,WHEEL

€ 4.00
