FRONT TURNSIGNAL LAMP

GV1400GT CAVALCADE 1986 (G) USA (E03)

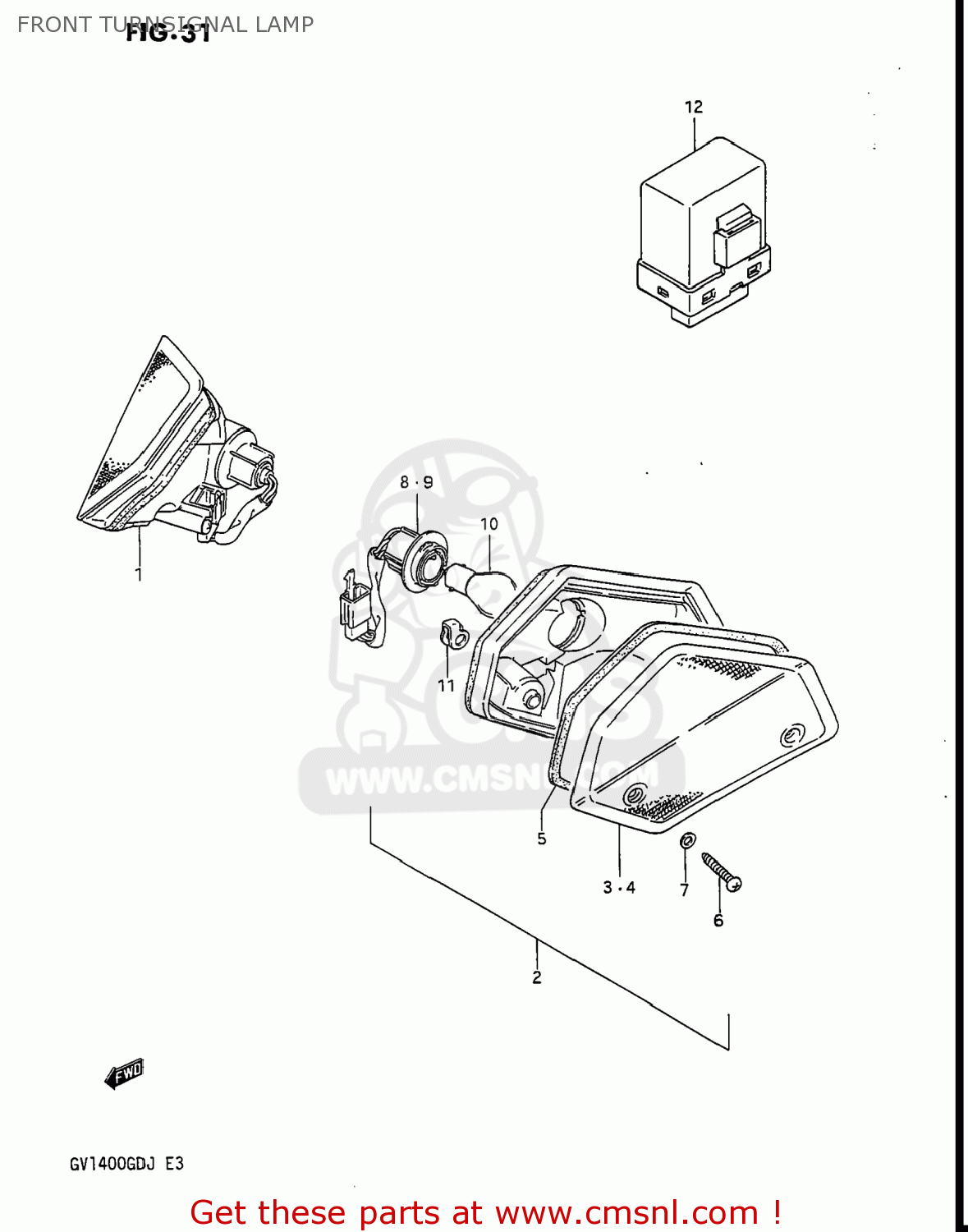

Front turnsignal lamp diagram GV1400GT CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

3560124A00
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 69.00

3560224A00
ref: 2

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 76.00

3561224A00
ref: 3

LENS,R

€ 29.50

3563224A00
ref: 4

LENS,L

€ 19.00

3564324A00
ref: 5

GASKET (NAS)

€ 3.00

0321105307
ref: 6
03212-05303

SCREW

€ 1.00

3562724A00
ref: 7

GASKET

€ 2.00

3561824A00
ref: 8
35638-24A00

SOCKET & CORD

€ 14.50

3563824A00
ref: 9

SOCKET & CORD

€ 14.50

0947112035
ref: 10

BULB(12V23W)

€ 5.50

9469249400
ref: 11

PLATE,COVER FITTING NO

€ 3.50

3883024A00
ref: 12

RELAY ASSEMBLY,AUTO TURN &

€ 191.00
