TRAVEL TRUNK (GV1400GDG/GTG)

GV1400GT CAVALCADE 1986 (G) USA (E03)

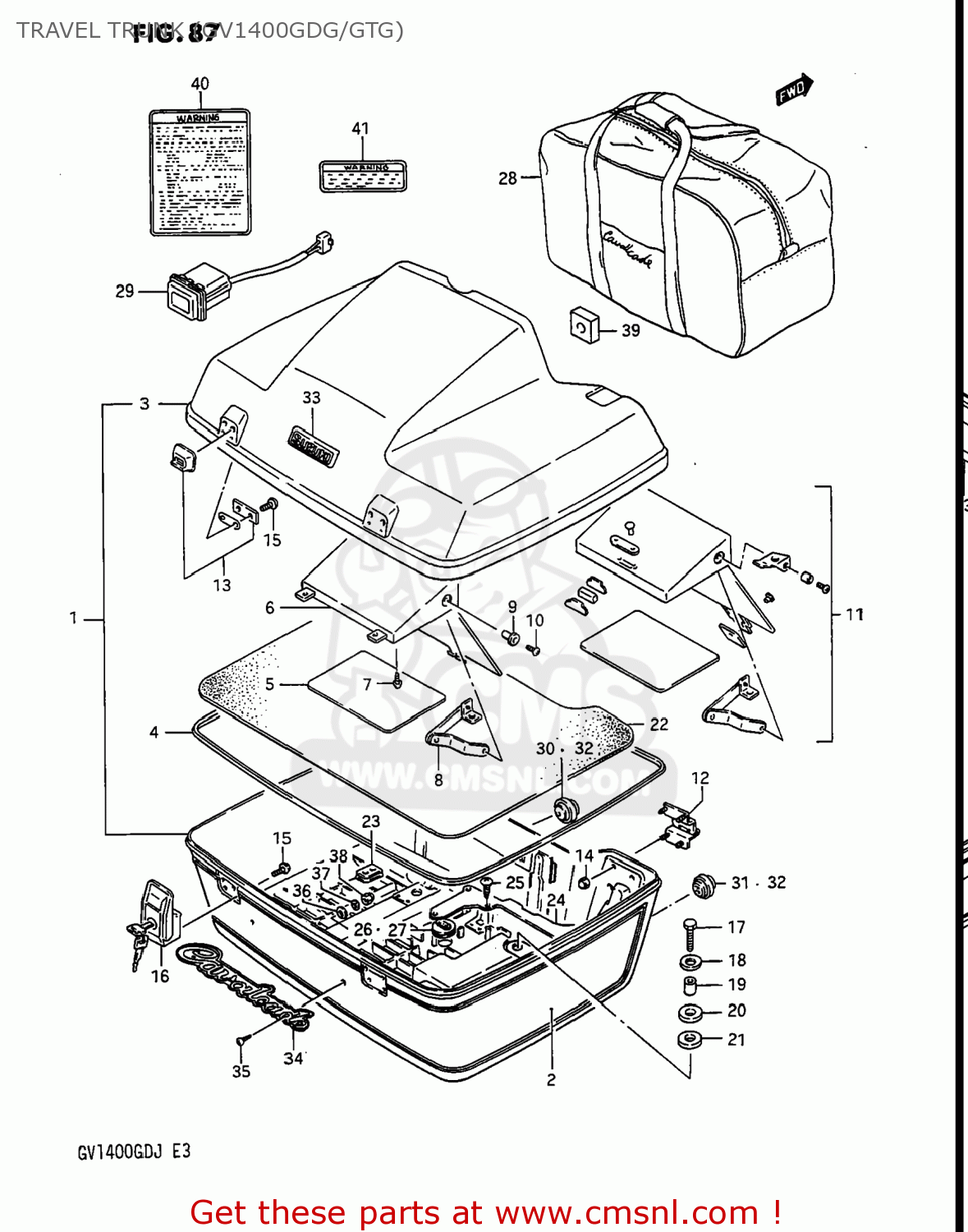

Travel trunk (gv1400gdg/gtg) diagram GV1400GT CAVALCADE 1986 (G) USA (E03)

TRAVEL TRUNK (GV1400GDG/GTG) GV1400GT CAVALCADE 1986 (G) USA (E03)
TRAVEL TRUNK (GV1400GDG/GTG) GV1400GT CAVALCADE 1986 (G) USA (E03)
TRAVEL TRUNK (GV1400GDG/GTG) GV1400GT CAVALCADE 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9310024A007UM
ref: 1-1
TRUNK ASSEMBLY,TRAVEL
€ 0.00
1-2
9310024A007UN
ref: 1-2
TRUNK ASSEMBLY,TRAVEL
€ 1,499.50
1-3
9310024A1012S
ref: 1-3
TRUNK ASSEMBLY,TRAVEL
€ 0.00
1-4
9310024A1024K
ref: 1-4
TRUNK ASSEMBLY,TRAVEL
€ 0.00
2-1
6879024A007UP
ref: 2-1
TAPE SET,TRAVEL TRUNK
€ 0.00
2-2
6879024A007UR
ref: 2-2
TAPE SET,TRAVEL TRUNK
€ 0.00
2-3
6879024A1078V
ref: 2-3
TAPE SET,TRAVEL TRUNK
€ 0.00
2-4
6879024A107US
ref: 2-4
TAPE SET,TRAVEL TRUNK
€ 0.00
3-1
9312024A0024G
ref: 3-1
LID,TRAVEL TRUNK
€ 527.00
3-2
9312024A0024H
ref: 3-2
93120-24A00
LID,TRAVEL TRUNK
€ 527.00
3-3
9312024A0012S
ref: 3-3
LID,TRAVEL TRUNK
€ 0.00
3-4
9312024A0024K
ref: 3-4
LID,TRAVEL TRUNK
€ 0.00
4
9311524A00
ref: 4
SEAL,TRAVEL TRUNK LID
9311524A00
€ 18.50
5
9312824A00
ref: 5
MIRROR
€ 18.00
6
9312724A00
ref: 6
93140-24A01
BASE, MIRROR
€ 110.00
7
0351104125
ref: 7
03511-0412A
SCREW
€ 1.50
8
9312924A00
ref: 8
STOPPER,MIRROR OPEN
9312924A00
€ 20.00
9
9312624A00
ref: 9
WASHER
9312624A00
€ 2.50
10
0211204105
ref: 10
02112-3410A
SCREW
€ 2.00
11
9314024A00
ref: 11
93140-24A01
MIRROR,TRAVEL TRUNK
€ 110.00
12
9313024A00
ref: 12
93130-24A01
HINGE,TRAVEL TRUNK
€ 19.50
13
9331624A00
ref: 13
93316-24A02
PLATE,TRUNK LID LOCK
€ 15.00
14
0831311045
ref: 14
NUT
€ 0.00
14
0831311045
ref: 14
NUT
€ 0.00
14
0831311045
ref: 14
NUT
€ 0.00
14
0831311045
ref: 14
NUT
€ 0.00
15
0214205085
ref: 15
02142-0508A
SCREW
0214205085
€ 2.00
16
9331024A00KEY
ref: 16
93300-24820
LOCK ASSY, SIDE BAG
€ 96.50
17
0110706257
ref: 17
01500-06257
BOLT
€ 2.00
18
0916006030
ref: 18
09160-06136
WASHER (6.5X29X1.6)
0916006030
€ 2.50
19
0918006055
ref: 19
SPACER(6.3X9.3X16.5)
0918006055
€ 4.00
20
0932009023
ref: 20
09320-09029
CUSHION
€ 1.50
21
0932009023
ref: 21
09320-09029
CUSHION
€ 1.50
22
9541524A00
ref: 22
95415-24A10
SEAT,TRAVEL TRUNK BODY
€ 20.00
23-1
0930920001
ref: 23-1
GROMMET
€ 0.00
23-2
0930920002
ref: 23-2
GROMMET
€ 0.00
24
9311624A00
ref: 24
COVER, AIR HOSE
€ 9.50
25
0354104105
ref: 25
03541-0410A
SCREW
0354104105
€ 1.50
26
0930924001
ref: 26
GROMMET
€ 0.00
27
0930924002
ref: 27
GROMMET
€ 0.00
28
9341024A00
ref: 28
93410-24A01
LUGGAGE BAG,TRAVEL TRUNK
€ 115.00
29
6268024A00
ref: 29
SWITCH ASSEMBLY,AIR AUXILIARY
€ 37.50
30
4542524A00
ref: 30
GROMMET
€ 0.00
31
4542624A00
ref: 31
GROMMET
€ 0.00
32
4542524A10
ref: 32
GROMMET,HOSE AIRSEAT
€ 0.00
33
6828524A00
ref: 33
EMBLEM,TRAVEL TRUNK,UPPER
€ 21.00
34
6828624A00
ref: 34
EMBLEM,TRAVEL TRUNK,LOWER
€ 45.50
35
0213203165
ref: 35
SCREW
0213203165
€ 1.50
36
0832221035
ref: 36
WASHER
€ 1.50
37
0916203002
ref: 37
09162-03001
WASHER
€ 1.50
38
0831311035
ref: 38
NUT
€ 0.00
39
4542924A00
ref: 39
SEAL
€ 0.00
40
6861324A02
ref: 40
LABEL (WARNING)
€ 0.00
41
6861924A00
ref: 41
LABEL, WARNING
€ 0.00
41
6861924A00
ref: 41
LABEL, WARNING
€ 0.00
41
6861924A00
ref: 41
LABEL, WARNING
€ 0.00
41
6861924A00
ref: 41
LABEL, WARNING
€ 0.00
