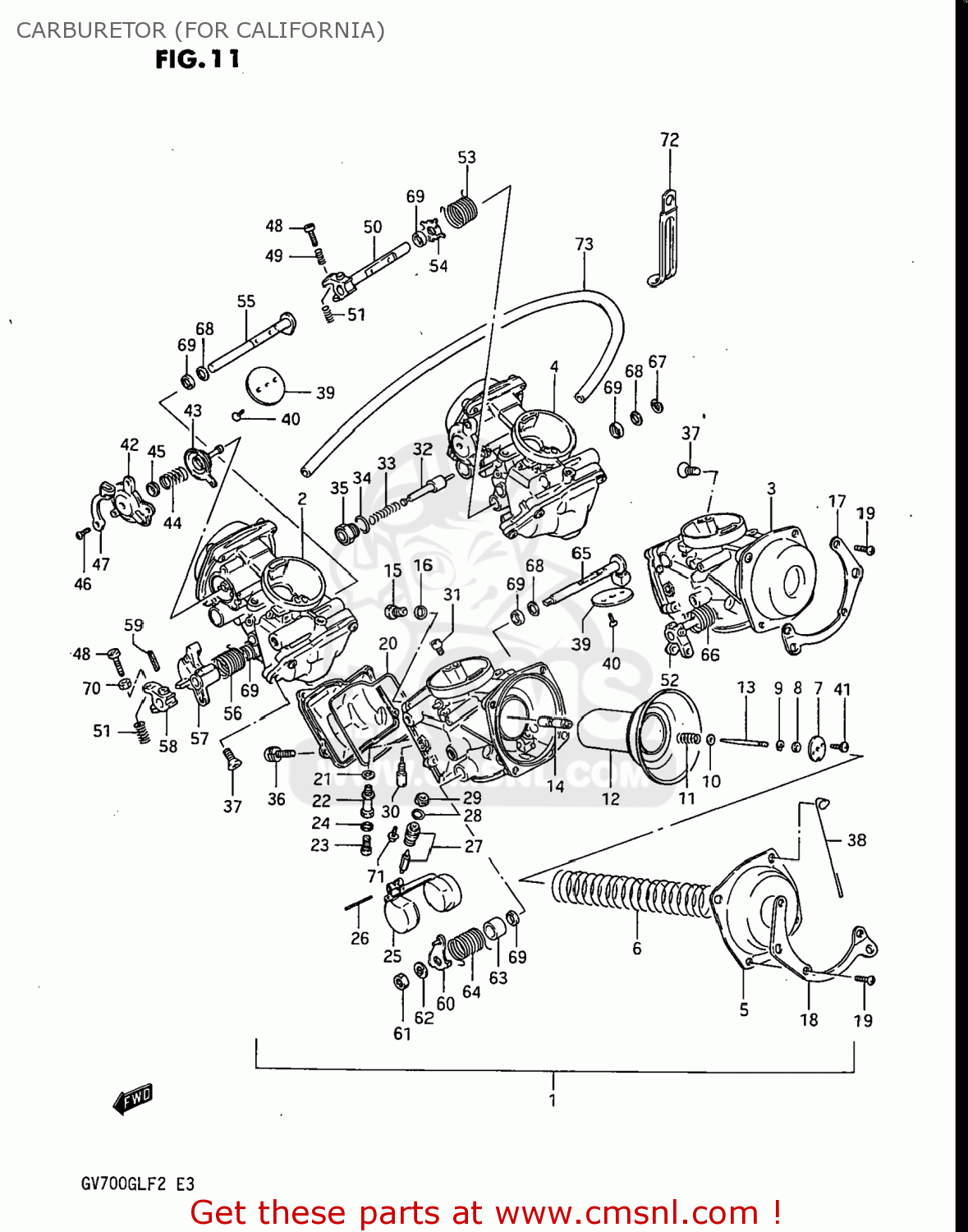

CARBURETOR (FOR CALIFORNIA)

ref

part #

description

quantity

1

1320107A20
ref: 1

CARBURETOR ASSEMBLY

€ 255.50

2

1320207A20
ref: 2

CARBURETOR ASSEMBLY

€ 258.00

3

1320307A20
ref: 3

CARBURETOR ASSEMBLY

€ 255.50

4

1320407A20
ref: 4

CARBURETOR ASSEMBLY

€ 255.50

5

1350205A10
ref: 5

COVER

€ 18.00

6

1350305A10
ref: 6

SPRING,DIAPHRAGM

€ 12.00

7

1338937400
ref: 7

PLATE

€ 5.50

8

1338744030
ref: 8

RING

€ 5.00

9

1339431210
ref: 9

CLIP,NEEDLE

€ 3.50

10

1338244030
ref: 10

WASHER

€ 3.50

11

1338844030
ref: 11

SPRING

€ 6.00

12

1350007A10
ref: 12

DIAPHRAGM,CARBURETOR

€ 0.00

13-1

1338307A10
ref: 13-1

NEEDLE JET

€ 0.00

13-2

1338307A20
ref: 13-2

NEEDLE JET

€ 9.00

14

0949400475
ref: 14

JET,NEEDLE

€ 10.00

15

1360505A10
ref: 15

SCREW

€ 8.50

16

1333244080
ref: 16
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

17

1362705A10
ref: 17

BRACKET

€ 8.00

18

1362705A20
ref: 18

BRACKET

€ 7.00

19

0211205106
ref: 19
02112-0510A

SCREW 5X10

€ 2.00

20

1325105A10
ref: 20
13251-38A00

GASKET,FLOAT CHAMBER

€ 6.50

21

1333205A10
ref: 21

GASKET (NAS)

€ 3.50

22

1338505A10
ref: 22
13385-05A11

HOLDER,MAIN JET

€ 14.00

23-1

0949190008
ref: 23-1
09491-90011

JET,MAIN (90)

€ 17.50

23-2

0949192007
ref: 23-2
09491-92005

JET

€ 9.00

24

1333235400
ref: 24
13386-04700

WASHER

€ 2.50

25

1325005A10
ref: 25

FLOAT

€ 34.00

26

1325420010
ref: 26

PIN,FLOAT

€ 3.00

27

1337044500
ref: 27

VALVE ASSY,NEEDLE

€ 40.50

28

1337444080
ref: 28
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

29

1337665010
ref: 29
13376-19F00

FILTER

€ 6.50

30

0949225007
ref: 30

JET,PILOT(25)

€ 8.50

31-1

0949265001
ref: 31-1
09492-65005

JET

€ 7.50

31-2

0949272110
ref: 31-2
09492-75002

JET

€ 9.00

32

1341105A10
ref: 32

PLUNGER

€ 17.00

33

1341705A10
ref: 33

SPRING,STARTER PLUNGER

€ 0.00

34

1327847090
ref: 34

O RING

€ 2.00

35

1341805A10
ref: 35

HOLDER,GUIDE

€ 12.00

36

1360104148
ref: 36

SCREW

€ 2.50

37

1360305A20
ref: 37

SCREW

€ 0.00

38

1369205A10
ref: 38

CLIP

€ 0.00

39

1355107A10
ref: 39

VALVE,THROTTLE

€ 18.50

40

1360444080
ref: 40

SCREW

€ 3.50

41

1360103078
ref: 41
02112-0306B

SCREW

€ 2.00

42

1348437300
ref: 42
13484-38A10

COVER

€ 16.00

43

1348005A10
ref: 43

DIAPHRAGM ASSY

€ 54.50

44

1348105A10
ref: 44
13481-45C10

SPRING

€ 5.50

45

1348237300
ref: 45

PLATE

€ 0.00

46

1360205A40
ref: 46
02112-0412A

SCREW

€ 1.50

47

1362705A30
ref: 47

BRACKET

€ 4.50

48

1360505A20
ref: 48

SCREW

€ 0.00

49

1327105A10
ref: 49

SPRING

€ 0.00

50

1355007A10
ref: 50

SHAFT,THROTTLE

€ 0.00

51

1326896110
ref: 51
13268-96111

SPRING,THROTTLE SCREW

€ 4.50

52

1355007A20
ref: 52

SHAFT,THROTTLE

€ 0.00

53

1357305A10
ref: 53

SPRING,THROTTLE VALVE

€ 0.00

54

1344705A10
ref: 54

PLATE

€ 0.00

55

1355007A30
ref: 55

SHAFT,THROTTLE

€ 0.00

56

1357305A20
ref: 56

SPRING,THROTTLE VALVE

€ 0.00

57

1355305A10
ref: 57

LEVER,THROTTLE

€ 0.00

58

1355305A20
ref: 58

LEVER,THROTTLE

€ 0.00

59

1356347070
ref: 59

PIN,THROTTLE SHAFT

€ 0.00

60

1355305A30
ref: 60

LEVER,THROTTLE

€ 0.00

61

0831022088
ref: 61
08310-00087

NUT 8MM

€ 2.00

62

1360647070
ref: 62

WASHER

€ 3.00

63

1355705A20
ref: 63

RING

€ 3.00

64

1357305A30
ref: 64

SPRING,THROTTLE VALVE

€ 0.00

65

1355007A40
ref: 65

SHAFT,THROTTLE

€ 0.00

66

1357305A40
ref: 66

SPRING,THROTTLE VALVE

€ 0.00

67

1361744080
ref: 67

E RING

€ 3.50

68

1355747070
ref: 68

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

69

1355605A10
ref: 69

SEAL,THROTTLE SHAFT

€ 3.50

70

1360705A10
ref: 70
08310-00047

NUT

€ 2.00

71

1360205A10
ref: 71

SCREW

€ 4.00

72

0940406401
ref: 72
09404-06432

CLAMP L:35

€ 2.50

73

1368305A40
ref: 73

HOSE CARBURETOR

€ 9.50

73

1368305A40
ref: 73

HOSE CARBURETOR

€ 9.50
