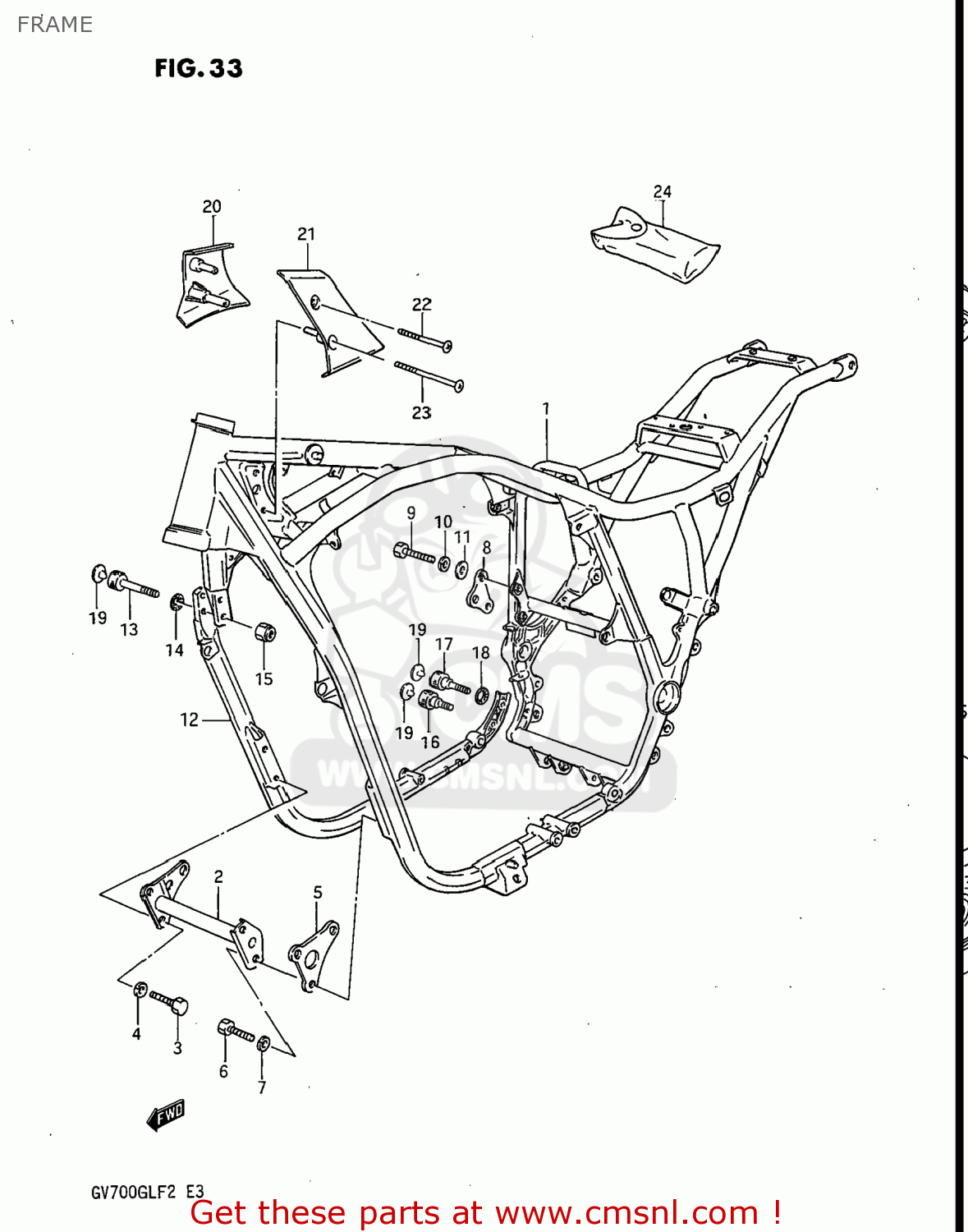

FRAME

ref

part #

description

quantity

1-1

4110007A00019
ref: 1-1

FRAME

€ 561.50

1-2

4110007A50019
ref: 1-2

FRAME

€ 584.00

2

4191007A00019
ref: 2

PLATE COMP,ENGINE MOUNTING

€ 14.50

3

0110708165
ref: 3
01500-0816B

BOLT

€ 2.00

4

0832121084
ref: 4
08321-0108A

WASHER,LOCK,8.

€ 2.50

5

4192107A00019
ref: 5

PLATE,ENGINE MOUNTING

€ 14.50

6

0110708205
ref: 6
01500-0820A

BOLT

€ 2.00

7

0832121084
ref: 7
08321-0108A

WASHER,LOCK,8.

€ 2.50

8

4195107A00019
ref: 8

PLATE,ENGINE MOUNTING

€ 8.00

9

0110708205
ref: 9
01500-0820A

BOLT

€ 2.00

10

0832121084
ref: 10
08321-0108A

WASHER,LOCK,8.

€ 2.50

11

0832221085
ref: 11
08322-0108A

WASHER

€ 1.50

12

4114007A00019
ref: 12

TUBE,FRAME

€ 93.00

13

0910610033
ref: 13
09106-10033-XC0

BOLT 10X38

€ 2.50

14

0916410005
ref: 14
09164-10010

WASHER

€ 6.50

15

0831931105
ref: 15
08319-3110A

NUT 10MM

€ 3.00

16

0910610034
ref: 16

BOLT

€ 2.00

17

0910610035
ref: 17

BOLT

€ 2.00

18

0916411003
ref: 18

WASHER

€ 1.50

19

4357534500
ref: 19

CAP

€ 1.50

20

5187605A00
ref: 20

COVER,FRAME HEAD,RIGHT

€ 8.50

21

5188605A00
ref: 21

COVER,FRAME HEAD,LEFT

€ 8.50

22

0214205505
ref: 22
02142-05503

SCREW, LOWER

€ 2.00

23

0214205605
ref: 23

SCREW

€ 0.50

24

0980000286
ref: 24
09800-21011

TOOL ASSY

€ 50.00
