MUFFLER
GV700GLF MADURA 1985 (F) USA (E03)

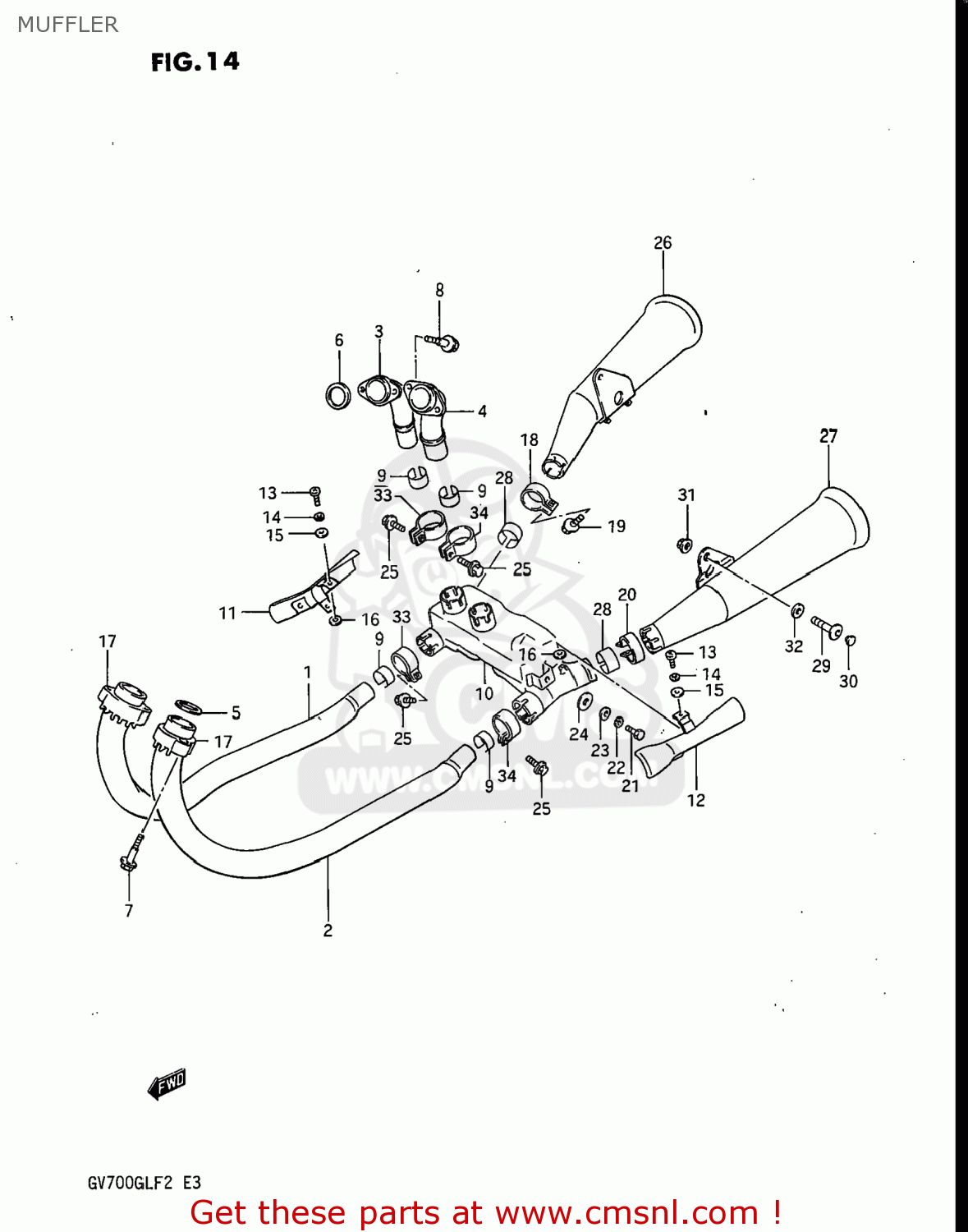

Muffler diagram GV700GLF MADURA 1985 (F) USA (E03)
MUFFLER GV700GLF MADURA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415007A01
ref: 1
PIPE,EXHAUST
€ 57.00
2
1416007A01
ref: 2
PIPE,EXHAUST,FRONT,LEFT
€ 97.00
3-1
1417007A01
ref: 3-1
14170-07A02
FLANGE,EXHAUST PIPE
€ 49.50
3-2
1417007A02
ref: 3-2
FLANGE,EXHAUST PIPE
€ 49.50
4-1
1418007A01
ref: 4-1
14180-07A02
COVER,EXHAUST PIPE
€ 49.50
4-2
1418007A02
ref: 4-2
COVER,EXHAUST PIPE
€ 49.50
5
1418112010
ref: 5
14181-42A00
GASKET,EXHAUST PIPE (NAS)
€ 8.50
6
1418105020
ref: 6
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
7
0712008458
ref: 7
07120-0845B
BOLT
€ 3.50
8
0711008258
ref: 8
07130-08257
BOLT
€ 3.50
9
1477107A00
ref: 9
14771-14D00
CONNECTOR,MUFFLER
€ 19.50
10
1421007A03H01
ref: 10
BODY,PRE MUFFLER
€ 0.00
11
1478007A01
ref: 11
COVER,PRE MUFFLER,RIGHT
€ 17.50
12
1479007A01
ref: 12
COVER,PRE MUFFLER,LEFT
€ 17.50
13
0211206128
ref: 13
02112-06127
SCREW 6X12
€ 2.00
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0916806005
ref: 16
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
17
1418249011
ref: 17
CLAMP(H:21)
€ 49.00
18-1
1445907A00
ref: 18-1
CLAMP,MUFFLER CONNECTOR
€ 9.50
18-2
1445907A01
ref: 18-2
CLAMP,MUFFLER CONNECTOR
€ 8.50
19-1
0151708307
ref: 19-1
01550-08307
BOLT 8X30
€ 3.50
19-2
0151708358
ref: 19-2
01550-08357
BOLT
€ 3.50
20-1
1446907A00
ref: 20-1
CLAMP,MUFFLER CONNECTOR
€ 9.00
20-2
1446907A01
ref: 20-2
CLAMP,MUFFLER CONNECTOR
€ 9.50
21
0110708255
ref: 21
01500-0825A
BOLT
€ 2.50
22
0832121085
ref: 22
08321-0108A
LOCK WASHER
€ 2.50
23
0832221085
ref: 23
08322-0108A
WASHER
€ 1.50
24
0916808017
ref: 24
GASKET
€ 0.00
25-1
0910308143
ref: 25-1
BOLT 8X30
€ 0.00
25-2
0151708355
ref: 25-2
01550-0835A
BOLT
€ 3.50
26-1
1430107A02H01
ref: 26-1
14301-07A03-H01
MUFFLER ASSEMBLY
€ 105.00
26-2
1430107A03H01
ref: 26-2
MUFFLER ASSEMBLY
€ 105.00
27-1
1430207A02H01
ref: 27-1
14302-07A03-H01
MUFFLER ASSEMBLY
€ 114.50
27-2
1430207A03H01
ref: 27-2
MUFFLER ASSEMBLY
€ 114.50
28
1477100A01
ref: 28
14771-00A01-H17
CONNECTOR,MUFFLER
€ 29.00
29
0910610015
ref: 29
BOLT
€ 4.50
30
4357534500
ref: 30
CAP
€ 1.50
31
0915910014
ref: 31
09159-10046-XC0
NUT
€ 2.00
32
0916010005
ref: 32
WASHER(10.5X20X3.2)
€ 2.00
33-1
1445907A10
ref: 33-1
14459-07A11
CLAMP,MUFFLER CONNECTOR
€ 19.00
33-2
1445907A11
ref: 33-2
CLAMP,PREMUFFLER CONNECTOR,R
€ 19.00
34-1
1446907A10
ref: 34-1
14469-07A11
CLAMP,MUFFLER CONNECTOR
€ 17.50
34-2
1446907A11
ref: 34-2
CLAMP,PREMUFFLER CONNECTOR,L
€ 17.50
