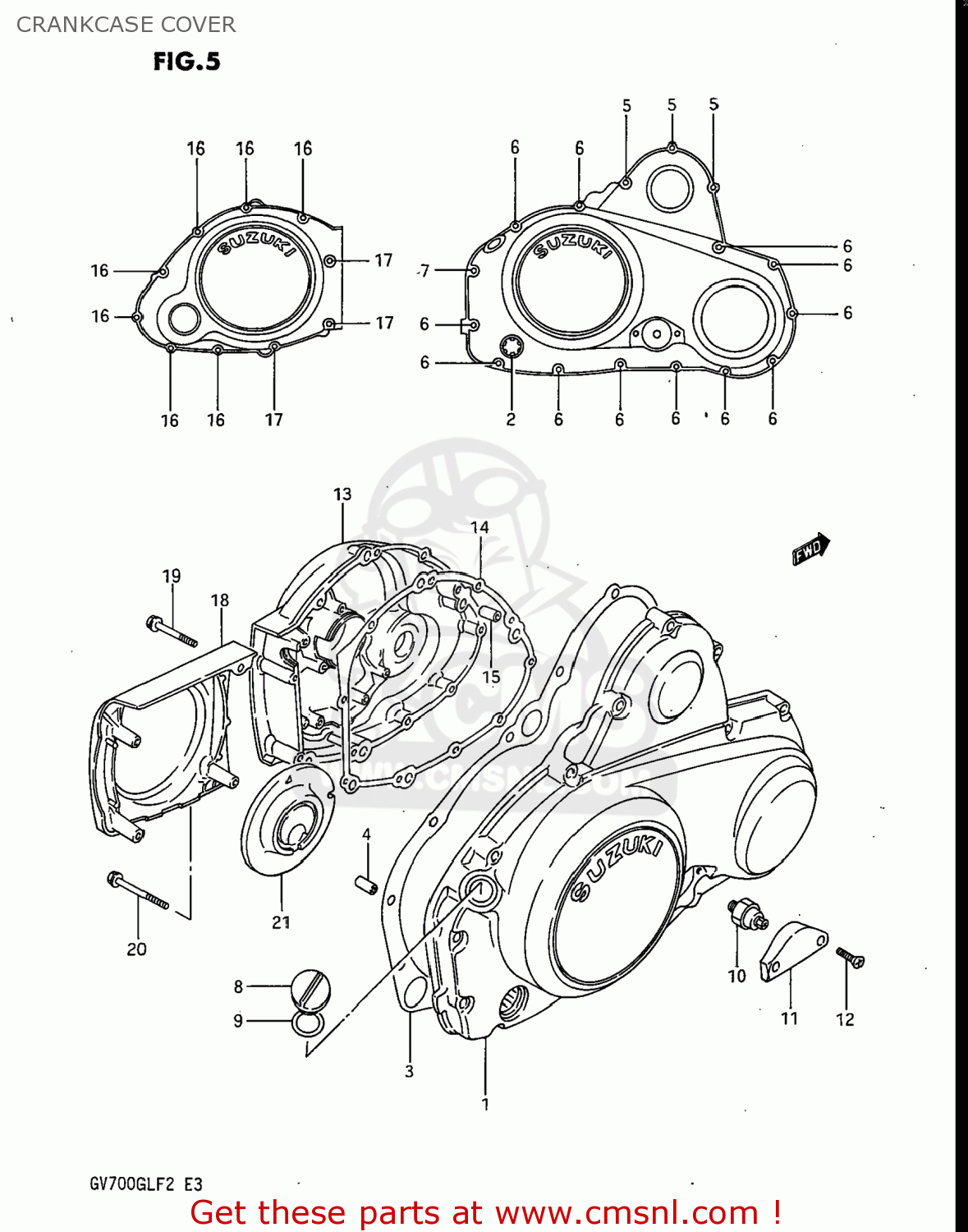

CRANKCASE COVER

ref

part #

description

quantity

1

1134005A02
ref: 1
11340-05A04

COVER,CLUTCH

€ 395.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148205A01
ref: 3
11482-05A01-H17

GASKET,CLUTCH COVER (MCA)

€ 25.50

4

0421109169
ref: 4

PIN

€ 1.50

5

0154706304
ref: 5
01547-06307

BOLT 6X30

€ 2.50

6

0154706357
ref: 6

BOLT

€ 2.50

7

0154706457
ref: 7

BOLT

€ 2.50

8

0925920007
ref: 8

PLUG(20X10)

€ 6.50

9

0928017003
ref: 9

O RING(D:3.1,ID:16.8)

€ 2.00

10

3782033200
ref: 10
37820-33D10

SWITCH ASSEMBLY

€ 29.00

11

1138405A00
ref: 11

CAP,OIL PRESSURE SWITCH

€ 0.00

12

0213205207
ref: 12
02122-0520A

SCREW

€ 2.00

13

1135005A02
ref: 13

COVER,GENERATOR

€ 150.50

14

1148305A00
ref: 14
11483-05A01

GASKET,MAGNETO COVER (MCA)

€ 14.00

15

0920611005
ref: 15
09206-11017

PIN (11X20)(SUS)

€ 6.50

16

0154706307
ref: 16

BOLT

€ 2.50

17

0154706457
ref: 17

BOLT

€ 2.50

18

1136105A02
ref: 18

COVER,SECONDARY DRIVE

€ 68.00

19

0154706407
ref: 19

BOLT

€ 2.50

20

0154706457
ref: 20

BOLT

€ 2.50

21

1136905A00
ref: 21
11369-05A01

DAMPER

€ 9.50
