GV700GLF MADURA 1985 (F) USA (E03)

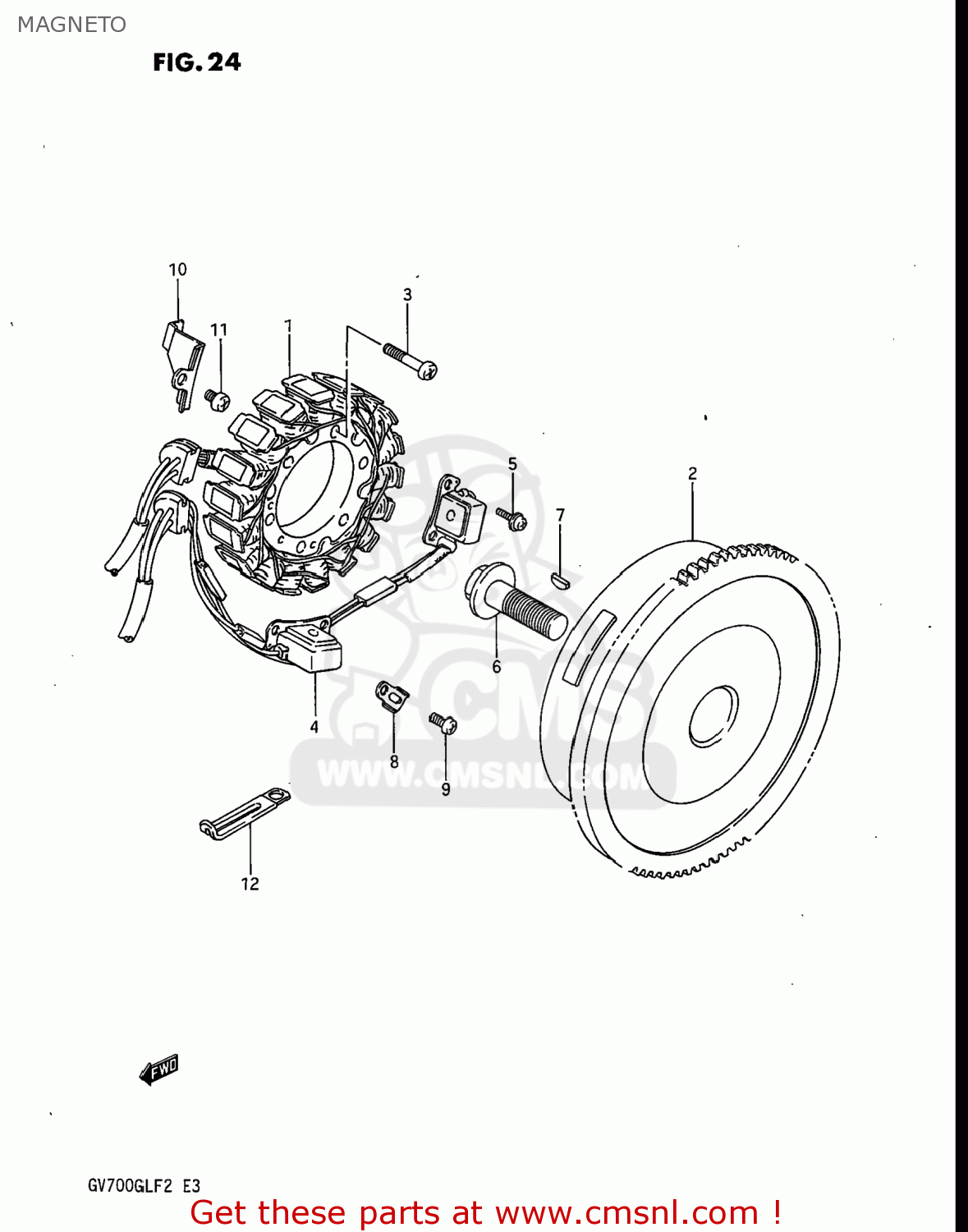

Magneto diagram GV700GLF MADURA 1985 (F) USA (E03)
MAGNETO GV700GLF MADURA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210105A00
ref: 1
STATOR ASSEMBLY,AC
€ 388.50
2
3210205A00
ref: 2
ROTOR ASSEMBLY
€ 170.00
3
0211206308
ref: 3
02112-06307
SCREW 6X30
€ 2.50
4
3216005A00
ref: 4
SENSOR ASSEMBLY,TIMING
€ 33.50
5
0215204128
ref: 5
02142-04127
SCREW
€ 2.00
6
0910314001
ref: 6
BOLT(14X43)
€ 7.00
7
0834131049
ref: 7
09420-04008
KEY 4MM
€ 3.50
8
3149745000
ref: 8
CLAMP,GENERATOR LEAD WIRE
€ 1.50
9
0211205088
ref: 9
02112-05087
SCREW
€ 2.00
10
3237105A00
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
11
0211206108
ref: 11
02112-06107
SCREW
€ 1.50
12
0940408413
ref: 12
09404-08420
CLAMP
€ 3.50
