CHAIN CASE
GZ250 MARAUDER 2005 (K5) USA (E03)

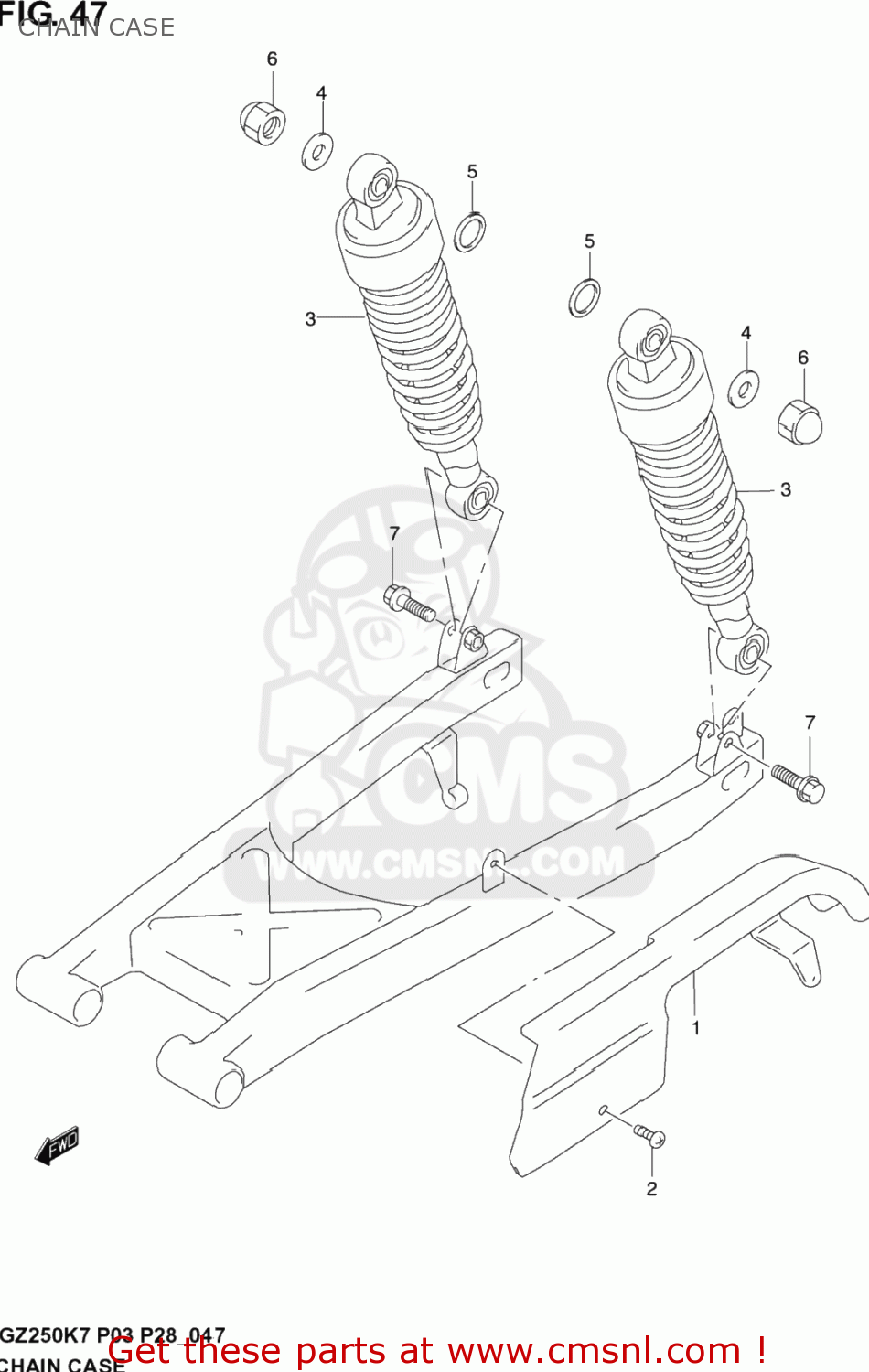

Chain case diagram GZ250 MARAUDER 2005 (K5) USA (E03)
CHAIN CASE GZ250 MARAUDER 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6131012FA0
ref: 1-1
61310-12FB0
CASE, CHAIN
€ 99.00
1-2
6131012FB0
ref: 1-2
CASE,CHAIN GZ1
€ 99.00
2
0214206103
ref: 2
02142-0610A
SCREW 6X10
€ 2.00
3
6210013FA0
ref: 3
ABSORBER ASSY,RR SHOCK
€ 280.00
4
0916010127
ref: 4
09160-10093
WASHER (10.5X24X2.3)
€ 2.00
5
0832201127
ref: 5
WASHER
€ 2.00
6
0831310107
ref: 6
NUT
€ 2.50
7
0910310019
ref: 7
BOLT(10X37)
€ 2.50
