GZ250 MARAUDER 2005 (K5) USA (E03)

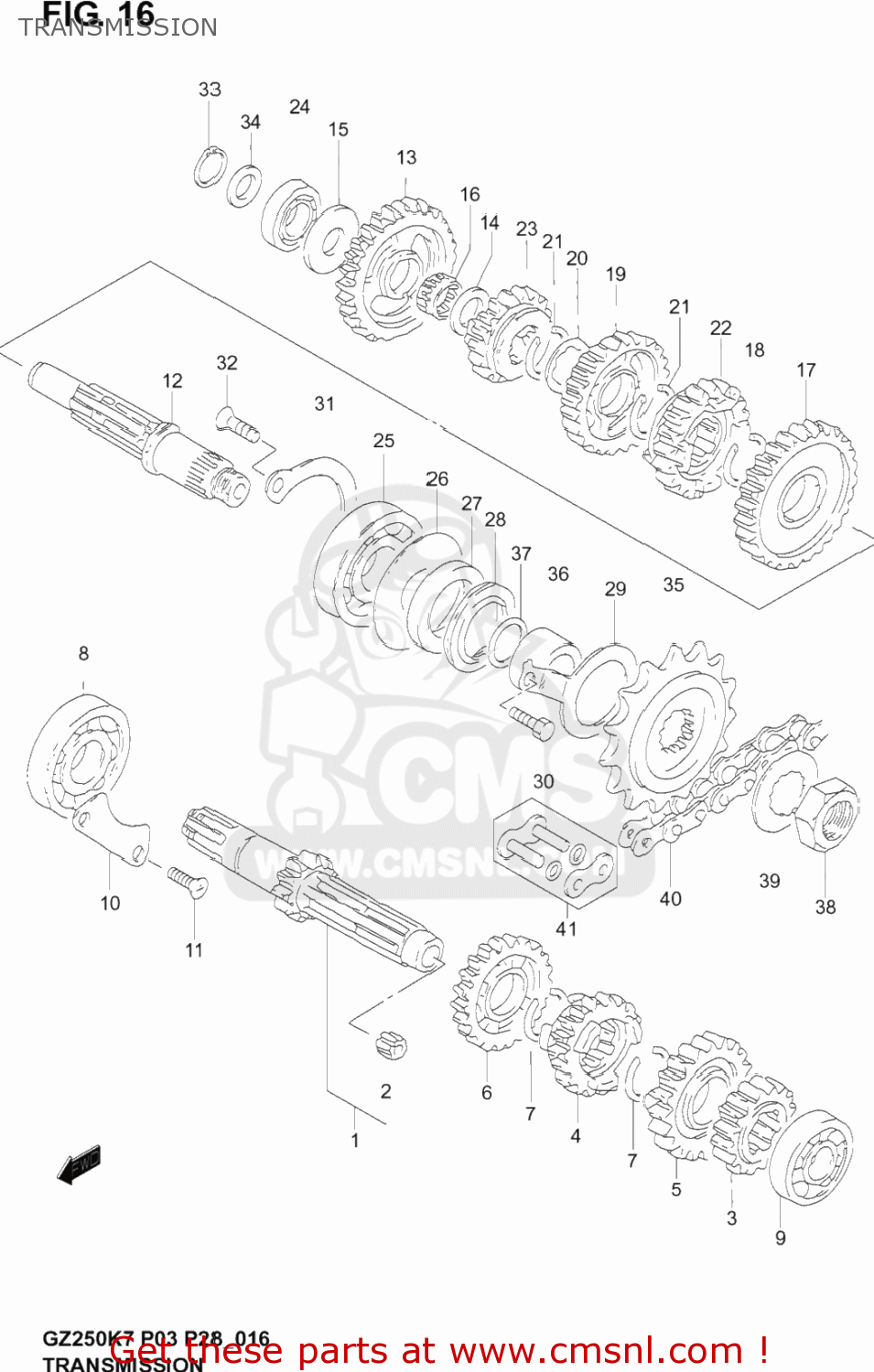

Transmission diagram GZ250 MARAUDER 2005 (K5) USA (E03)
TRANSMISSION GZ250 MARAUDER 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412038202
ref: 1-1
24120-38203
SHAFT,COUNTER (NT:11)
€ 105.00
1-2
2412038203
ref: 1-2
SHAFT,COUNTER(NT:11)
€ 105.00
2
2412538201
ref: 2
BUSH
€ 3.50
3
2422132412
ref: 3
GEAR,2ND DRIVE(NT:16)
€ 89.50
4
2423138201
ref: 4
GEAR,3RD DRIVE(NT:19)
€ 95.50
5
2424132401
ref: 5
GEAR,4TH DRIVE(NT:20)
€ 57.00
6
2425132420
ref: 6
GEAR,5TH DRIVE(NT:22)
€ 82.50
7
0938022006
ref: 7
CIRCLIP
€ 3.00
8
0926222028
ref: 8
BEARING(22X56X16)
€ 59.50
9
0926217046
ref: 9
BEARING(17X40X12)
€ 23.00
10
2474138200
ref: 10
RETAINER,CNTR SHAFT BEARING
€ 4.50
11
0912506110
ref: 11
BOLT(6X12)
€ 2.50
12
2413038301
ref: 12
SHAFT,DRIVE
€ 164.50
13
2431132401
ref: 13
GEAR,1ST DRIVEN(NT:29)
€ 89.50
14
0918117195
ref: 14
SHIM(17X28X1)
€ 3.00
15
0821117363
ref: 15
WASHER
€ 2.00
16
0926317004
ref: 16
BEARING(17X21X9.8)
€ 7.00
17
2432032411
ref: 17
GEAR,2ND DRIVEN(NT:27)
€ 87.50
18
0938022006
ref: 18
CIRCLIP
€ 3.00
19
2433038202
ref: 19
GEAR,3RD DRIVEN(NT:24)
€ 74.00
20
0916722011
ref: 20
WASHER,LOCK
€ 3.00
21
0938022006
ref: 21
CIRCLIP
€ 3.00
22
2434138201
ref: 22
GEAR,4TH DRIVEN(NT:20)
€ 92.50
23
2435138201
ref: 23
GEAR,5TH DRIVEN(NT:18)
€ 84.50
24
0926417001
ref: 24
BEARING(17X36X12)
€ 27.00
25
0926222013
ref: 25
BEARING(22X56X16)
€ 58.00
26
0916035007
ref: 26
WASHER(35X55X1)
€ 2.50
27
0928230003
ref: 27
09282-30004
OIL SEAL (30X43X5)
€ 9.00
28
0928330041
ref: 28
SEAL,OIL(30X43X7)
€ 10.50
29
2475138210
ref: 29
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.50
30
0150006123
ref: 30
01500-0612A
BOLT
€ 2.00
31
2475232400
ref: 31
RETAINER,DRIVE SHAFT BEARING
€ 3.50
32
0212206123
ref: 32
02122-0612A
SCREW
€ 3.00
33
0833131176
ref: 33
08331-3117A
CIRCLIP,17MM
€ 2.00
34
0918117139
ref: 34
SHIM(17X24X1)
€ 3.00
35
27510C25D00J000
ref: 35
27510-25D00
SPROCKET, ENGINE (NT:15)
€ 37.00
36
2753138300
ref: 36
SPACER
€ 32.50
37
0928021008
ref: 37
O RING(D:2.5,ID:21)
€ 2.00
38
0914018008
ref: 38
NUT
€ 4.50
39
0916722012
ref: 39
WASHER,LOCK
€ 1.50
40
27600C14A10J110
ref: 40
27600-14A10-110
CHAIN ASSY (DID520VC5, 110LE)
€ 144.50
41
27620C14A10J000
ref: 41
JOINT SET OPT
€ 9.00
