CYLINDER

GZ250 MARAUDER 2005 (K5) USA (E03)

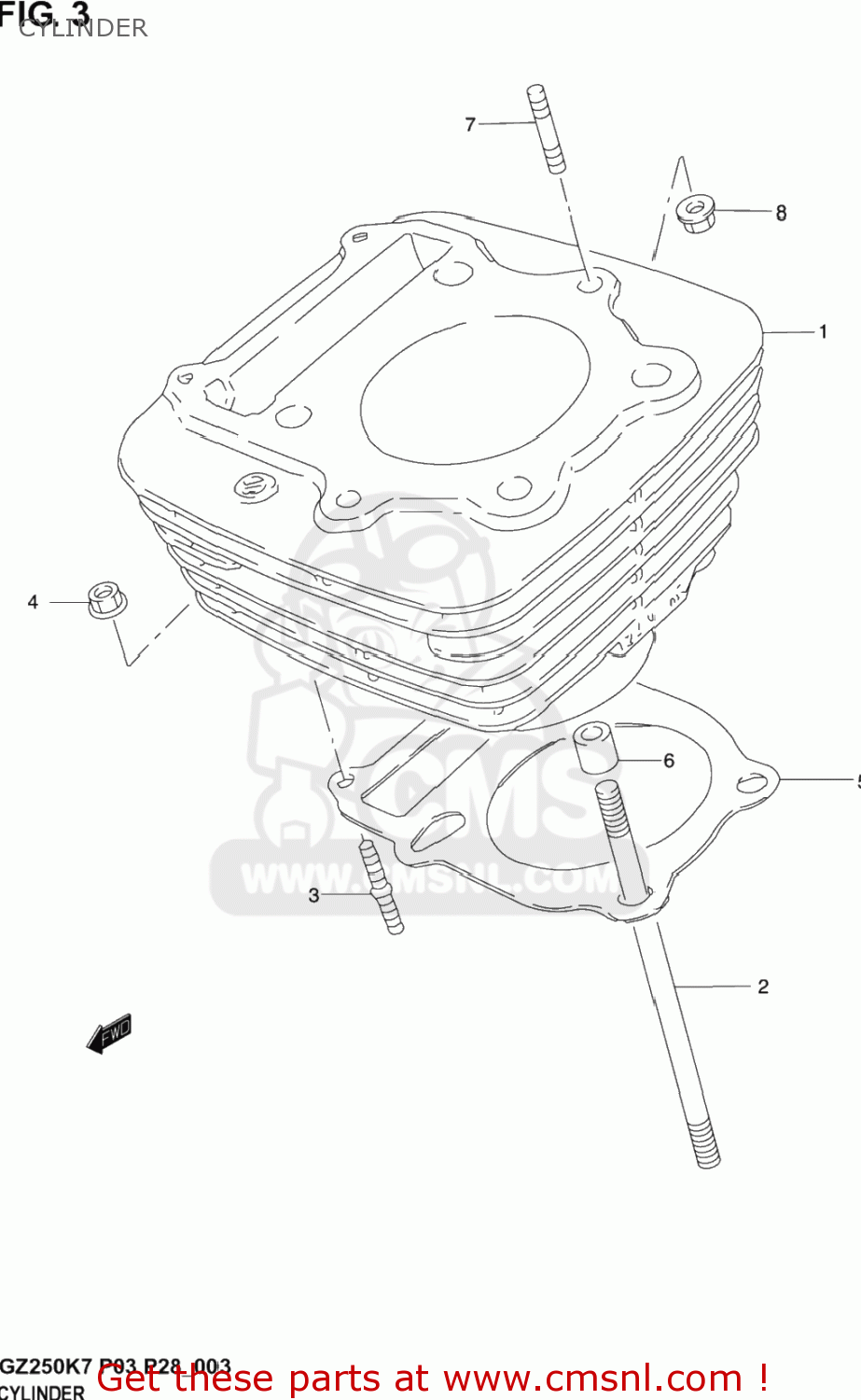

Cylinder diagram GZ250 MARAUDER 2005 (K5) USA (E03)

CYLINDER GZ250 MARAUDER 2005 (K5) USA (E03)

CYLINDER GZ250 MARAUDER 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

11210382040F0
ref: 1

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106208
ref: 3
01421-0620A

STUD 6X20

€ 2.50

4

0831610067
ref: 4

NUT

€ 2.00

5

1124138301
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50

6

0421113189
ref: 6

PIN

€ 2.50

7

0142106307
ref: 7

BOLT,STUD

€ 2.50

8

0831610067
ref: 8

NUT

€ 2.00
