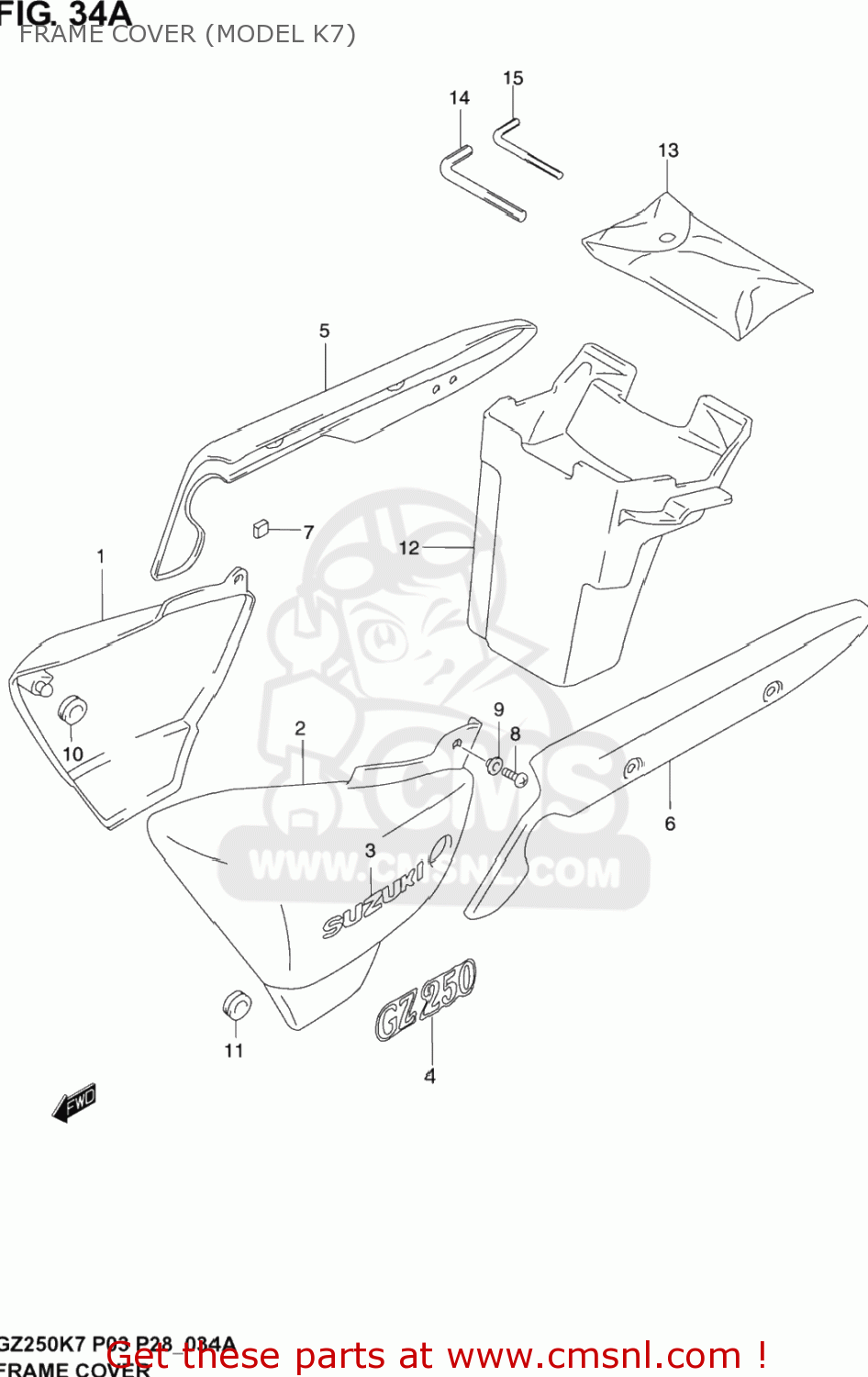

FRAME COVER (MODEL K7)

ref

part #

description

quantity

1-1

471110AE20YAY
ref: 1-1

COVER,FRAME RH

€ 35.50

1-2

471110AE10YBA
ref: 1-2
47111-0AE20-YBA

COVER,FRAME RH

€ 36.50

2-1

472110AE20YAY
ref: 2-1

COVER,FRAME LH

€ 43.50

2-2

472110AE10YBA
ref: 2-2
47211-0AE20-YBA

COVER,FRAME LH

€ 36.50

3-1

6813112F40DUF
ref: 3-1

EMBLEM,FRAME CO

€ 0.00

3-2

6813112F40DUG
ref: 3-2

EMBLEM,FRAME CO

€ 0.00

4-1

6813112F50NW9
ref: 4-1

EMBLEM,SUZUKI

€ 9.00

4-2

6813112F50DUH
ref: 4-2

EMBLEM,SUZUKI

€ 9.00

5

4712112FA0
ref: 5

COVER, FRAME REAR RH

€ 65.00

6

4722112FA0
ref: 6

COVER, FRAME REAR LH

€ 67.50

7

5312333E00
ref: 7
33652-01D10

CUSHION

€ 3.00

8

0214206123
ref: 8
02142-0612A

SCREW 6X12

€ 2.00

9

0916906071
ref: 9

WASHER

€ 2.50

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0932008013
ref: 11

CUSHION

€ 4.00

12

92211C12F01J000
ref: 12

BODY, LUGGAGE BOX

€ 15.50

13

0980021022
ref: 13

TOOL ASSY

€ 27.00

14

0981600050
ref: 14

SPANNER,HEXAGON(6)

€ 5.50

15

0981600103
ref: 15

SPANNER,HEXAGON(4)

€ 3.00
