CRANKCASE COVER

LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)

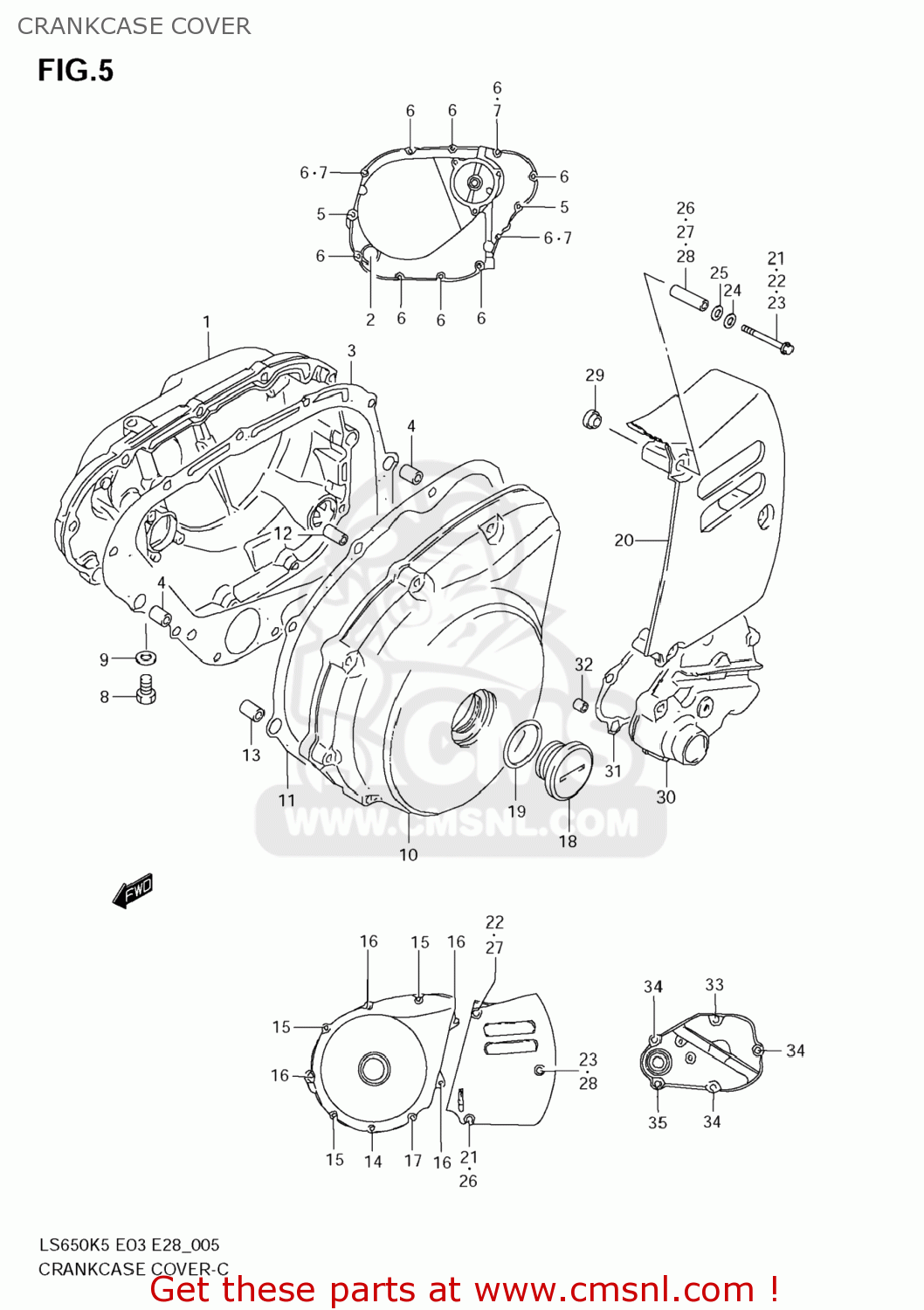

Crankcase cover diagram LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)

CRANKCASE COVER LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)
CRANKCASE COVER LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)
CRANKCASE COVER LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)
prices are in EUR
ref
part #
description
quantity
1
1134024B00
ref: 1
COVER,CLUTCH
1134024B00
€ 230.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3-1
1148224B11
ref: 3-1
GASKET,CLUTCH COVER (NAS)
1148224B11
€ 26.00
3-2
1148224B20
ref: 3-2
GASKET,CLUTCH COVER (NAS)
€ 24.00
4
0421111169
ref: 4
PIN
0421111169
€ 2.00
5
0910306214
ref: 5
BOLT(6X35)
0910306214
€ 2.50
6
0910306212
ref: 6
BOLT(6X25)
0910306212
€ 2.50
7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
8
0924712104
ref: 8
PLUG,12X9
0924712104
€ 2.50
9
0916812002
ref: 9
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
10
1135124B10
ref: 10
COVER,GENERATOR
1135124B10
€ 121.00
11
1148324B01H17
ref: 11
GASKET,GENERATOR COVER (NAS)
1148324B01H17
€ 15.50
12
0421109189
ref: 12
PIN
0421109189
€ 2.00
13
0421111189
ref: 13
PIN
0421111189
€ 2.00
14
0910306212
ref: 14
BOLT(6X25)
0910306212
€ 2.50
15
0910306214
ref: 15
BOLT(6X35)
0910306214
€ 2.50
16
0910306224
ref: 16
BOLT(6X45)
0910306224
€ 3.00
17
0910306238
ref: 17
BOLT(6X50)
0910306238
€ 2.50
18
0925936011
ref: 18
PLUG,36X10
0925936011
€ 8.50
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
20
1136124B10
ref: 20
COVER,ENGINE SPROCKET
1136124B10
€ 75.00
21
0910306224
ref: 21
BOLT(6X45)
0910306224
€ 3.00
22
0910306238
ref: 22
BOLT(6X50)
0910306238
€ 2.50
23
0910306216
ref: 23
BOLT(6X55)
0910306216
€ 2.50
24
0916006125
ref: 24
WASHER(6.5X14X1.6)
0916006125
€ 2.00
25
0916109006
ref: 25
WASHER(8.7X15X2.1)
0916109006
€ 2.50
26
0918006277
ref: 26
SPACER(6.5X9X31.5)
0918006277
€ 4.00
27
0918006279
ref: 27
SPACER(6.5X9X38.3)
0918006279
€ 4.50
28
0918006280
ref: 28
SPACER(6.5X9X41.3)
0918006280
€ 4.00
29
0916109005
ref: 29
WASHER(8.7X16X5)
0916109005
€ 2.50
30
1137124B01
ref: 30
COVER,GEAR SHIFT
1137124B01
€ 43.00
31-1
1148524B10
ref: 31-1
GASKET,GEAR SHIFT COVER (NAS)
1148524B10
€ 5.50
31-2
1148524B20
ref: 31-2
GASKET,GEAR SHIFT COVER (NAS)
€ 0.00
32
0421109109
ref: 32
PIN
0421109109
€ 2.00
33-1
0154706163
ref: 33-1
01547-0616B
BOLT
0154706163
€ 2.50
33-2
015470616A
ref: 33-2
BOLT
015470616A
€ 2.00
34-1
0154706303
ref: 34-1
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
34-2
015470630A
ref: 34-2
BOLT
015470630A
€ 2.50
35-1
0154706353
ref: 35-1
01547-0635B
BOLT
0154706353
€ 3.00
35-2
015470635A
ref: 35-2
BOLT
015470635A
€ 3.00
