TURN SIGNAL LAMP

LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)

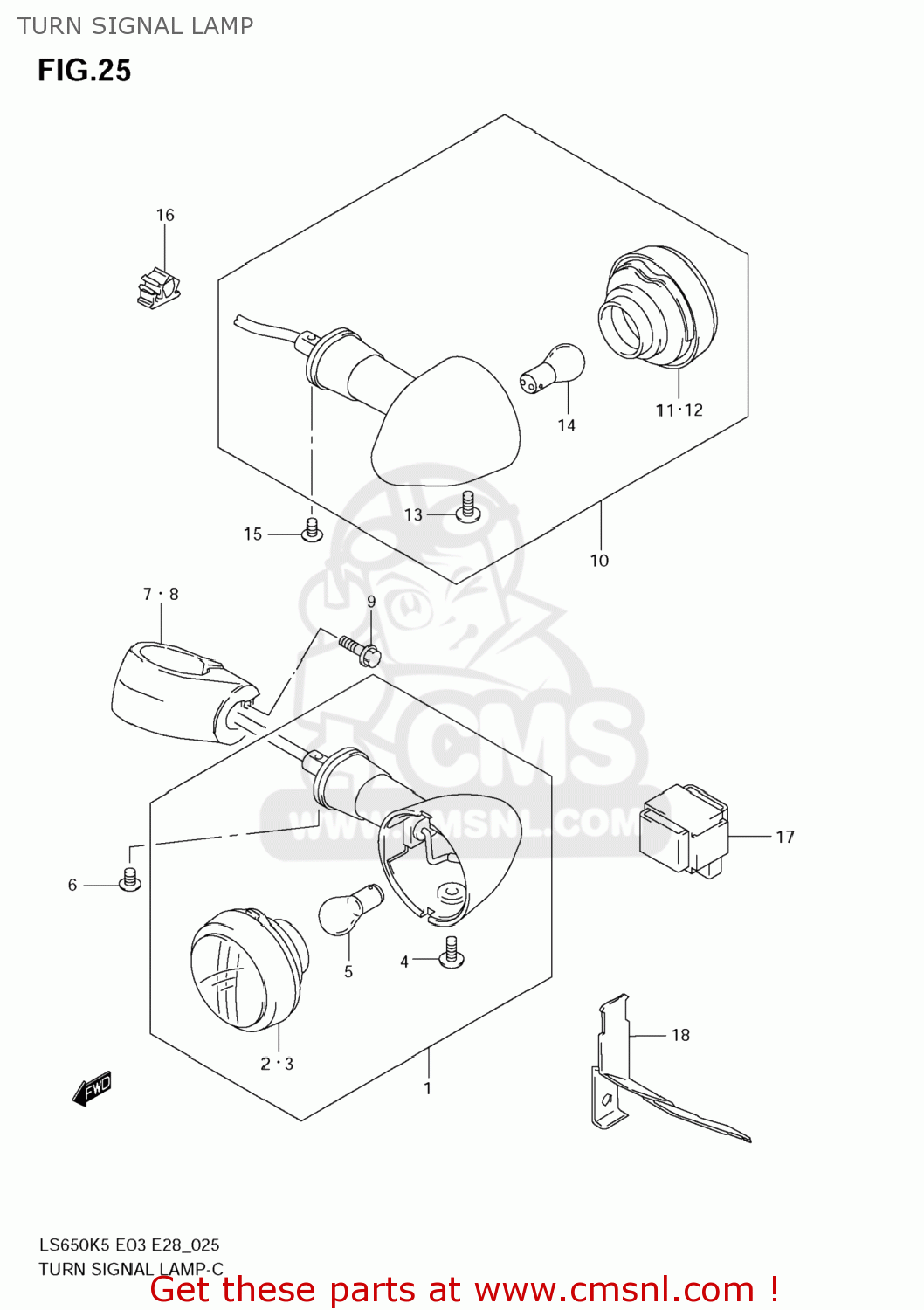

Turn signal lamp diagram LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1-1

3560138AB0
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 99.50

1-2

3560138AD0
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,R

€ 57.50

1-3

3560238AB0
ref: 1-3

LAMP ASSY,FR TURN SIGNAL,L

€ 99.50

1-4

3560238AD0
ref: 1-4

LAMP ASSY,FR TURN SIGNAL,L

€ 82.50

3561038AA0
ref: 2

LENS

€ 19.50

3563038AA0
ref: 3

LENS

€ 19.50

3562338AA0
ref: 4

SCREW(4X10)

€ 4.00

0947112083
ref: 5
09471-12128

BULB(12V21/5W)

€ 6.00

0214206107
ref: 6

SCREW

€ 2.00

3567124B00
ref: 7

BRACKET,FR TURNSIGNAL LAMP,R

€ 45.50

3568124B00
ref: 8

BRACKET,FR TURNSIGNAL LAMP,L

€ 45.50

0154705257
ref: 9

BOLT

€ 2.00

10-1

3560338AA0
ref: 10-1

LAMP ASSY,RR TURNSIGNAL,R

€ 83.50

10-2

3560438AA0
ref: 10-2

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

3563038AE1
ref: 11

LENS

€ 19.50

3561038AE1
ref: 12

LENS

€ 19.50

3562338AA0
ref: 13

SCREW(4X10)

€ 4.00

0947112045
ref: 14

BULB(12V21W)

€ 5.00

0214206167
ref: 15

SCREW

€ 2.00

0940307315
ref: 16

CLAMP

€ 3.50

3861026E00
ref: 17

RELAY ASSY

€ 47.00

3862124B10
ref: 18

BRACKET,TURNSIGNAL RELAY

€ 0.00

TURN SIGNAL LAMP
