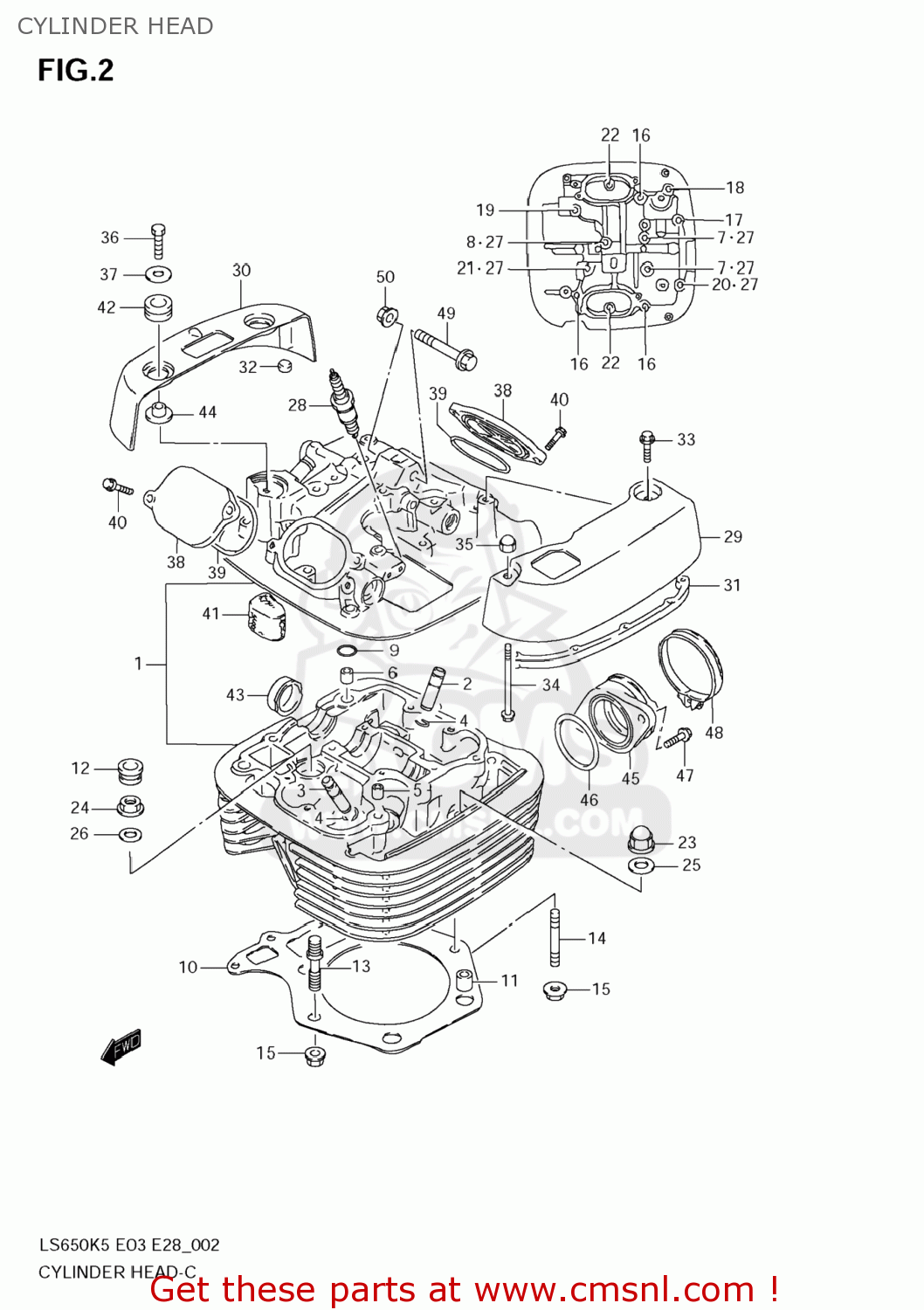

CYLINDER HEAD

ref

part #

description

quantity

1

1110024B10
ref: 1

HEAD ASSY,CYLINDER

€ 893.00

2

1111544B70
ref: 2

GUIDE,VALVE

€ 19.00

3

1111537470
ref: 3

GUIDE,VALVE

€ 20.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0920611004
ref: 6

PIN(8.4X11X14)

€ 6.00

7

0910306064
ref: 7

BOLT(6X60)

€ 2.50

8

0910306103
ref: 8

BOLT(6X70)

€ 2.50

9

1117824B00
ref: 9

O RING,CYL HEAD COVER

€ 2.00

10

1114124B03
ref: 10

GASKET,CYLINDER HEAD (NAS)

€ 38.00

11

0421113189
ref: 11

PIN

€ 2.50

12

1114537401
ref: 12

CAP,CYLINDER HEAD SEAL

€ 9.00

13

0910808205
ref: 13

BOLT,STUD

€ 10.50

14

0910808206
ref: 14

BOLT,STUD(8X31)

€ 3.50

15

083161008B
ref: 15

NUT

€ 3.00

16

0910306026
ref: 16

BOLT(6X39)

€ 2.00

17

0910306033
ref: 17

BOLT(6X125)

€ 3.50

18

0910306052
ref: 18

BOLT(6X115)

€ 5.00

19

0910306064
ref: 19

BOLT(6X60)

€ 2.50

20

0910306085
ref: 20

BOLT(6X130)

€ 4.50

21

0910306102
ref: 21

BOLT(6X55)

€ 2.50

22

015500625B
ref: 22

BOLT

€ 2.50

23

0915909003
ref: 23

NUT

€ 6.50

24

0915909004
ref: 24

NUT

€ 2.00

25

0916810031
ref: 25

GASKET(10.2X20X2).3 (NAS)

€ 2.00

26

0916810031
ref: 26

GASKET(10.2X20X2).3 (NAS)

€ 2.00

27

0916806023
ref: 27

GASKET(5.8X13X1.2) (NAS)

€ 2.00

28-1

0948200334
ref: 28-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

28-2

0948200335
ref: 28-2

PLUG,SPARK(X24EPR-U9)

€ 4.00

28-3

0948200354
ref: 28-3

PLUG,SPARK(DPR7EA-9)

€ 4.00

28-4

0948200355
ref: 28-4
09482-00354

SPARK PLUG X22E

€ 4.00

28-4

0948200355
ref: 28-4
09482-00354

SPARK PLUG X22E

€ 4.00

29

1117124B04
ref: 29

CAP,HEAD COVER,L

€ 132.00

30

1117224B04
ref: 30

CAP,CYLINDER HEAD COVER,R

€ 132.00

31

1127224B01
ref: 31

CUSHION,HEAD COVER CAP,L

€ 7.00

32

1127324B00
ref: 32

CUSHION,R CAP

€ 4.00

33

0155006207
ref: 33

BOLT

€ 2.50

34

015500665B
ref: 34

BOLT

€ 3.00

35

0831320067
ref: 35

NUT

€ 2.00

36

0150006257
ref: 36

BOLT

€ 2.00

37

0916006134
ref: 37

WASHER(6.5X24X1.6)

€ 1.50

38

1117524B10
ref: 38

CAP,INSPECTION

€ 10.50

39

0928060004
ref: 39

O RING(D:2.4,ID:23)

€ 4.50

40

015500620B
ref: 40

BOLT

€ 2.50

41

1118624B02
ref: 41

SEPARATOR,OIL BREATHER COVER

€ 9.00

42

0932013015
ref: 42

CUSHION

€ 3.00

43

0924130008
ref: 43

PLUG(OD:30)

€ 7.00

44

0930106007
ref: 44

BUSH

€ 3.50

45

1310114A10
ref: 45

PIPE ASSY,INTAKE

€ 38.50

46

0928046002
ref: 46

O RING(D:2.4,ID:45.7)

€ 9.50

47

021121620B
ref: 47

SCREW

€ 2.50

48

0940258208
ref: 48

CLAMP

€ 5.50

49

0910308170
ref: 49
09103-08339

BOLT

€ 3.50

50

083193108A
ref: 50

NUT

€ 2.50
