STARTER CLUTCH

LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)

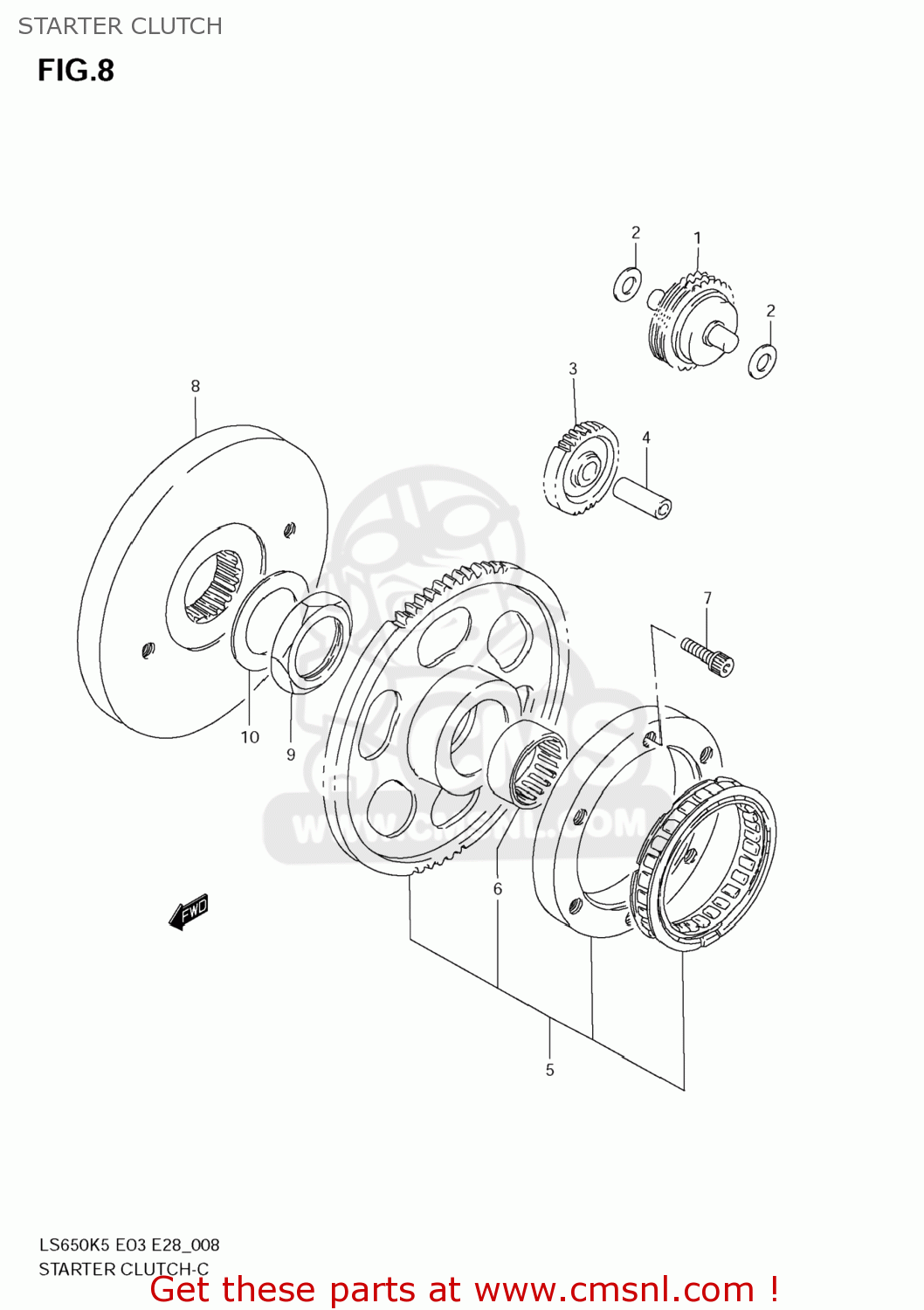

Starter clutch diagram LS650 BOULEVARD S40 2007 (K7) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1260024B10
ref: 1
12600-24B11

LIMITER ASSEMBLY,STARTER IDLER GEAR N

€ 185.50

1260024B10
ref: 1
12600-24B11

LIMITER ASSEMBLY,STARTER IDLER GEAR N

€ 185.50

0918110167
ref: 2

SHIM(10X18X1)

€ 3.00

1261224B03
ref: 3

GEAR,STARTER IDLE NO.2

€ 44.50

0920210011
ref: 4

PIN(10X30)

€ 7.00

1260024831
ref: 5

CLUTCH SET,STARTER

€ 306.00

0926331009
ref: 6

BEARING(31X39X17.8)

€ 25.50

0910608095
ref: 7

BOLT(8X16)

€ 2.50

1265624B02
ref: 8

FLYWHEEL

€ 92.00

1266424B01
ref: 9

NUT,FLYWHEEL

€ 9.50

0916435002
ref: 10

WASHER

€ 5.00

all assemblies
