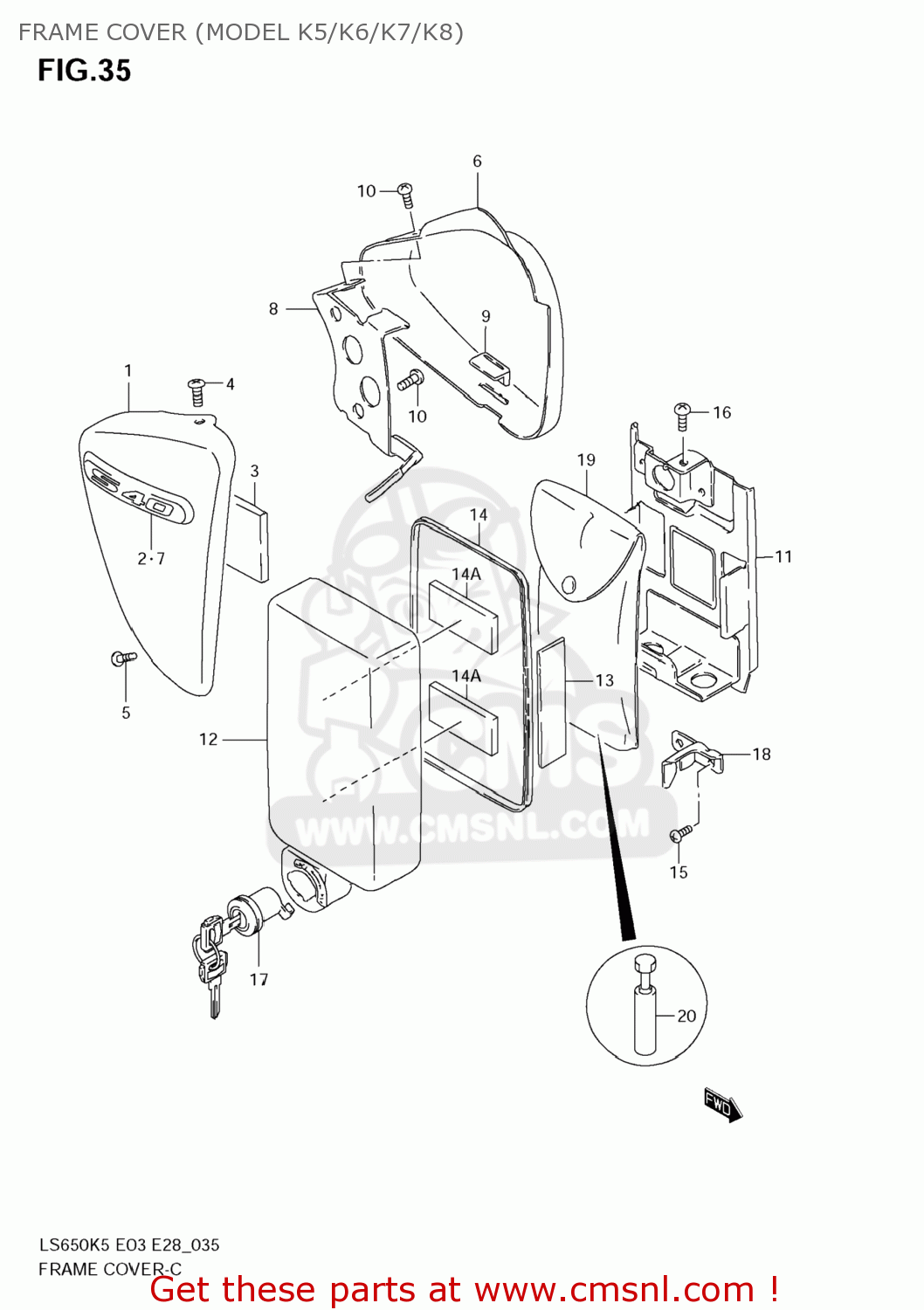

FRAME COVER (MODEL K5/K6/K7/K8)

ref

part #

description

quantity

1-1

4710024CA0YAY
ref: 1-1

COVER ASSY,FRAME,R(BLACK)

€ 0.00

1-2

4710024CA0YC3
ref: 1-2

COVER, FRAME RH (WHITE)

€ 0.00

1-3

4710024CA0YDV
ref: 1-3

COVER ASSY,FRAME,R(SILVER)

€ 0.00

1-4

4710024CA0YHL
ref: 1-4

COVER, FRAME RH (RED)

€ 88.50

1-5

4710024CA0YC3
ref: 1-5

COVER, FRAME RH (WHITE)

€ 0.00

1-6

4710024CA0YBA
ref: 1-6

COVER ASSY,FRAME,R(BLUE)

€ 0.00

1-7

4710024CA0YMD
ref: 1-7

COVER ASSY,FRAME,R(SILVER)

€ 91.00

2

6813124CA0
ref: 2

EMBLEM,FRAME COVER

€ 16.50

3

1371984150
ref: 3

PAD

€ 2.50

4

021420510B
ref: 4

SCREW

€ 2.50

5

021127516B
ref: 5

SCREW

€ 2.50

6-1

4720024CA0YAY
ref: 6-1

COVER ASSY,FRAME,L(BLACK)

€ 0.00

6-2

4720024CA0YC3
ref: 6-2

COVER ASSY,FRAME,L(WHITE)

€ 0.00

6-3

4720024CA0YDV
ref: 6-3

COVER ASSY,FRAME,L(SILVER)

€ 0.00

6-4

4720024CA0YHL
ref: 6-4

COVER ASSY,FRAME,L(RED)

€ 0.00

6-5

4720024CA0YC3
ref: 6-5

COVER ASSY,FRAME,L(WHITE)

€ 0.00

6-6

4720024CA0YBA
ref: 6-6

COVER ASSY,FRAME,L(BLUE)

€ 0.00

6-7

4720024CA0YMD
ref: 6-7

COVER ASSY,FRAM

€ 91.00

7

6813124CA0
ref: 7

EMBLEM,FRAME COVER

€ 16.50

8

4718024B03
ref: 8

BRACKET,FRAME COVER,L

€ 13.00

9

4711745000
ref: 9

CUSHION,FRAME COVER

€ 1.50

10

021220612B
ref: 10

SCREW

€ 3.00

11

4743024B01
ref: 11

HOLDER,TOOL

€ 11.00

12-1

4744024B10
ref: 12-1
47440-24B20

COVER COMP,TOOL HOLDER

€ 36.00

12-2

4744024B20
ref: 12-2

COVER,TOOL HOLDER

€ 36.00

13

3365238A10
ref: 13
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

14

4744524B00
ref: 14

MOLDING

€ 2.50

14A

3365231F00
ref: 14A

PROTECTOR(20X50X11)

€ 3.00

15

021420510B
ref: 15

SCREW

€ 2.50

16

021120610B
ref: 16

SCREW, CENTER SHAFT

€ 1.50

17

9570024870
ref: 17
95700-24871

LOCK SET,TOOL HOLDER

€ 45.00

18

4743424B00
ref: 18

PLATE,TOOL HOLDER LOCK

€ 2.50

19-1

0980021012
ref: 19-1

TOOL ASSY

€ 40.00

19-2

0980021055
ref: 19-2

TOOL ASSY

€ 6.00

20

9622024B00
ref: 20

GAUGE ASSY,TENSION

€ 21.50
