CLUTCH
LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)

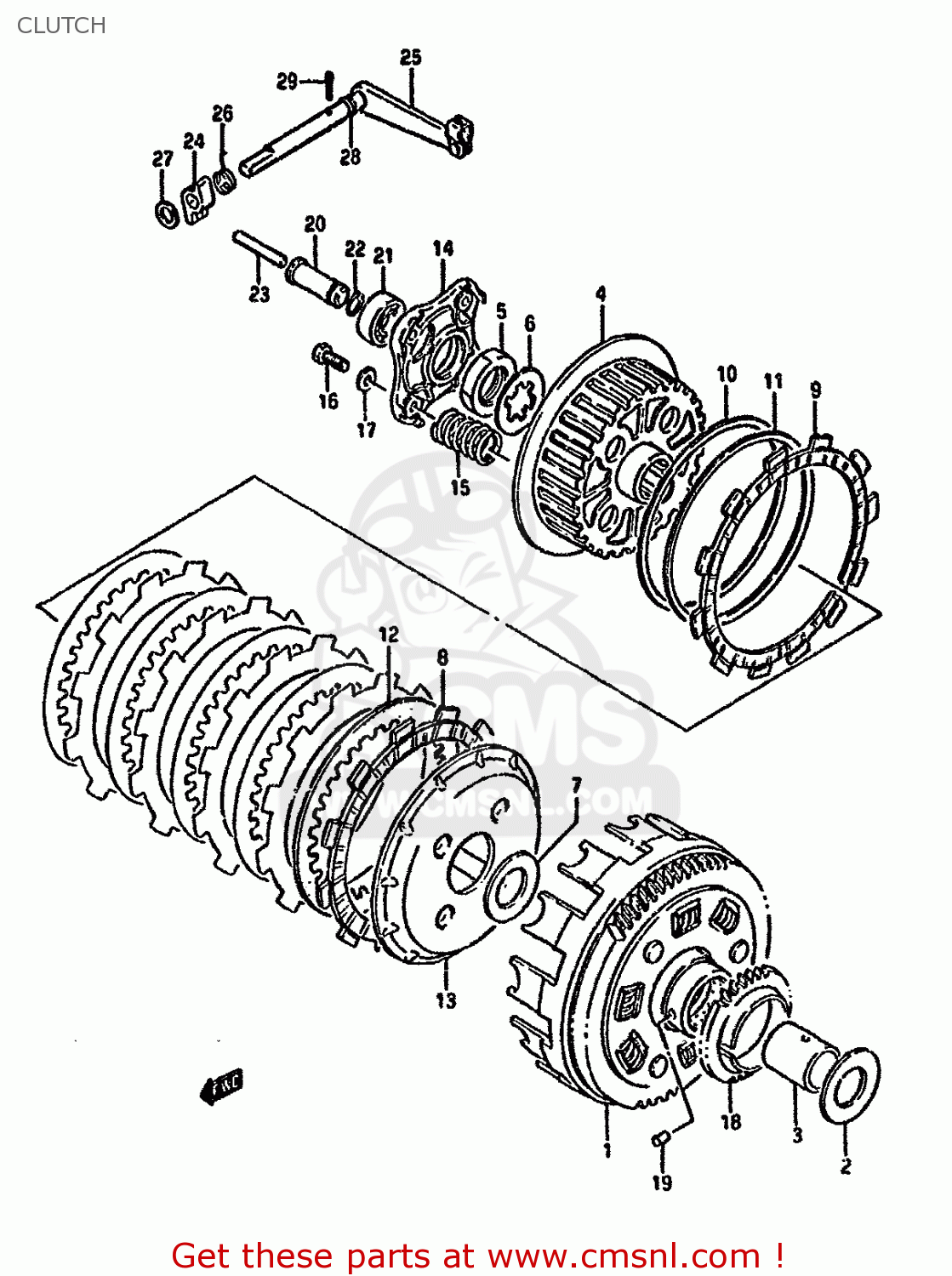

Clutch diagram LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)
CLUTCH LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120024B01
ref: 1-1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 263.50
1-2
2120024B11
ref: 1-2
MODEL M/R E2,E15,E16
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.00
2
0821122443
ref: 2
WASHER
€ 3.00
3
0918022023
ref: 3
SPACER(22X28X32.5)
€ 15.50
4
2141137401
ref: 4
HUB,CLUTCH SLEEVE
€ 78.00
5
0914022009
ref: 5
NUT
€ 6.00
6
0916722005
ref: 6
WASHER,LOCK
€ 2.50
7
0821122403
ref: 7
WASHER
€ 4.00
8
2144137400
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
9
2144237401
ref: 9
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
10
2147137400
ref: 10
SEAT,WAVE WASHER(T:1.4)
€ 8.00
11
0916400004
ref: 11
WASHER
€ 9.00
12
2145114A00
ref: 12
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
13
2146237400
ref: 13
DISC,CLUTCH PRESSURE
€ 41.00
14
2146537400
ref: 14
PLATE,RELEASE
€ 11.50
15
0944020016
ref: 15
SPRING
€ 5.00
16
0110706207
ref: 16
BOLT
€ 2.00
17
0832221067
ref: 17
WASHER
€ 2.00
18
1632124B00
ref: 18
GEAR,ENG OIL PUMP DRIVE
€ 32.50
19
0926106002
ref: 19
PIN(6X6)
€ 1.50
20
2312124B02
ref: 20
PIECE,CLUTCH PUSH
€ 14.00
21
0811060010
ref: 21
BEARING
€ 15.00
22
0928009005
ref: 22
O RING(D:1.9,ID:8.6)
€ 4.00
23-1
2311124B00445
ref: 23-1
ROD,CLUTCH PUSH
€ 5.50
23-2
2311124B00455
ref: 23-2
ROD,CLUTCH PUSH
€ 5.50
23-3
2311124B00465
ref: 23-3
ROD,CLUTCH PUSH
€ 5.50
24
2326324B01
ref: 24
CAM,CLUTCH RELEASE
€ 7.00
25
2327024B03
ref: 25
ARM ASSY,CLUTCH RELEASE
€ 72.00
26
0944813010
ref: 26
SPRING
€ 14.50
27
0821110141
ref: 27
WASHER,THRUST
€ 2.00
28
0928007004
ref: 28
O RING(D:1.9,ID:6.8)
€ 1.50
29
0411120208
ref: 29
PIN 20X20
€ 1.50
