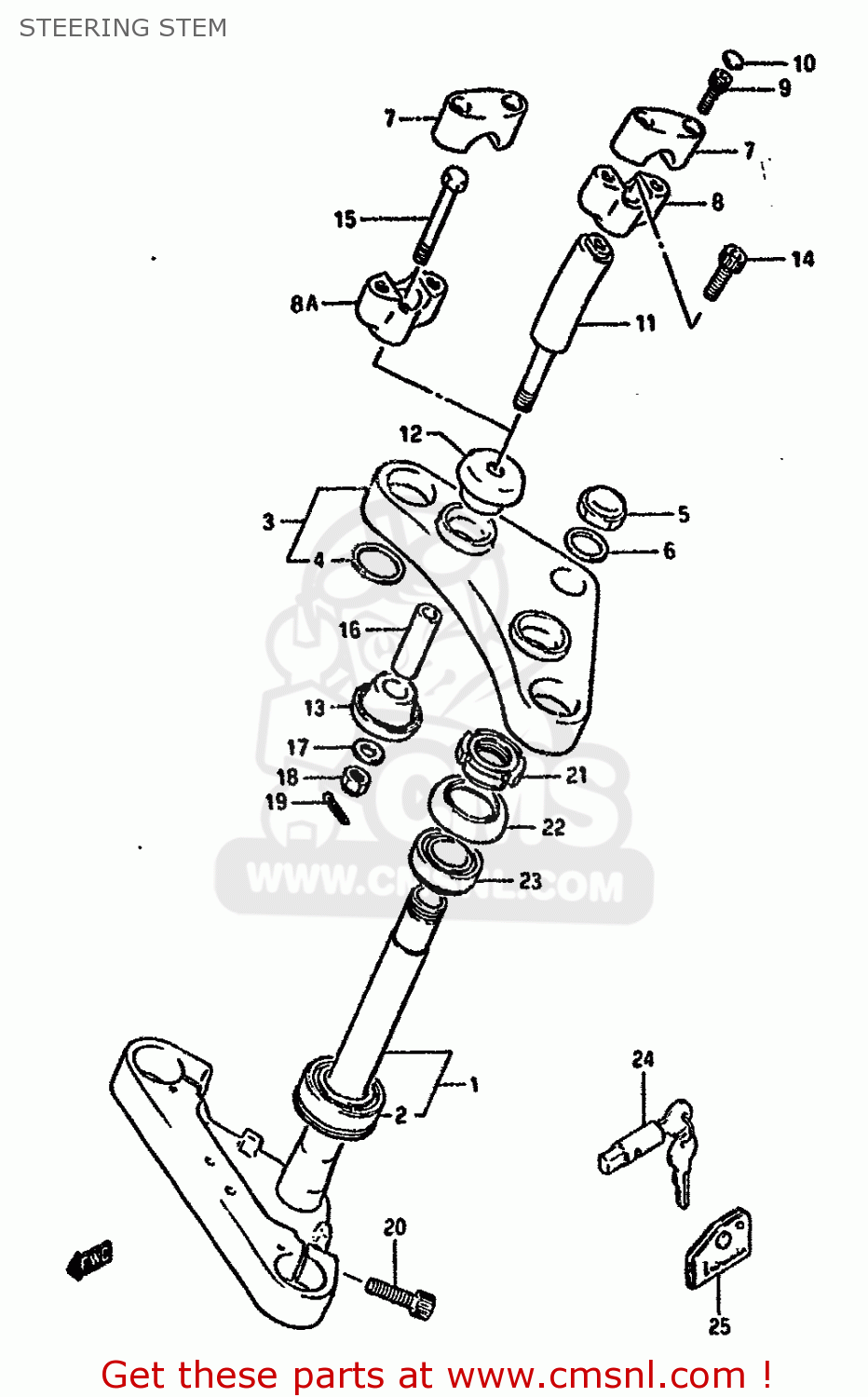

STEERING STEM

ref

part #

description

quantity

1

5141024B20
ref: 1

STEM,STEERING

€ 585.50

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

5131024B00
ref: 3

HEAD,STEERING STEM

€ 478.50

4

5135724B00
ref: 4

WASHER,STEM HEAD,LOWER

€ 2.50

5

5135324B00
ref: 5

NUT,CAP

€ 21.50

6-1

5135627A00
ref: 6-1
MODEL G

WASHER,STEERING STEM

€ 3.00

6-2

5135624B01
ref: 6-2
MODEL J/K/L/M/R

WASHER(22.5X32X1.6)

€ 3.00

7

5621124B00
ref: 7

HOLDER,HANDLE UPR

€ 58.00

8

5622124B00
ref: 8
LS650F

HOLDER,HANDLE LWR

€ 52.00

8A

5622124B10
ref: 8A
LS650P

HOLDER,HANDLE LWR

€ 60.50

9

0711008307
ref: 9

BOLT, LH

€ 4.50

10

0925006009
ref: 10

CAP(OD:14.5)

€ 3.50

11

5623124B00
ref: 11
LS650F

ARM

€ 59.00

12

5624024B00
ref: 12

CUSHION,UPR

€ 28.50

13

5624024B10
ref: 13

CUSHION,LWR

€ 28.50

14

0711010257
ref: 14
LS650F

BOLT

€ 3.00

15

5622324B10
ref: 15
LS650P

BOLT,HANDLBAR CLAMP

€ 10.00

16

0918010065
ref: 16

SPACER(10.2X14X46)

€ 4.50

17

0832221105
ref: 17

WASHER 10MM

€ 2.50

18

0915910027
ref: 18

NUT

€ 3.00

19

0411120208
ref: 19

PIN 20X20

€ 1.50

20

0711010307
ref: 20

BOLT, (10X30)

€ 4.50

21

5163128000
ref: 21

NUT,STEERING STEM(25X44X10)

€ 12.50

22-1

5164349001
ref: 22-1
MODEL G/J/K/L/M

DUST SEAL,STEERING,UPPER

€ 7.50

22-2

5164349002
ref: 22-2
MODEL R

SEAL,STEERING UPR DUST

€ 7.50

23

0926525008
ref: 23

TAPER,ROLLER BEARING

€ 48.50

24

5190022662
ref: 24

LOCK ASSEMBLY,STEERING (NEI

€ 168.50

25

5192024B00
ref: 25

CASE,STEERING KEY

€ 10.50

all assemblies
