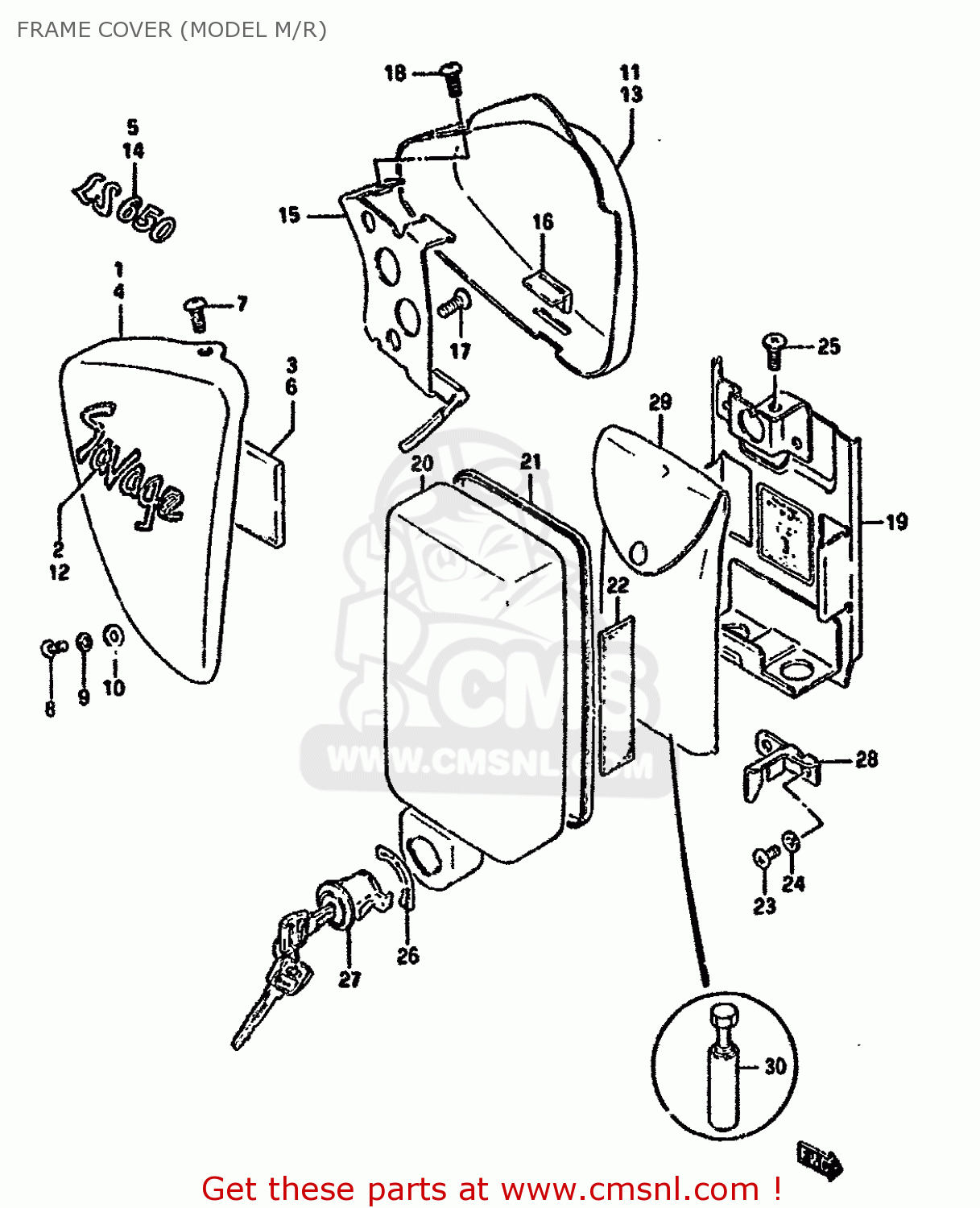

FRAME COVER (MODEL M/R)

ref

part #

description

quantity

1-1

4710024B001WX
ref: 1-1
MODEL M

COVER,FRAME RH (BLACK)

€ 100.00

1-2

4710024B001FX
ref: 1-2
MODEL M

COVER,FRAME,RH

€ 88.50

1-3

4710024B001NX
ref: 1-3
MODEL R

COVER ASSEMBLY,FRAME,RIGHT

€ 86.00

1-4

4710024B0022U
ref: 1-4
MODEL R

COVER ASSY,FRAME,R(MAROON)

€ 92.50

2-1

6813124B0022Z
ref: 2-1
MODEL M FOR 1WX

EMBLEM

€ 17.50

2-2

6813124B0038W
ref: 2-2
MODEL M FOR 1FX

EMBLEM,FRAME COVER(BLUE)

€ 17.50

2-3

6813124B00B6V
ref: 2-3
MODEL R FOR 1NX

EMBLEM,FRAME COVER

€ 12.50

2-4

6813124B00B8K
ref: 2-4
MODEL R FOR 22U

EMBLEM,FRAME COVER

€ 14.50

3

1371984150
ref: 3

PAD

€ 2.50

4-1

4710024B101WX
ref: 4-1
MODEL M E4

COVER,FRAME RH (BLACK)

€ 88.50

4-2

4710024B1033H
ref: 4-2
MODEL M E4

COVER,FRAME RH (BLUE)

€ 88.50

4-3

4710024B101NX
ref: 4-3
MODEL R E4

COVER,FRAME RH (BLACK)

€ 88.50

4-4

4710024B1022U
ref: 4-4
MODEL R E4

COVER,FRAME RH (MAROON)

€ 88.50

5-1

6813124B101EB
ref: 5-1
MODEL M E4 FOR 1WX

EMBLEM (RED)

€ 0.00

5-2

6813124B1038S
ref: 5-2
MODEL M E4 FOR 33H

EMBLEM (BLUE)

€ 14.00

5-3

6813124B1023A
ref: 5-3
MODEL R E4 FOR 1NX

EMBLEM,FRAME COVER

€ 18.00

5-4

6813124B101YE
ref: 5-4
MODEL R E4 FOR 22U

EMBLEM

€ 16.50

6

1371984150
ref: 6

PAD

€ 2.50

7-1

0214205124
ref: 7-1
MODEL M

SCREW, FRONT & REAR

€ 1.50

7-2

0212205123
ref: 7-2
MODEL R

SCREW

€ 2.00

8-1

0214205164
ref: 8-1
MODEL M

SCREW

€ 2.50

8-2

0211275163
ref: 8-2
MODEL R

SCREW

€ 2.50

9

0832121055
ref: 9
MODEL M

WASHER,LOCK

€ 3.00

10

0832221055
ref: 10
MODEL M

WASHER,5MM

€ 2.50

11-1

4720024B001WX
ref: 11-1
MODEL M

COVER ASSY,FRAME,L(BLACK)

€ 85.50

11-2

4720024B001FX
ref: 11-2
MODEL M

COVER,FRAME,LH

€ 101.00

11-3

4720024B001NX
ref: 11-3
MODEL R

COVER ASSY,FRAME,L(BLACK)

€ 87.50

11-4

4720024B0022U
ref: 11-4
MODEL R

COVER ASSY,FRAME,L(MAROON)

€ 94.00

12-1

6813124B0022Z
ref: 12-1
MODEL M FOR 1WX

EMBLEM

€ 17.50

12-2

6813124B0038W
ref: 12-2
MODEL M FOR 1FX

EMBLEM,FRAME COVER(BLUE)

€ 17.50

12-3

6813124B00B6V
ref: 12-3
MODEL R FOR 1NX

EMBLEM,FRAME COVER

€ 12.50

12-4

6813124B00B8K
ref: 12-4
MODEL R FOR 22U

EMBLEM,FRAME COVER

€ 14.50

13-1

4720024B101WX
ref: 13-1
MODEL M E4

COVER,FRAME LH (BLACK)

€ 101.00

13-2

4720024B1033H
ref: 13-2
MODEL M E4

COVER,FRAME LH (BLUE)

€ 101.00

13-3

4720024B101NX
ref: 13-3
MODEL R E4

COVER,FRAME LH

€ 101.00

13-4

4720024B1022U
ref: 13-4
MODEL R E4

COVER,FRAME LH (MAROON)

€ 101.00

14-1

6813124B101EB
ref: 14-1
MODEL M E4 FOR 1WX

EMBLEM (RED)

€ 0.00

14-2

6813124B1038S
ref: 14-2
MODEL M E4 FOR 33H

EMBLEM (BLUE)

€ 14.00

14-3

6813124B1023A
ref: 14-3
MODEL R E4 FOR 1NX

EMBLEM,FRAME COVER

€ 18.00

14-4

6813124B101YE
ref: 14-4
MODEL R E4 FOR 22U

EMBLEM

€ 16.50

15

4718024B03
ref: 15

BRACKET,FRAME COVER,L

€ 13.00

16

4711745000
ref: 16

CUSHION,FRAME COVER

€ 1.50

17-1

0212206125
ref: 17-1
MODEL M

SCREW

€ 3.00

17-2

0212206123
ref: 17-2
MODEL R

SCREW

€ 3.00

18-1

0214205124
ref: 18-1
MODEL M

SCREW, FRONT & REAR

€ 1.50

18-2

0214205123
ref: 18-2
MODEL R

SCREW 5X12

€ 1.50

19

4743024B01
ref: 19

HOLDER,TOOL

€ 11.00

20

4744024B10
ref: 20

COVER COMP,TOOL HOLDER

€ 36.00

21

4744524B00
ref: 21

MOLDING

€ 2.50

22

3365238A10
ref: 22

PROTECTOR(20X90)X2

€ 4.50

23-1

0211205105
ref: 23-1
MODEL M

SCREW

€ 2.00

23-2

0214205103
ref: 23-2
MODEL R

SCREW

€ 2.50

24

0832221055
ref: 24
MODEL M

WASHER,5MM

€ 2.50

25

0211206103
ref: 25

SCREW

€ 1.50

26

6822624B00
ref: 26

LABEL,TOOL LOCK COVER

€ 1.50

27

9570024870
ref: 27

LOCK SET,TOOL HOLDER

€ 45.00

28

4743424B00
ref: 28

PLATE,TOOL HOLDER LOCK

€ 2.50

29

0980021012
ref: 29

TOOL ASSY

€ 40.00

30

9622024B00
ref: 30

GAUGE ASSY,TENSION

€ 21.50
