TRANSMISSION (MODEL M/R E2,4,15,16,17,18,22,25,39,53)

LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)

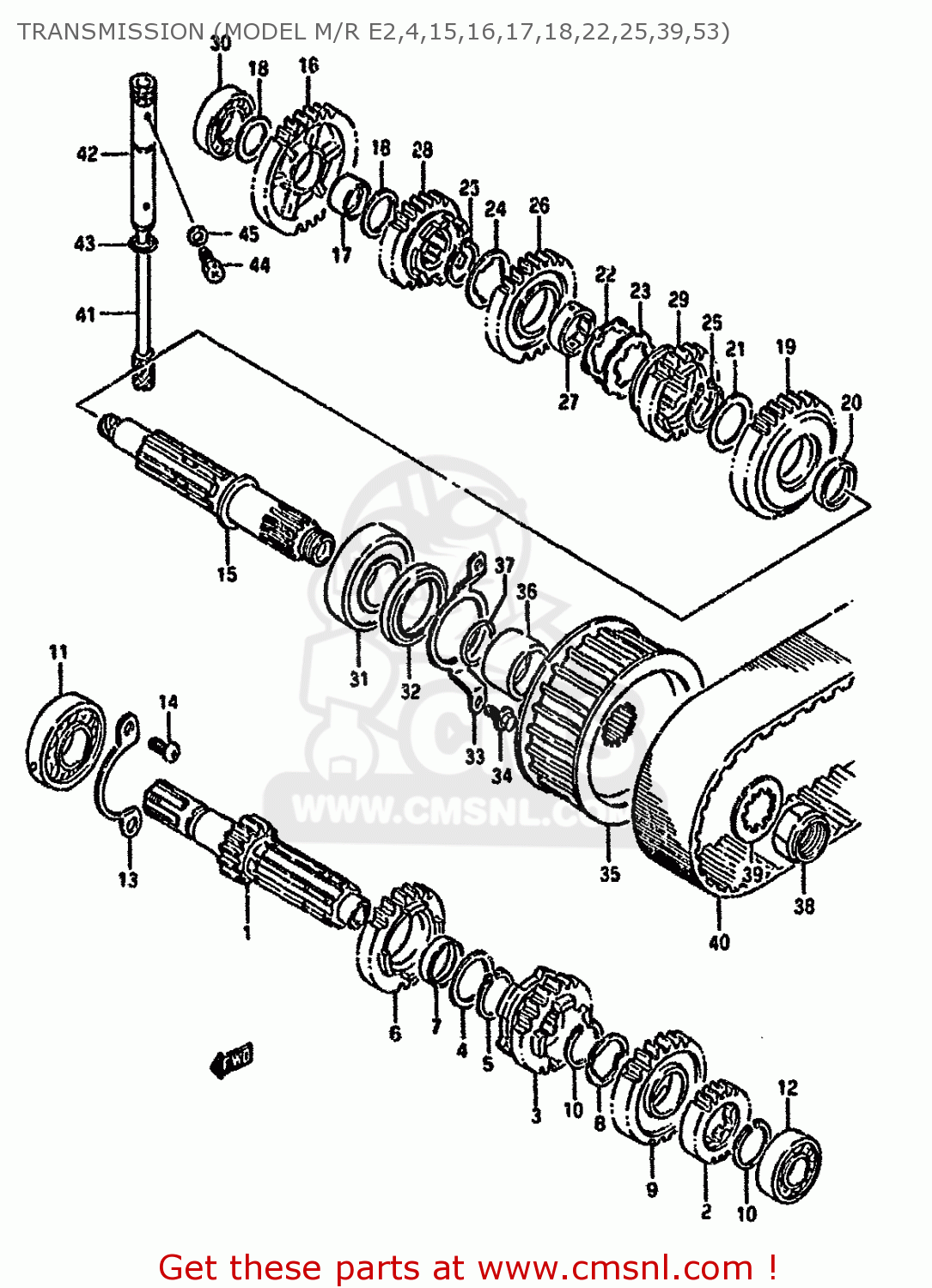

Transmission (model m/r e2,4,15,16,17,18,22,25,39,53) diagram LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)

TRANSMISSION (MODEL M/R E2,4,15,16,17,18,22,25,39,53) LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)
TRANSMISSION (MODEL M/R E2,4,15,16,17,18,22,25,39,53) LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)
TRANSMISSION (MODEL M/R E2,4,15,16,17,18,22,25,39,53) LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1
2412124B11
ref: 1
SHAFT,COUNTER
2412124B11
€ 173.50
2
2422124B11
ref: 2
GEAR,SECOND DRIVE
2422124B11
€ 73.00
3
2423124B11
ref: 3
GEAR,THIRD DRIVE
2423124B11
€ 54.50
4
0821125351
ref: 4
WASHER
0821125351
€ 3.00
5
0938025003
ref: 5
RING,SNAP
0938025003
€ 3.00
6
2424124B11
ref: 6
GEAR,4TH DRIVE
2424124B11
€ 73.50
7
0930025023
ref: 7
BUSHING 25X29X10
€ 9.50
8
0916725012
ref: 8
WASHER,LOCK
0916725012
€ 3.50
9
2425124B12
ref: 9
GEAR,FIFTH DRIVE
€ 82.00
10
0938025010
ref: 10
CIRCLIP
0938025010
€ 3.00
11
0926222014
ref: 11
BEARING
0926222014
€ 59.50
12
0926217027
ref: 12
BEARING(17X40X12)
0926217027
€ 25.00
13
2474124B00
ref: 13
RETAINER,CNTR SHAFT BEARING
2474124B00
€ 6.00
14
0211206126
ref: 14
SCREW
0211206126
€ 1.50
15
2413024B11
ref: 15
SHAFT COMP,DRIVE
€ 161.50
16
2431124B11
ref: 16
GEAR,1ST DRIVEN(NT:35)
€ 100.50
17
0930020032
ref: 17
BUSH(20X24X13)
0930020032
€ 10.00
18
0821120301
ref: 18
WASHER
0821120301
€ 3.00
19
2432124B12
ref: 19
GEAR,SECOND DRIVEN
€ 85.50
20
0930025020
ref: 20
BUSH(25X29X8)
0930025020
€ 10.00
21
0821125351
ref: 21
WASHER
0821125351
€ 3.00
22
0916925001
ref: 22
WASHER
0916925001
€ 2.00
23
0916725013
ref: 23
WASHER,LOCK
0916725013
€ 2.50
24
0916725016
ref: 24
WASHER,LOCK
0916725016
€ 3.00
25
0938025003
ref: 25
RING,SNAP
0938025003
€ 3.00
26
2433124B11
ref: 26
GEAR,THIRD DRIVEN
€ 82.00
27
2433224500
ref: 27
BUSHING
2433224500
€ 9.50
28
2434124B11
ref: 28
GEAR,FOURTH DRIVEN
€ 82.00
29
2435124B12
ref: 29
GEAR,FIFTH DRIVEN
2435124B12
€ 86.50
30
0926220086
ref: 30
BALL BEARING 20X42X12
€ 20.50
31
0926225083
ref: 31
BALL BEARING 25X62X17
0926225083
€ 49.00
32
0928336003
ref: 32
SEAL,OIL(36X50X6)
0928336003
€ 12.00
33
2475124B00
ref: 33
RETAINER,DRIVE SHAFT OIL SEAL
2475124B00
€ 4.50
34
0154706127
ref: 34
BOLT
0154706127
€ 2.00
35
2751024B01
ref: 35
PULLEY,FR
2751024B01
€ 81.50
36
2753124B00
ref: 36
SPACER,FR PULLEY
2753124B00
€ 18.50
37
0928024008
ref: 37
O-RING
€ 5.50
38
0915920004
ref: 38
NUT
0915920004
€ 12.00
39
0916725014
ref: 39
WASHER
0916725014
€ 2.50
40
2761124B00133
ref: 40
BELT,DRIVE
2761124B00133
€ 416.50
41
2613124B00
ref: 41
GEAR,SPEEDOMETER DRIVEN
2613124B00
€ 21.50
42
2648124B01
ref: 42
SLEEVE,TACHOMETER DRIVEN GEAR
2648124B01
€ 28.50
43
0928010001
ref: 43
O RING(D:1.3,ID:9.6)
0928010001
€ 2.00
44
0913506002
ref: 44
BOLT
0913506002
€ 2.50
45
0916806004
ref: 45
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
