FRONT WHEEL

LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)

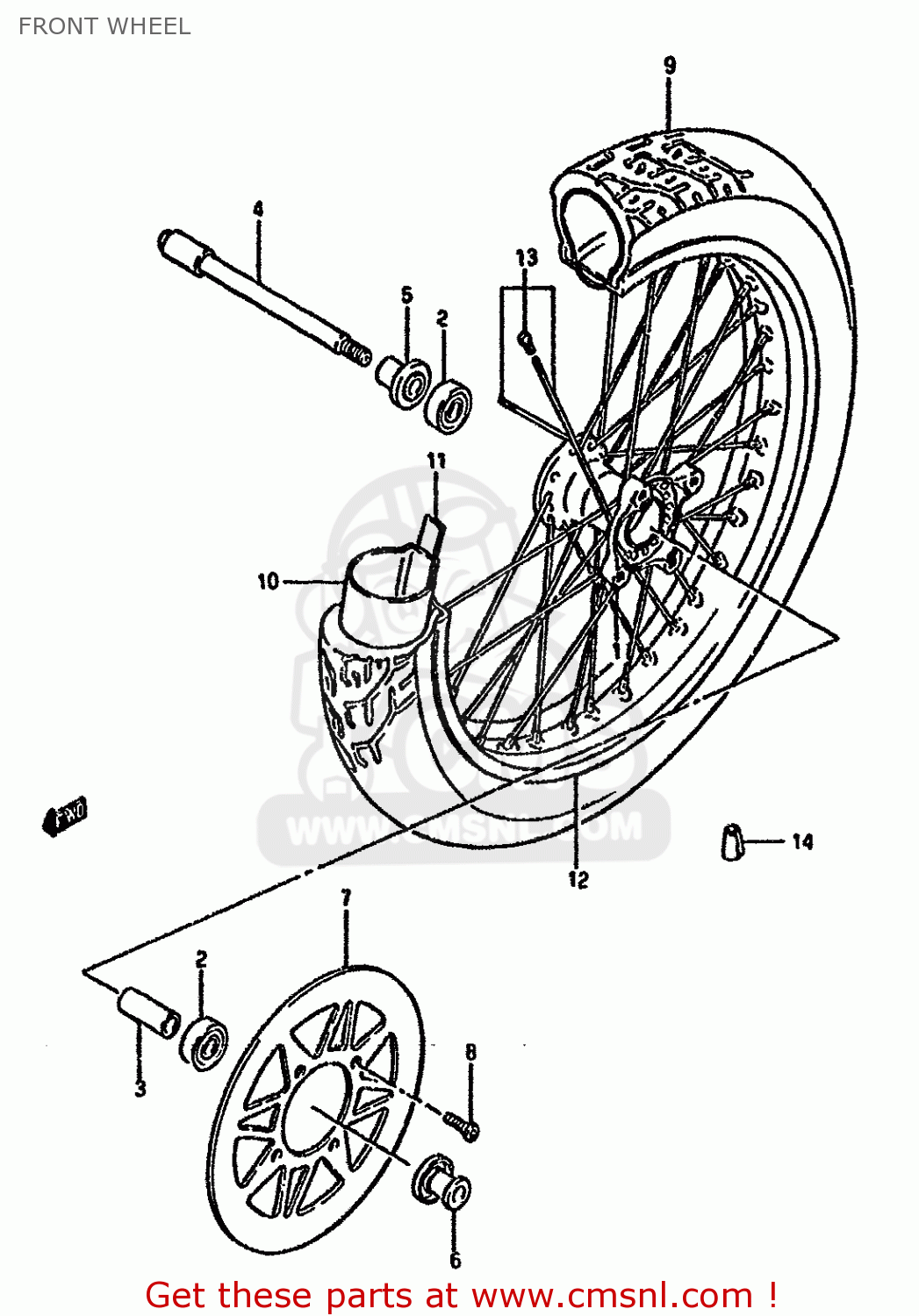

Front wheel diagram LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)

FRONT WHEEL LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)

FRONT WHEEL LS650F 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1

5411124B01
ref: 1

HUB,FR WHEEL

€ 172.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015074
ref: 3

SPACER(15.3X21.7X56)

€ 8.50

4

5471124B01
ref: 4

AXLE,FR

€ 38.50

5

5474024B00
ref: 5

SPACER,FR AXLE,R

€ 12.00

6

5475024B00
ref: 6

SPACER,FR AXLE,L

€ 12.00

7

5921124B00
ref: 7

DISC,FR BRAKE

€ 232.50

8

0910608049
ref: 8

BOLT(8X25.5)

€ 4.00

9-1

5510024B00
ref: 9-1
MODEL G/J

TIRE,FRONT

€ 92.50

9-2

5510024B01
ref: 9-2
MODEL K/L/M/R

TIRE,FRONT 100/90-19.5

€ 92.50

10-1

5520015030
ref: 10-1
MODEL G

TUBE,INNER

€ 41.00

10-2

5520044610
ref: 10-2
MODEL J/K/L/M/R

TUBE

€ 41.00

11

5526115010
ref: 11

PROTECTOR,WHL INR TUBE

€ 2.50

12

5531124B00
ref: 12

RIM,FR WHEEL WM(2.15X19)

€ 250.00

13

5532024B00
ref: 13

SPOKE SET,FRONT

€ 38.50

14-1

5541238A00
ref: 14-1

BALANCER,WHEEL

€ 6.50

14-2

5541338A00
ref: 14-2

BALANCER,WHEEL (30G)

€ 8.00
