BATTERY
LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)

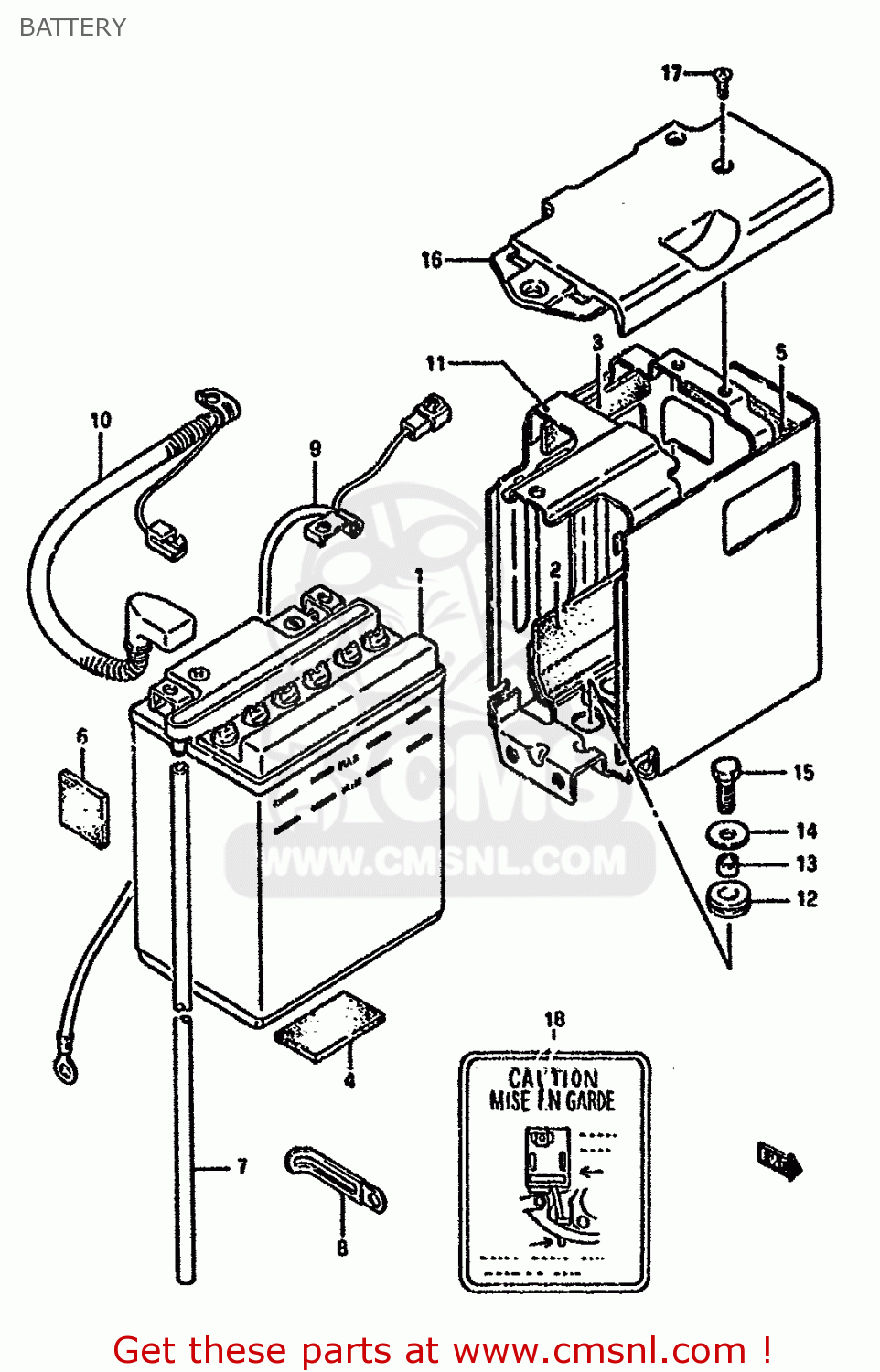

Battery diagram LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)
BATTERY LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3361005A10
ref: 1
BATTERY(YB14L-B2,12V14.7AH)
€ 46.00
2
3365137000
ref: 2
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
3
3365229100
ref: 3
PROTECTOR,20X9
€ 5.00
4
3365236000
ref: 4
33651-37000
CUSHION(30X50X3)
€ 5.00
5
3365238A10
ref: 5
PROTECTOR(20X90)X2
€ 4.50
6
3365224B00
ref: 6
PROTECTOR,BATTERY
€ 2.50
7
3368016A10
ref: 7
HOSE,BATTERY EXHAUST(L:780)
€ 4.50
8
0940406422
ref: 8
CLAMP
€ 2.50
9
3386024B00
ref: 9
WIRE,BATTERY MINUS
€ 12.00
10
3387024B00
ref: 10
WIRE,BATTERY PLUS LEAD
€ 12.50
11
4154024B00
ref: 11
HOLDER COMP,BATTERY
€ 87.50
12
0932008021
ref: 12
CUSHION
€ 4.00
13
0918006111
ref: 13
SPACER
€ 3.50
14
0916006060
ref: 14
WASHER
€ 2.00
15-1
0912806005
ref: 15-1
SCREW
€ 2.50
15-2
0912806030
ref: 15-2
SCREW(6X20)
€ 0.00
16
4157624B01
ref: 16
COVER,BATTERY
€ 20.00
17
0214204107
ref: 17
SCREW
€ 1.50
18
3369024B60
ref: 18
MODEL R
PLATE,BATTERY CAUTION
€ 3.00
