FUEL COCK

LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)

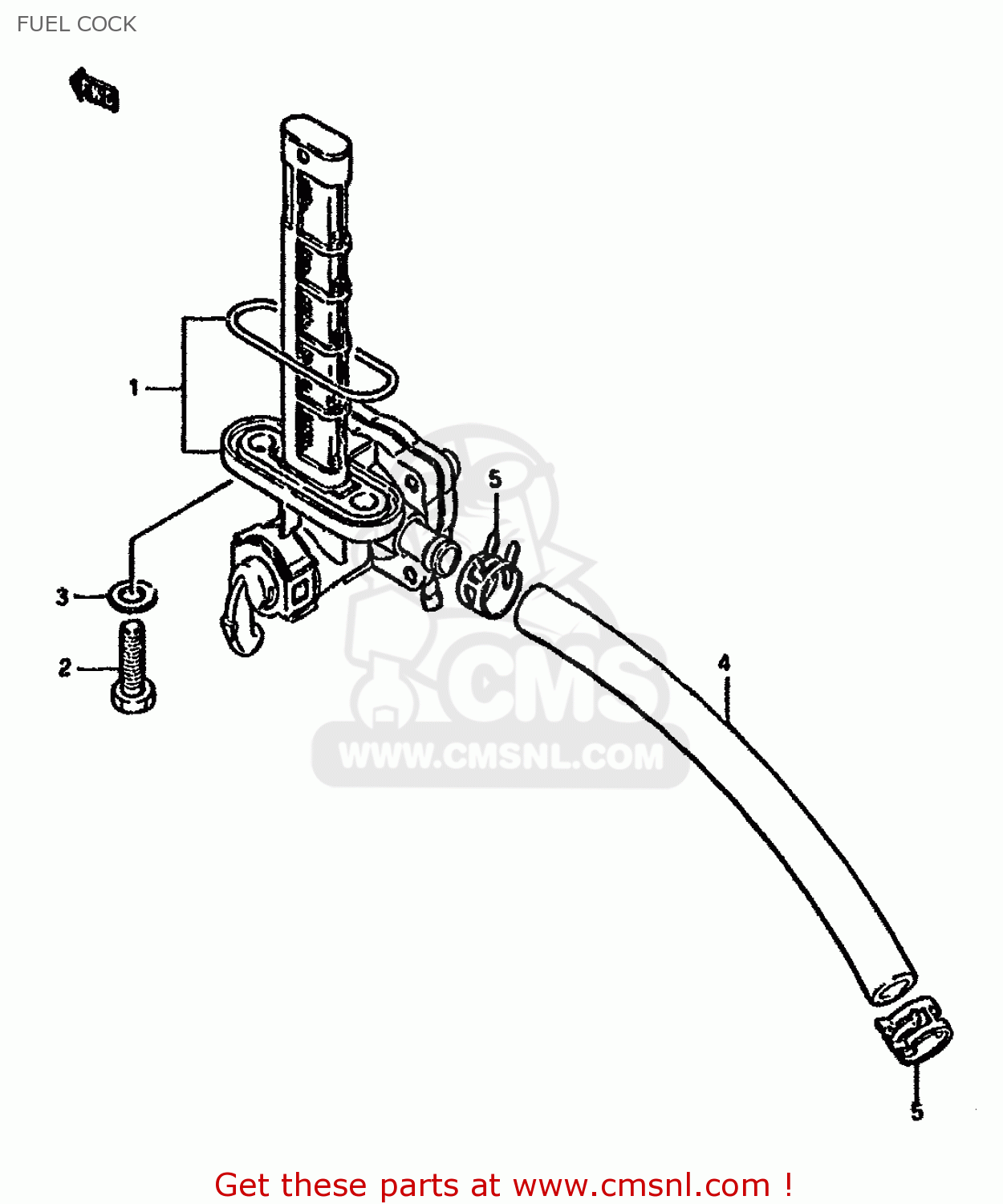

Fuel cock diagram LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)

prices are in EUR

ref

part #

description

quantity

4430024B00
ref: 1

COCK ASSY,FUEL

€ 92.00

2-1

0912806057
ref: 2-1
MODEL G/J

BOLT(6X20)

€ 2.00

2-2

0912806006
ref: 2-2
MODEL K/L/M/R

BOLT(6X20)

€ 2.00

3-1

0916806026
ref: 3-1

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

3-2

0916806023
ref: 3-2
E17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

4-1

0934307195
ref: 4-1
MODEL G/J

HOSE

€ 26.00

4-2

0935470123300
ref: 4-2
MODEL K/L/M/R

HOSE (7X12X300)

€ 26.00

0940112406
ref: 5

CLAMP

€ 2.50
