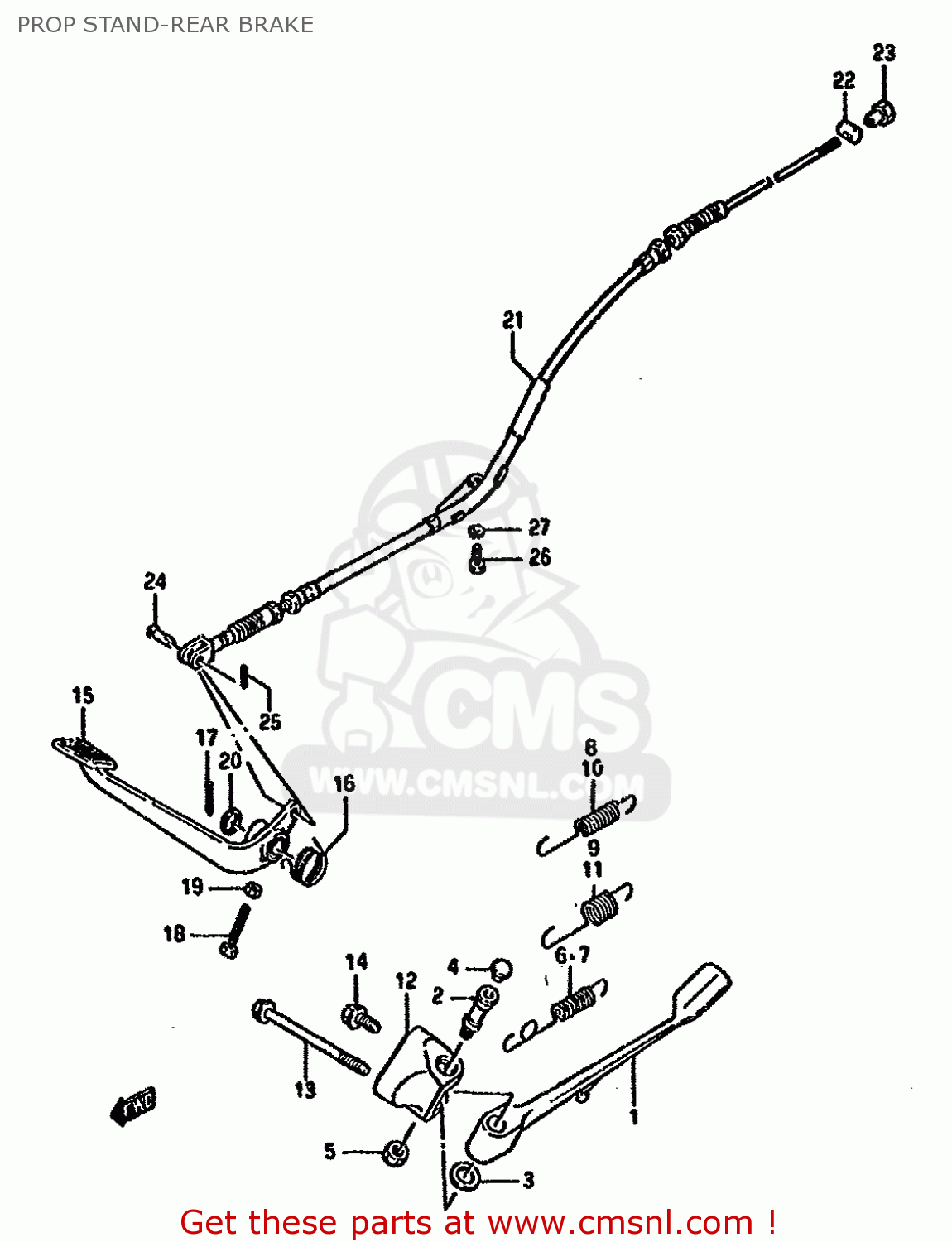

PROP STAND-REAR BRAKE

ref

part #

description

quantity

1-1

4231138A10
ref: 1-1
MODEL G

STAND,PROP

€ 64.00

1-2

4231024B00
ref: 1-2
MODEL J/K/L/M/R

STAND,PROP

€ 92.00

2-1

4234138A00
ref: 2-1
MODEL G

BOLT,PROP STAND

€ 9.00

2-2

4234138B01
ref: 2-2
MODEL J/K/L/M/R

BOLT,PROP STAND

€ 9.00

3

0822115245
ref: 3

THRUST WASHER

€ 2.50

4

4357524B00
ref: 4

CAP,PROP STAND BOLT

€ 7.00

5-1

0831022107
ref: 5-1
MODEL G/J/K/L/M

NUT

€ 2.50

5-2

0914010044
ref: 5-2
MODEL R

NUT

€ 2.50

6

0944315033
ref: 6
MODEL G

SPRING

€ 6.00

7

0944315027
ref: 7
MODEL G E4,E17,E21,E

SPRING

€ 7.00

8

0944315034
ref: 8
MODEL J/K/L/M/R

SPRING

€ 18.50

9

0944318020
ref: 9
MODEL J/K/L/M/R

SPRING

€ 18.00

10

0944318018
ref: 10
MODEL G E22

SPRING

€ 7.50

11

0944316016
ref: 11
MODEL G E22

SPRING

€ 7.50

12

4233124B00
ref: 12
MODEL G

BRACKET,PROP STAND

€ 61.00

13

0910310087
ref: 13

BOLT(10X105)

€ 6.50

14

0151710208
ref: 14
MODEL G

BOLT 10X25

€ 2.50

15-1

4311024B01
ref: 15-1
MODEL G/J/K/L/M

PEDAL,BRAKE

€ 58.50

15-2

4311024B10
ref: 15-2
E77,E16,MODEL K/M E1

PEDAL,BRAKE

€ 58.50

16

0944832017
ref: 16

SPRING

€ 23.00

17

0411130308
ref: 17

COTTER PIN

€ 1.50

18

0910006133
ref: 18

BOLT

€ 1.50

19

0831011067
ref: 19

NUT 6MM

€ 2.50

20

0916016015
ref: 20

WASHER (16.5X42X2.6)

€ 2.00

21-1

5851024B00
ref: 21-1
MODEL G/J

CABLE COMP,REAR BRAKE

€ 73.00

21-2

5851024B10
ref: 21-2
MODEL K/L/M/R

CABLE,RR BRAKE

€ 73.00

22

0920913005
ref: 22

PIN

€ 3.50

23

0915006009
ref: 23

NUT (6MM)

€ 3.50

24

0920005001
ref: 24

PIN(L:17.5)

€ 1.50

25

0411120158
ref: 25

PIN

€ 1.50

26

0110706165
ref: 26

BOLT 6X16

€ 2.00

27

0832121064
ref: 27

WASHER,LOCK

€ 2.00
